TE Connectivity 1-1634219-2 D-Sub Plug 15 Position Equivalent & Substitute Parts

Part Overview

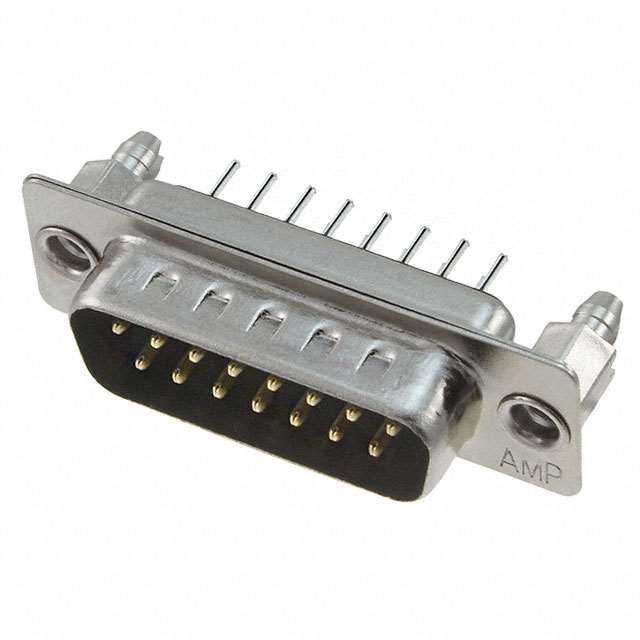

The TE Connectivity 1-1634219-2 is a 15 Position D-Sub Plug connector with vertical solder termination, manufactured as part of the AMPLIMITE HD-20 series. This connector features male pins, through-hole mounting, and a 2-row shell configuration (DA, A layout). The part is currently classified as obsolete, making equivalent and substitute parts necessary for ongoing system maintenance, repairs, and new designs requiring compatible D-Sub connector solutions.

Key Parameters

Parameter	Value
Manufacturer Part Number	1-1634219-2
Manufacturer	TE Connectivity AMP Connectors
Category	D-Sub, D-Shaped Connectors
Connector Type	Plug, Male Pins
Number of Positions	15
Number of Rows	2
Shell Size, Connector Layout	2 (DA, A)
Mounting Type	Through Hole
Termination	Solder
Voltage Rating	250V
Current Rating	3A
Operating Temperature Range	-55°C ~ 105°C
Shell Material, Finish	Steel, Nickel Plated
Contact Finish	Gold
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant
Product Status	Obsolete

Substitute Part Grouping Explanation

Substitution of the TE Connectivity 1-1634219-2 is determined by strict alignment of the following critical parameters:

Primary Compatibility Criteria:

Connector Type: Plug, Male Pins
Number of Positions: 15
Number of Rows: 2
Shell Size, Connector Layout: 2 (DA, A)
Mounting Type: Through Hole
Termination: Solder
Connector Style: D-Sub

Secondary Compatibility Parameters:

Voltage Rating: 250V or higher
Current Rating: 1.5A or higher
Operating Temperature Range: Must encompass or exceed -55°C ~ 105°C
Material Flammability Rating: UL94 V-0
RoHS Status: ROHS3 Compliant

Substitute parts are grouped into two categories:

Direct Substitutes (Functionally Equivalent): Parts meeting all primary and secondary compatibility criteria with minimal parameter variance.

Similar Substitutes (Functionally Compatible with Parameter Differences): Parts meeting all primary compatibility criteria but with variations in secondary parameters such as shell finish, contact material, or flange feature type. These parts are suitable for applications where the parameter differences do not impact system performance.

Parameter Comparison

Parameter	1-1634219-2 (Main)	2301828-1	09642227215	09642227235	172-015-112R911	D15P34A4GX00LF	DA15-PT-1-BL
Manufacturer	TE Connectivity	TE Connectivity	HARTING	HARTING	NorComp Inc.	Amphenol ICC (FCI)	Adam Tech
Connector Type	Plug, Male Pins	Plug, Male Pins	Plug, Male Pins	Plug, Male Pins	Plug, Male Pins	Plug, Male Pins	Plug, Male Pins
Number of Positions	15	15	15	15	15	15	15
Number of Rows	2	2	2	2	2	2	2
Shell Size, Connector Layout	2 (DA, A)	2 (DA, A)	2 (DA, A)	2 (DA, A)	2 (DA, A)	2 (DA, A)	2 (DA, A)
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Panel Mount, Through Hole	Through Hole	Through Hole
Termination	Solder	Solder	Solder	Solder	Solder	Solder	Solder
Voltage Rating	250V	250V	100V	100V	Not Specified	300V	250VAC
Current Rating	3A	1.5A	7.5A	7.5A	5A	5A	3A
Operating Temperature Range	-55°C ~ 105°C	-55°C ~ 105°C	-20°C ~ 125°C	-20°C ~ 125°C	-50°C ~ 100°C	-55°C ~ 125°C	Not Specified
Shell Material, Finish	Steel, Nickel Plated	Steel, Tin-Nickel Plated	Steel, Tin Plated	Steel	Steel, Tin Plated	Steel, Tin Plated	Steel, Tin Plated
Contact Finish	Gold	Gold	Not Specified	Not Specified	Gold	Gold	Gold
Contact Material	Brass	Brass	Copper Alloy	Copper Alloy	Brass	Phosphor Bronze	Copper Alloy
Material Flammability Rating	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0
RoHS Status	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	RoHS Compliant	ROHS3 Compliant
Product Status	Obsolete	Active	Active	Active	Obsolete	Active	Active
Flange Feature	Housing/Shell (4-40)	Board Side (4-40)	Board Side (4-40)	Board Side (4-40)	Board Side (4-40); Mating Side, Female Screwlock (4-40)	Housing/Shell (4-40)	Board Side (4-40)

Engineering Selection Recommendations

Direct Substitute - Highest Compatibility:

TE Connectivity 2301828-1 is the primary direct substitute for the 1-1634219-2. Both parts are manufactured by TE Connectivity, share identical connector specifications (15 positions, 2 rows, DA/A layout, through-hole solder termination), and maintain the same voltage rating (250V) and operating temperature range (-55°C ~ 105°C). The 2301828-1 is currently in active production status, ensuring long-term availability. The primary difference is a reduced current rating (1.5A versus 3A) and dielectric material composition (PBT Glass Filled versus Thermoplastic). The 2301828-1 is suitable for applications where the 1.5A current rating meets system requirements.

Compatible Substitutes - Functional Equivalence with Parameter Variance:

Amphenol ICC D15P34A4GX00LF provides functional equivalence with enhanced specifications. This part maintains all primary compatibility criteria and exceeds the voltage rating (300V versus 250V) and operating temperature range (-55°C ~ 125°C versus -55°C ~ 105°C). The current rating is 5A, exceeding the main part's 3A specification. The D15P34A4GX00LF is currently in active production status. The flange feature matches the main part (Housing/Shell 4-40), and contact finish is gold. This part is suitable for applications requiring higher voltage or temperature performance margins.

Adam Tech DA15-PT-1-BL provides functional equivalence with matching current rating (3A) and voltage specification (250VAC). This part is currently in active production status and maintains all primary compatibility criteria. The flange feature differs (Board Side versus Housing/Shell), and the dielectric material is PBT Glass Filled. This part is suitable for applications where board-side mounting is acceptable.

HARTING 09642227215 and 09642227235 provide functional compatibility with enhanced current ratings (7.5A) and extended operating temperature range (-20°C ~ 125°C). Both parts are currently in active production status. The voltage rating is reduced to 100V, which may limit application scope. These parts are suitable for applications requiring higher current capacity and extended temperature performance where the 100V voltage rating is sufficient.

NorComp 172-015-112R911 provides functional compatibility with 5A current rating and panel mount capability. This part is currently classified as obsolete. The operating temperature range is -50°C ~ 100°C, which is narrower than the main part. This part is suitable for legacy system maintenance where panel mounting is required.

Selection Criteria Summary:

For direct replacement with active production status and identical specifications: TE Connectivity 2301828-1
For enhanced voltage and temperature performance: Amphenol ICC D15P34A4GX00LF
For matching current rating with active production: Adam Tech DA15-PT-1-BL
For high current applications: HARTING 09642227215 or 09642227235
For legacy systems requiring panel mount: NorComp 172-015-112R911

Frequently Asked Questions (FAQ)

Q: Can the TE Connectivity 2301828-1 directly replace the 1-1634219-2 in all applications?

A: The 2301828-1 is a direct substitute for applications where the current rating of 1.5A meets system requirements. Both parts share identical connector geometry, voltage rating (250V), operating temperature range (-55°C ~ 105°C), and solder termination. If the application requires the full 3A current rating of the original part, the 2301828-1 is not suitable. Verify the actual current draw of your application before substitution.

Q: What is the difference between Housing/Shell flange and Board Side flange features?

A: Housing/Shell flange (4-40) mounting attaches the connector to the housing or enclosure shell. Board Side flange (4-40) mounting attaches the connector directly to the printed circuit board. The main part 1-1634219-2 uses Housing/Shell mounting. Substitutes with Board Side mounting (2301828-1, DA15-PT-1-BL, HARTING parts, 172-015-112R911) require different mounting hole patterns on the PCB. Verify your PCB design accommodates the flange feature of the selected substitute.

Q: Are all substitute parts RoHS compliant?

A: All substitute parts listed are RoHS compliant. The main part 1-1634219-2 and most substitutes are ROHS3 compliant. The Amphenol ICC D15P34A4GX00LF is RoHS compliant. All parts meet environmental compliance requirements for modern manufacturing and assembly processes.

Q: Which substitute offers the best performance margin for voltage and temperature?

A: The Amphenol ICC D15P34A4GX00LF provides the highest performance margins with a 300V voltage rating (versus 250V) and operating temperature range of -55°C ~ 125°C (versus -55°C ~ 105°C). This part is currently in active production status and is suitable for applications requiring enhanced environmental performance specifications.

Q: Can I use a substitute with a higher current rating than the original part?

A: Yes. Substitutes with higher current ratings (HARTING 09642227215 and 09642227235 at 7.5A, NorComp 172-015-112R911 at 5A, Amphenol ICC D15P34A4GX00LF at 5A) are suitable for the original application. Higher current ratings provide additional design margin and do not negatively impact applications designed for lower current. Verify that the voltage rating and operating temperature range of the substitute meet your application requirements.

Q: What is the significance of contact material differences (Brass, Copper Alloy, Phosphor Bronze)?

A: Contact material affects electrical conductivity, corrosion resistance, and mechanical durability. The main part uses Brass contacts with gold finish. Substitutes use Brass (2301828-1, 172-015-112R911), Copper Alloy (09642227215, 09642227235, DA15-PT-1-BL), or Phosphor Bronze (D15P34A4GX00LF). All materials are suitable for D-Sub connector applications. Contact finish (gold or unspecified) provides additional corrosion protection. Material selection does not affect basic connector compatibility.

Q: Why is the NorComp 172-015-112R911 listed as obsolete?

A: The NorComp 172-015-112R911 is classified as obsolete, indicating it is no longer in active production. This part is available from existing inventory but future availability is not guaranteed. For new designs or long-term production requirements, select from active production substitutes: TE Connectivity 2301828-1, HARTING 09642227215 or 09642227235, Amphenol ICC D15P34A4GX00LF, or Adam Tech DA15-PT-1-BL.

Q: What packaging options are available for substitute parts?

A: Substitute parts are available in different packaging formats: Tray (2301828-1, 172-015-112R911, D15P34A4GX00LF, DA15-PT-1-BL) and Bulk (09642227215, 09642227235). Tray packaging is suitable for automated assembly and component handling. Bulk packaging is suitable for high-volume applications. Verify packaging compatibility with your assembly process and component handling requirements.

Q: Are there any REACH or ECCN compliance differences between the main part and substitutes?

A: The main part 1-1634219-2 is REACH Affected and classified as EAR99. Most substitutes share identical REACH and ECCN classifications. The HARTING parts (09642227215, 09642227235) are REACH Unaffected. The NorComp 172-015-112R911 is REACH Unaffected. For applications subject to export control or chemical substance regulations, verify the specific REACH and ECCN status of your selected substitute.
