TE Connectivity 1-1546220-0 Terminal Block Equivalent & Substitute Parts

Part Overview

The TE Connectivity 1-1546220-0 is a 10-position wire-to-board terminal block from the Buchanan series, designed for through-hole PCB mounting with a 35° mating angle and 5.08mm pitch. This component features screw-rising cage clamp termination and supports wire gauges from 12 to 30 AWG at 17.5A and 300V ratings.

The 1-1546220-0 carries an obsolete product status. Equivalent substitute parts are available in active production status with identical electrical and mechanical specifications, offering improved availability and compliance certifications for new designs and production requirements.

Key Parameters

Parameter	Specification
Positions	10
Pitch	0.200" (5.08mm)
Mating Orientation	35° (145°) Angle with Board
Current Rating	17.5 A
Voltage Rating	300 V
Wire Gauge	12-30 AWG
Mounting Type	Through Hole
Wire Termination	Screw - Rising Cage Clamp
Operating Temperature	-40°C ~ 105°C
Housing Material	Polyamide (PA66), Nylon 6/6
Contact Material - Plating	Brass - Tin Plated
Screw Thread	M3
Torque - Screw	0.79 Nm (7.0 Lb-In)

Substitute Part Grouping Explanation

Substitute parts for the 1-1546220-0 are qualified based on matching the following critical parameters:

10-position configuration with 0.200" (5.08mm) pitch
35° (145°) mating angle with board
17.5A current and 300V voltage ratings
12-30 AWG wire gauge compatibility
Through-hole mounting with screw-rising cage clamp termination
M3 screw thread and 0.79 Nm torque specification
Polyamide (PA66) housing material
Brass-tin plated contacts and brass-nickel plated clamp/screw materials

The substitute parts 1-1546074-0 and 1-282847-0 meet all electrical and mechanical requirements for direct substitution. Differences are limited to housing color and product compliance status, which do not affect functional performance or PCB compatibility.

Parameter Comparison

Parameter	1-1546220-0 (Main)	1-1546074-0 (Substitute)	1-282847-0 (Substitute)
Manufacturer	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors
Series	Buchanan	Buchanan	Buchanan
Positions	10	10	10
Pitch	0.200" (5.08mm)	0.200" (5.08mm)	0.200" (5.08mm)
Mating Orientation	35° (145°)	35° (145°)	35° (145°)
Current Rating	17.5 A	17.5 A	17.5 A
Voltage Rating	300 V	300 V	300 V
Wire Gauge	12-30 AWG	12-30 AWG	12-30 AWG
Mounting Type	Through Hole	Through Hole	Through Hole
Wire Termination	Screw - Rising Cage Clamp	Screw - Rising Cage Clamp	Screw - Rising Cage Clamp
Housing Material	Polyamide (PA66)	Polyamide (PA66)	Polyamide (PA66)
Contact Material - Plating	Brass - Tin Plated	Brass - Tin Plated	Brass - Tin Plated
Clamp Material - Plating	Brass - Nickel Plated	Brass - Nickel Plated	Brass - Nickel Plated
Screw Material - Plating	Brass - Nickel Plated	Brass - Nickel Plated	Brass - Nickel Plated
Screw Thread	M3	M3	M3
Torque - Screw	0.79 Nm (7.0 Lb-In)	0.79 Nm (7.0 Lb-In)	0.79 Nm (7.0 Lb-In)
Housing Color	Gray	Black	Green
Product Status	Obsolete	Active	Active
RoHS Status	Not applicable	ROHS3 Compliant	ROHS3 Compliant
REACH Status	Vendor Undefined	REACH Affected	REACH Affected
MSL Rating	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)

Engineering Selection Recommendations

The 1-1546220-0 is classified as obsolete and carries undefined RoHS and REACH compliance status. For new designs and ongoing production, the substitute parts 1-1546074-0 and 1-282847-0 are recommended based on the following factors:

1-1546074-0 is the primary substitute. It maintains active product status with full ROHS3 compliance and REACH affected designation. This part is suitable for applications requiring regulatory compliance documentation and long-term supply chain stability.

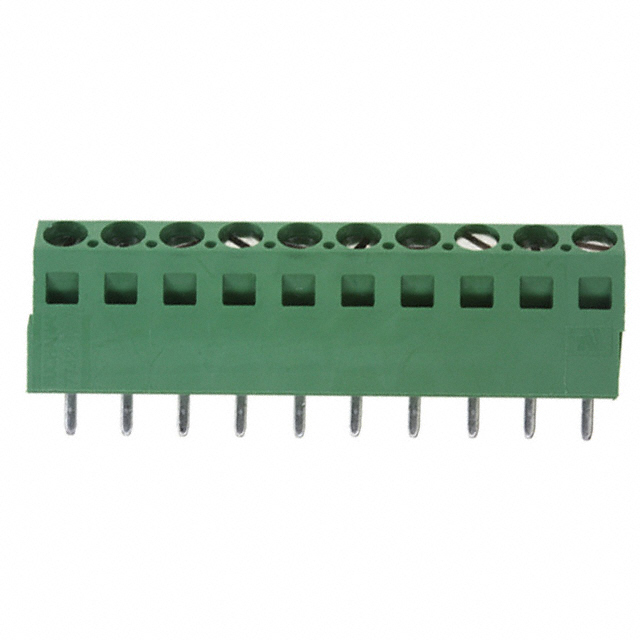

1-282847-0 is an alternative substitute with identical electrical and mechanical specifications. It also carries active product status and ROHS3 compliance. This part provides an additional sourcing option with equivalent performance characteristics.

Both substitute parts are functionally interchangeable with the 1-1546220-0 across all electrical parameters, mechanical dimensions, and mounting requirements. The selection between 1-1546074-0 and 1-282847-0 depends on color preference, packaging requirements, and supplier availability, as these are the only differentiating factors.

Frequently Asked Questions (FAQ)

Q: Can 1-1546074-0 or 1-282847-0 be used as direct replacements for 1-1546220-0 in existing designs?

A: Yes. Both substitute parts are electrically and mechanically identical to the 1-1546220-0. They feature the same 10-position configuration, 5.08mm pitch, 35° mating angle, current and voltage ratings, wire gauge compatibility, and screw termination specifications. PCB footprints and mounting hole patterns are identical.

Q: What is the difference between the three parts?

A: The 1-1546220-0, 1-1546074-0, and 1-282847-0 differ only in housing color (gray, black, and green respectively) and product status/compliance certifications. The 1-1546220-0 is obsolete with undefined compliance status. The 1-1546074-0 and 1-282847-0 are active products with ROHS3 compliance and REACH affected designation.

Q: Why is the 1-1546220-0 marked as obsolete?

A: The 1-1546220-0 has been superseded by newer variants in the Buchanan series. The substitute parts 1-1546074-0 and 1-282847-0 represent the current production equivalents with improved compliance certifications.

Q: Are there any performance differences between the substitute parts?

A: No. All three parts deliver identical electrical performance, current capacity, voltage rating, temperature range, and mechanical reliability. The only differences are cosmetic (housing color) and administrative (product status and compliance certifications).

Q: What packaging options are available?

A: The 1-1546220-0 is available in standard packaging. The substitute parts 1-1546074-0 and 1-282847-0 are supplied in bulk packaging, which is typical for active production components.

Q: Are the substitute parts compatible with the same wire gauges?

A: Yes. All three parts accept wire gauges from 12 to 30 AWG with identical screw torque specifications of 0.79 Nm (7.0 Lb-In) and M3 screw threads.

Q: Which substitute part should be selected for new designs?

A: Either 1-1546074-0 or 1-282847-0 is appropriate for new designs. Selection depends on color preference and supplier availability. Both carry active product status and full regulatory compliance certifications required for modern applications.
