Switchcraft 114BPC Equivalent & Substitute Parts

Part Overview

The Switchcraft 114BPC is a 6.35mm (0.250", 1/4") stereo headphone jack connector designed for panel mount applications with solder termination. This connector features three conductors (TRS configuration) and is part of the Hi-D® 11* series. The 114BPC remains in active production with 940 units currently in stock. Equivalent and substitute parts are identified when component availability changes, procurement lead times extend, or inventory requirements necessitate alternative sourcing from the same manufacturer's product line.

Substiute Parts

114BPC

Switchcraft Inc.In Stock: 951114BPC Datasheet

Current PartRFQ

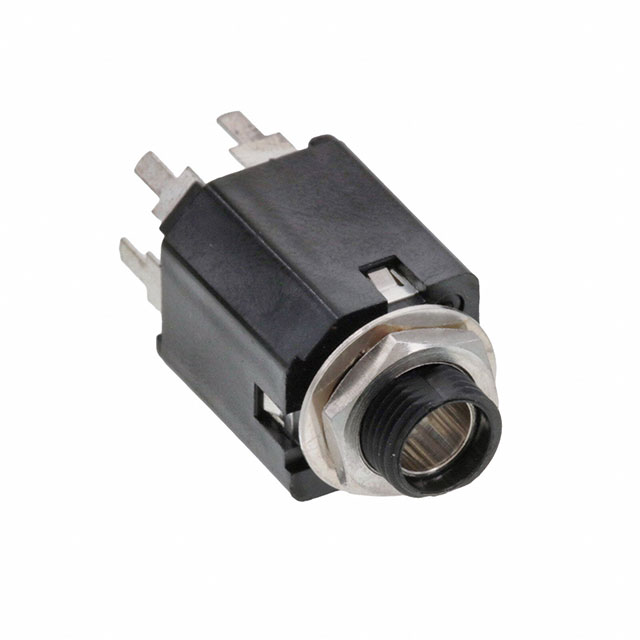

N114BPCX

Switchcraft Inc.In Stock: 1591N114BPCX Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

The N114BPCX qualifies as a direct substitute for the 114BPC based on the following critical parameters:

• Connector Type & Gender: Both are female stereo phone jacks
• Mating Diameter: Identical 6.35mm (0.250", 1/4") headphone jack specification
• Signal Configuration: Both feature stereo (3 Conductor, TRS) configuration
• Contact Count: Both provide 3 conductors with 5 total contacts
• Mounting & Termination: Both are panel mount, through hole with solder termination
• Electrical Ratings: Both rated for 48VDC and 250 mA
• Operating Temperature: Both operate across -20°C to 65°C
• Panel Interface: Identical 0.375" (9.52mm) panel hole size and 3/8"-32 thread size
• Compliance: Both are ROHS3 compliant

The primary difference is packaging: the 114BPC is supplied in standard packaging, while the N114BPCX is supplied in bulk packaging. Both are manufactured by Switchcraft Inc. and belong to the Hi-D® series (11* and NL11 variants respectively).

Parameter Comparison

Engineering Selection Recommendations

Both the 114BPC and N114BPCX are active products manufactured by Switchcraft Inc. and maintain full ROHS3 compliance. Selection between these parts should be based on procurement requirements and packaging needs:

• 114BPC: Select when standard packaging is required or when inventory of 940 units meets project demand
• N114BPCX: Select when bulk packaging is preferred or when higher inventory availability (1544 units) is advantageous for large-volume applications

Both connectors are electrically and mechanically identical, with all critical parameters—mating diameter, signal configuration, electrical ratings, operating temperature range, and panel interface dimensions—matching exactly. The choice between them does not affect circuit performance or mechanical fit.

Frequently Asked Questions (FAQ)

Q: Can the N114BPCX be used as a direct replacement for the 114BPC?

A: Yes. The N114BPCX is a direct substitute. All electrical specifications, mechanical dimensions, and contact configurations are identical. The only difference is packaging format (bulk versus standard).

Q: What determines compatibility between these two connectors?

A: Compatibility is determined by matching the following parameters: connector type (stereo phone jack), gender (female), mating diameter (6.35mm), signal configuration (3 Conductor TRS), contact count (3 conductors, 5 contacts), mounting type (panel mount, through hole), termination method (solder), electrical ratings (48VDC, 250 mA), operating temperature range (-20°C to 65°C), and panel interface dimensions (0.375" hole, 3/8"-32 thread).

Q: Does packaging affect electrical or mechanical performance?

A: No. Packaging format (standard versus bulk) does not affect connector performance, electrical characteristics, or mechanical fit. It only impacts how units are supplied and handled during procurement and assembly.

Q: Are both connectors RoHS compliant?

A: Yes. Both the 114BPC and N114BPCX are ROHS3 compliant and meet current environmental regulations.

Q: What is the panel hole size requirement for installation?

A: Both connectors require a 0.375" (9.52mm) panel hole with 3/8"-32 threading for secure panel mount installation.
