TE Connectivity AMP Connectors 1-1470201-6 Equivalent & Substitute Parts

Part Overview

The TE Connectivity AMP Connectors 1-1470201-6 is a 16-position rectangular connector receptacle housing designed for High Performance Interconnect (HPI) applications. This component features a 2.00mm pitch and is configured as a free-hanging, in-line receptacle with female socket contacts. The part is classified as Active product status and is RoHS Compliant with MSL 1 (Unlimited) moisture sensitivity rating.

Substitute parts are identified when equivalent electrical and mechanical parameters are maintained across connector housings within the same product category. Alternative part numbers may be required due to packaging availability, inventory considerations, or specific procurement requirements while maintaining full functional compatibility.

Substiute Parts

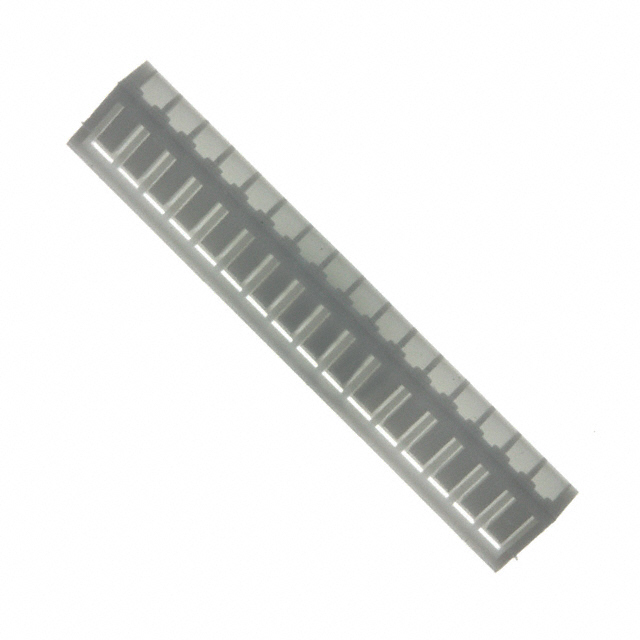

1-1470201-6

TE Connectivity AMP ConnectorsIn Stock: 12201-1470201-6 Datasheet

Current PartRFQ

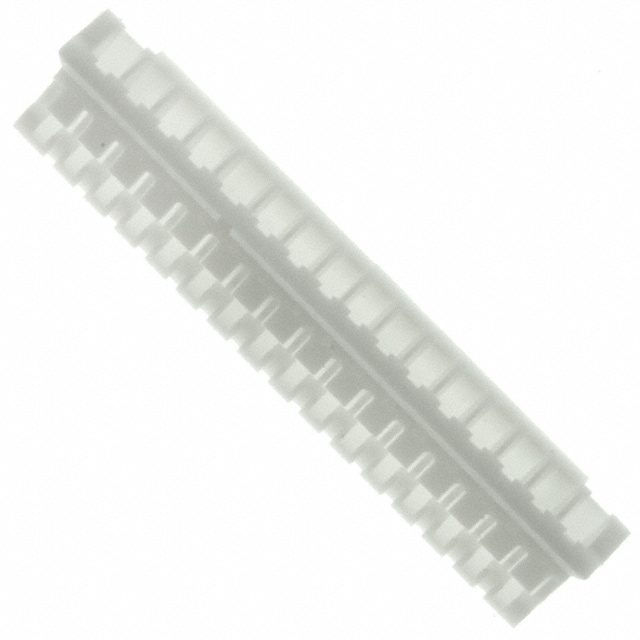

1-440129-6

TE Connectivity AMP ConnectorsIn Stock: 187111-440129-6 Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for rectangular connector housings is determined by strict equivalence across the following critical parameters:

Electrical Parameters:

• Connector type (Receptacle)
• Contact type (Female Socket)
• Number of positions (16)
• Pitch specification (0.079" / 2.00mm)
• Contact termination method (Crimp)

Mechanical Parameters:

• Number of rows (1)
• Mounting configuration (Free Hanging / In-Line)
• Insulation material (Thermoplastic)
• Housing color (Natural)

Compliance Parameters:

• RoHS Compliance status
• MSL rating (1 / Unlimited)

The substitute part 1-440129-6 maintains identical values across all critical electrical, mechanical, and compliance parameters. Differences in packaging format (Bulk versus standard packaging) and inventory availability do not affect functional interchangeability.

Parameter Comparison

Engineering Selection Recommendations

Both the primary part number 1-1470201-6 and the substitute part number 1-440129-6 are classified as Active products from TE Connectivity AMP Connectors within the High Performance Interconnect (HPI) series. Both components maintain full RoHS Compliance and carry identical MSL 1 (Unlimited) moisture sensitivity ratings, confirming equivalent environmental and regulatory qualification.

The substitute part 1-440129-6 is available in Bulk packaging format with significantly higher inventory availability (18,701 pieces in stock versus 1,162 pieces for the primary part). Selection between these two part numbers should be based on packaging requirements and procurement lead time considerations, as both components are functionally and mechanically equivalent for rectangular connector housing applications requiring 16-position, 2.00mm pitch receptacle configurations.

Frequently Asked Questions (FAQ)

Q: Are parts 1-1470201-6 and 1-440129-6 electrically interchangeable?

A: Yes. Both parts are 16-position receptacle housings with identical pitch (2.00mm), contact type (female socket), and termination method (crimp). They are electrically equivalent for all High Performance Interconnect (HPI) applications.

Q: What is the difference between these two part numbers?

A: The primary difference is packaging format. Part 1-1470201-6 is supplied in standard packaging, while part 1-440129-6 is supplied in Bulk packaging. Both maintain identical electrical and mechanical specifications.

Q: Can I use part 1-440129-6 as a direct replacement for 1-1470201-6?

A: Yes. The substitute part maintains all critical parameters including connector type, contact configuration, pitch specification, mounting type, insulation material, and compliance certifications. Direct substitution is supported for rectangular connector housing applications.

Q: Are there any operating temperature differences between these parts?

A: The main part 1-1470201-6 does not specify an operating temperature range in the provided data. The substitute part 1-440129-6 specifies -25°C to 85°C operating temperature. This specification on the substitute part does not restrict interchangeability.

Q: Do both parts require separate contact components?

A: Yes. Both part numbers are connector housings only. Contacts are not included and must be procured separately. This requirement is identical for both parts.

Q: Are both parts RoHS Compliant?

A: Yes. Both 1-1470201-6 and 1-440129-6 are RoHS Compliant with MSL 1 (Unlimited) moisture sensitivity ratings, confirming equivalent environmental qualification.

Q: Which part should I select for new designs?

A: Selection should be based on packaging requirements and inventory availability. Both parts are Active products with identical functional specifications. Part 1-440129-6 offers higher inventory availability in Bulk packaging format.
