TE Connectivity AMP Connectors 1-1470201-4 Equivalent & Substitute Parts

Part Overview

The TE Connectivity AMP Connectors 1-1470201-4 is a 14-position rectangular connector receptacle housing designed for high-performance interconnect applications. This connector operates at a 2.00mm pitch and features crimp-style female socket contacts. The part is currently Active in product status and maintains full RoHS compliance with MSL 1 rating, indicating unlimited moisture sensitivity tolerance.

Substitute parts become necessary when the primary part experiences supply constraints, extended lead times, or when design flexibility permits the use of alternative connector housings that maintain identical electrical and mechanical specifications. The 1-1470201-4 has been identified with one parametric equivalent substitute that satisfies the core dimensional and functional requirements.

Substiute Parts

1-1470201-4

TE Connectivity AMP ConnectorsIn Stock: 11351-1470201-4 Datasheet

Current PartRFQ

0510901400

MolexIn Stock: 11780510901400 Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the 1-1470201-4 is determined by strict equivalence across the following critical parameters:

Mandatory Matching Parameters:

• Number of Positions: 14
• Pitch: 0.079" (2.00mm)
• Connector Type: Receptacle
• Contact Type: Female Socket
• Number of Rows: 1
• Mounting Type: Free Hanging (In-Line)
• Contact Termination: Crimp
• Color: Natural
• Insulation Material: Thermoplastic

The Molex 0510901400 satisfies all mandatory matching parameters and qualifies as a parametric equivalent. Both parts are rectangular connector receptacle housings with identical position counts, pitch spacing, and termination methods. The substitute maintains the same functional interface for mating with corresponding male connector plugs and contact pins.

Parameter Comparison

Engineering Selection Recommendations

Primary Part: TE Connectivity 1-1470201-4

The TE Connectivity 1-1470201-4 is the recommended primary selection for new designs and ongoing production. This part maintains Active product status, ensuring long-term availability and manufacturer support. The part carries RoHS Compliant certification and MSL 1 rating, confirming compliance with environmental and moisture sensitivity standards. Current inventory of 1,082 pieces supports immediate procurement requirements.

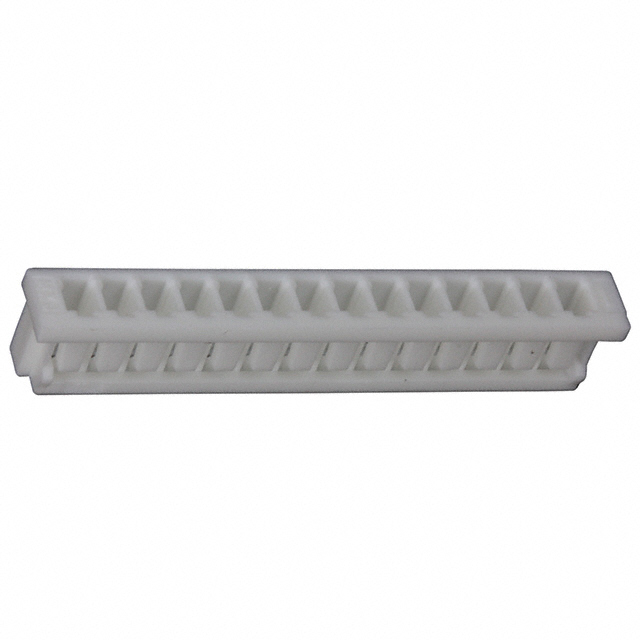

Substitute Part: Molex 0510901400

The Molex 0510901400 serves as a parametric equivalent for applications where supply of the primary part is constrained. This part matches all critical electrical and mechanical specifications, including position count, pitch, contact type, and termination method. However, the Molex part carries Obsolete product status, indicating discontinued manufacturing and limited future availability. The part is ROHS3 Compliant and maintains MSL 1 rating. Current inventory of 1,098 pieces is available, but procurement should be evaluated against long-term supply requirements.

Selection between these parts should prioritize the Active status part for new designs. The substitute is suitable for legacy system maintenance or temporary supply solutions where design flexibility permits cross-manufacturer substitution.

Frequently Asked Questions (FAQ)

Q: Can the Molex 0510901400 directly replace the TE Connectivity 1-1470201-4 in existing assemblies?

A: Yes. Both parts are 14-position receptacle housings with 2.00mm pitch, identical mounting type, and crimp termination. The mechanical and electrical interfaces are equivalent. However, the Molex part is Obsolete, so replacement should be evaluated for long-term supply viability.

Q: What is the significance of the Obsolete product status for the Molex 0510901400?

A: Obsolete status indicates the manufacturer has discontinued production. While current inventory exists, future procurement may face availability challenges. For new designs, the Active status TE Connectivity part is the appropriate selection.

Q: Are there differences in RoHS compliance between these parts?

A: The TE Connectivity part is RoHS Compliant, while the Molex part is ROHS3 Compliant. Both certifications confirm lead-free and hazardous substance restrictions compliance. ROHS3 represents a more recent revision of the standard but does not affect functional compatibility.

Q: Do both parts require separate contact pins for assembly?

A: Yes. Both the TE Connectivity 1-1470201-4 and Molex 0510901400 are connector housings only. Contacts are not included and must be procured separately. Ensure selected contacts are compatible with 2.00mm pitch crimp termination specifications.

Q: What is the MSL 1 rating, and how does it affect storage and handling?

A: MSL 1 (Moisture Sensitivity Level 1) indicates Unlimited shelf life with no special moisture control requirements during storage or handling. Both parts can be stored under standard conditions without desiccant packaging or environmental controls.

Q: Can these receptacle housings be used interchangeably with different connector series?

A: Compatibility depends on the mating male connector plug design. Both parts are 14-position, 2.00mm pitch receptacles and will accept corresponding male connectors with matching specifications. Cross-series compatibility requires verification of mechanical fit and contact alignment with the specific male connector design.
