TE Connectivity AMP Connectors 1-1470201-1 Equivalent & Substitute Parts

Part Overview

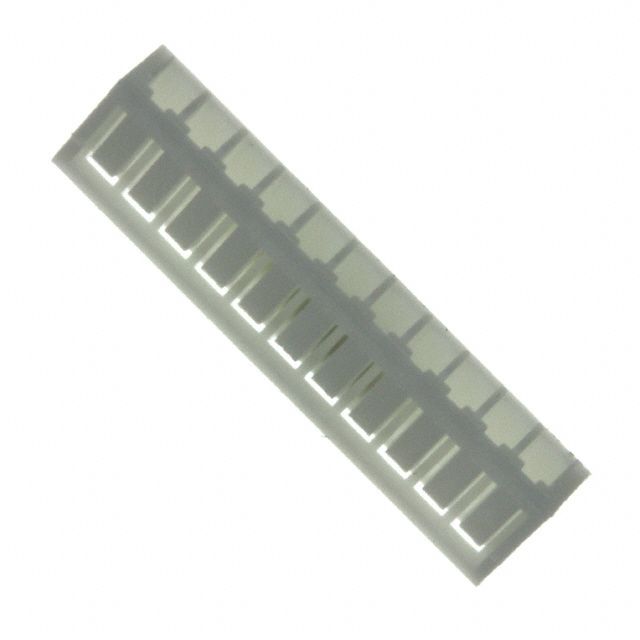

The TE Connectivity AMP Connectors 1-1470201-1 is an 11-position rectangular connector receptacle housing designed for high-performance interconnect applications. This connector features a 2.00mm pitch and is configured as a free-hanging, in-line receptacle with female socket contacts. The part is currently active in production status and is RoHS compliant with MSL 1 rating, indicating unlimited moisture sensitivity tolerance.

Substitute parts become necessary when the primary part experiences supply constraints, extended lead times, or when design flexibility permits the use of functionally equivalent alternatives from different manufacturers. The 1-1470201-1 has documented substitute availability through cross-reference compatibility.

Substiute Parts

1-1470201-1

TE Connectivity AMP ConnectorsIn Stock: 8621-1470201-1 Datasheet

Current PartRFQ

0510901100

MolexIn Stock: 10060510901100 Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the TE Connectivity 1-1470201-1 is determined by strict alignment of the following critical parameters:

Mandatory Matching Parameters:

• Connector Type: Receptacle
• Contact Type: Female Socket
• Number of Positions: 11
• Pitch: 0.079" (2.00mm)
• Number of Rows: 1
• Mounting Type: Free Hanging (In-Line)
• Contact Termination: Crimp
• Insulation Material: Thermoplastic
• Color: Natural

The Molex 0510901100 satisfies all mandatory parameters and qualifies as a parametric equivalent. Both parts are receptacle housings with identical electrical and mechanical interfaces, enabling direct functional substitution in applications where the connector housing is the specified component.

Parameter Comparison

Engineering Selection Recommendations

Primary Selection: TE Connectivity 1-1470201-1

The TE Connectivity 1-1470201-1 is the recommended primary choice for new designs and production applications. This part maintains active product status with confirmed inventory availability of 786 pieces in stock. The part carries RoHS compliance certification and operates under the High Performance Interconnect (HPI) series designation, indicating current manufacturing support and supply chain stability.

Substitute Selection: Molex 0510901100

The Molex 0510901100 serves as a parametric equivalent for applications where supply of the primary part is unavailable. This part meets all electrical and mechanical interface requirements and carries ROHS3 compliance, exceeding baseline RoHS requirements. However, the Molex part is classified as obsolete, indicating discontinued production status. While 902 pieces are currently in inventory, long-term availability cannot be assured. The Molex part is suitable for legacy system maintenance, repair operations, or temporary supply bridge applications only.

Compliance Considerations:

Both parts satisfy RoHS compliance requirements and carry MSL 1 ratings, permitting unlimited moisture exposure during storage and handling. The TE Connectivity part's active status provides superior long-term supply assurance for production environments.

Frequently Asked Questions (FAQ)

Q: Can the Molex 0510901100 be used as a direct replacement for the TE Connectivity 1-1470201-1?

A: Yes. Both parts are 11-position receptacle housings with identical pitch (2.00mm), mounting configuration (free-hanging in-line), and contact termination method (crimp). The mechanical and electrical interfaces are equivalent, enabling direct substitution at the housing level.

Q: What is the significance of the "Obsolete" product status for the Molex 0510901100?

A: Obsolete status indicates that Molex has discontinued production of this part. While current inventory exists (902 pieces), future availability is not guaranteed. This part should be used only when the primary TE Connectivity part is unavailable and immediate supply is required.

Q: Are contacts included with either housing?

A: No. Both the TE Connectivity 1-1470201-1 and Molex 0510901100 are housing-only components. Contacts must be sourced separately and are not included with these parts.

Q: What does MSL 1 (Unlimited) mean for these connectors?

A: MSL 1 rating indicates that these connector housings have unlimited moisture sensitivity tolerance. No special moisture control measures are required during storage, handling, or assembly. These parts can be stored in standard industrial environments without desiccant packaging or controlled humidity conditions.

Q: Are there packaging differences between these two parts?

A: Yes. The TE Connectivity 1-1470201-1 packaging is not specified in the available data. The Molex 0510901100 is supplied in bulk packaging. Packaging differences do not affect functional compatibility but may impact receiving, inventory management, and handling procedures.

Q: Which part should be specified for new product designs?

A: The TE Connectivity 1-1470201-1 should be specified for all new designs. This part maintains active production status, ensuring long-term supply availability and manufacturing support. The Molex part should be reserved for legacy system support or temporary supply contingencies only.
