TE Connectivity Erni 114403 Equivalent & Substitute Parts
Part Overview
The TE Connectivity Erni 114403 is a 3-position power header connector with male pins, designed for board edge mounting in through-hole, right-angle applications. This connector operates within the ERMET series and features a 2.00mm (0.079") pitch configuration with press-fit termination and gold contact finish.
The 114403 is classified as an obsolete product. Identification of equivalent and substitute parts is necessary to support ongoing maintenance, repair, and production requirements for legacy systems utilizing this connector type.
Substiute Parts
Key Parameters
| Parameter | Value |
|---|---|
| Manufacturer Part Number | 114403 |
| Manufacturer | TE Connectivity Erni |
| Category | Backplane Connectors |
| Connector Type | Header, Male Pins |
| Number of Positions | 3 (Power) |
| Pitch | 0.079" (2.00mm) |
| Mounting Type | Board Edge, Through Hole, Right Angle |
| Termination | Press-Fit |
| Contact Finish | Gold |
| Operating Temperature Range | -55°C ~ 125°C |
| Number of Rows | 1 |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level | 1 (Unlimited) |
| Product Status | Obsolete |
Substitute Part Grouping Explanation
Substitution of the TE Connectivity Erni 114403 is determined by alignment of the following critical parameters:
Mechanical Compatibility:
- Connector type classification (Header with male contact elements)
- Number of positions: 3
- Mounting configuration: Board edge, through-hole, right-angle orientation
- Termination method: Press-fit
Electrical Compatibility:
- Operating temperature range: -55°C ~ 125°C
- Contact finish: Gold or equivalent noble metal plating
Regulatory & Environmental Compliance:
- RoHS3 compliance status
- Moisture sensitivity level: 1 (Unlimited)
- ECCN classification: EAR99

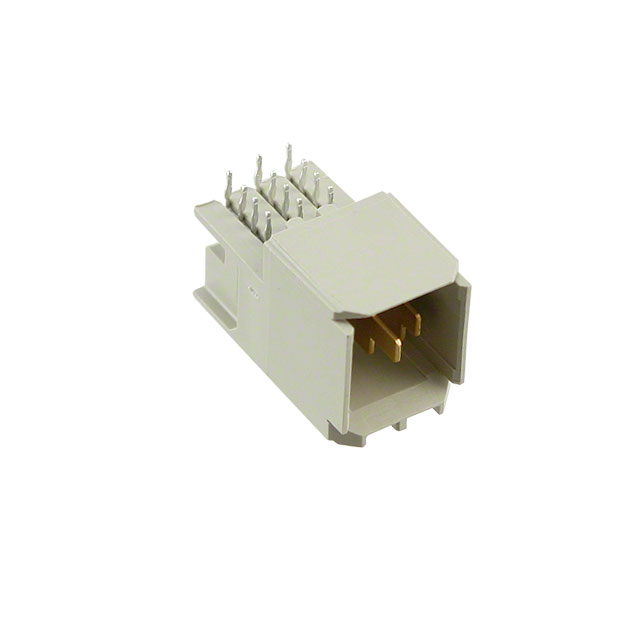

The substitute part TE Connectivity AMP Connectors 5223964-1 satisfies all critical parameters within the allowed substitution criteria for this backplane connector category.
Parameter Comparison
| Parameter | 114403 (Main Part) | 5223964-1 (Substitute) |
|---|---|---|
| Manufacturer | TE Connectivity Erni | TE Connectivity AMP Connectors |
| Category | Backplane Connectors | Backplane Connectors |
| Connector Type | Header, Male Pins | Header, Male Blades |
| Number of Positions | 3 (Power) | 3 |
| Number of Rows | 1 | 1 |
| Mounting Type | Board Edge, Through Hole, Right Angle | Board Edge, Through Hole, Right Angle |
| Termination | Press-Fit | Press-Fit |
| Contact Finish | Gold | Gold or Gold-Palladium |
| Operating Temperature Range | -55°C ~ 125°C | -55°C ~ 125°C |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant |
| Moisture Sensitivity Level | 1 (Unlimited) | 1 (Unlimited) |
| ECCN | EAR99 | EAR99 |
| Product Status | Obsolete | Active |
Engineering Selection Recommendations
The TE Connectivity AMP Connectors 5223964-1 is the designated substitute for the obsolete TE Connectivity Erni 114403. Both connectors maintain identical operating temperature specifications (-55°C ~ 125°C) and equivalent environmental compliance certifications (ROHS3, MSL 1, EAR99).
The substitute part is currently in active production status with confirmed inventory availability (2332 pcs), whereas the original part is obsolete. Both connectors employ press-fit termination with gold-plated contacts and are configured for board edge, through-hole, right-angle mounting in single-row, 3-position power applications.
The 5223964-1 operates within the UPM (Universal Power Modules) series and includes board guide features. Contact finish specifications for the substitute part include gold or gold-palladium plating, which exceeds the original gold-only specification. Voltage rating for the substitute is specified at 250V.
Selection of the 5223964-1 is appropriate for applications requiring direct replacement of the 114403 in backplane connector applications.
Frequently Asked Questions (FAQ)
Q: What is the primary reason for substituting the 114403?
A: The 114403 is classified as an obsolete product. The 5223964-1 substitute is an active production part with current inventory availability, ensuring long-term supply continuity for legacy system support.
Q: Are the mounting configurations identical between the two parts?
A: Yes. Both the 114403 and 5223964-1 are configured for board edge, through-hole, right-angle mounting with single-row, 3-position layouts and press-fit termination.
Q: Do the operating temperature ranges match?
A: Yes. Both connectors operate across the identical temperature range of -55°C ~ 125°C.
Q: What is the difference between male pins and male blades?
A: The 114403 features male pin contacts, while the 5223964-1 features male blade contacts. Both are male contact elements suitable for mating with corresponding female receptacles in backplane applications.
Q: Are both parts RoHS3 compliant?
A: Yes. Both the 114403 and 5223964-1 are ROHS3 compliant with MSL 1 (Unlimited) moisture sensitivity ratings.
Q: What is the contact finish specification for the substitute part?
A: The 5223964-1 specifies gold or gold-palladium contact finish, which is compatible with and exceeds the original 114403 gold-only specification.
Q: Is the pitch specification provided for the substitute part?
A: The pitch specification is not provided in the substitute part documentation. The 114403 specifies 0.079" (2.00mm) pitch. Mechanical compatibility should be verified during integration.
Q: What packaging format is available for the substitute part?
A: The 5223964-1 is supplied in tube packaging.
