TE Connectivity 1-1337582-1 MCX Connector Jack Equivalent & Substitute Parts
Part Overview

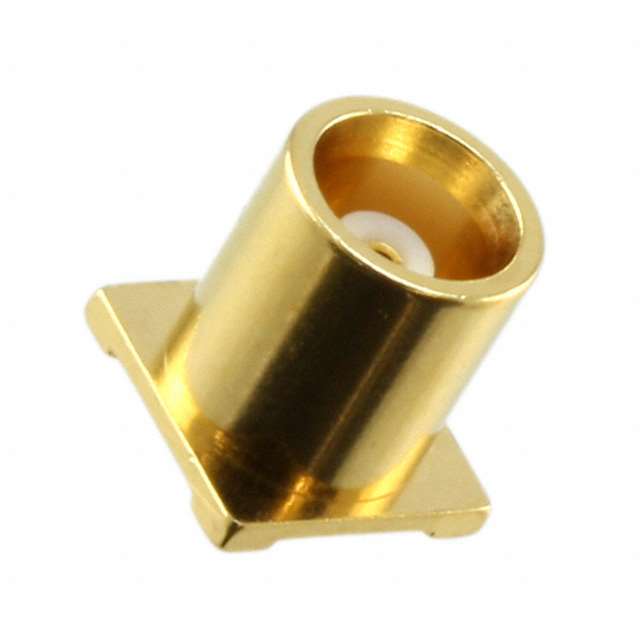

The TE Connectivity 1-1337582-1 is an MCX Connector Jack, Female Socket rated for 50 Ohms impedance with surface mount solder termination. This component is classified as Obsolete product status. Identification of equivalent and substitute parts is necessary to maintain design continuity and ensure procurement availability for applications requiring MCX coaxial connector functionality with identical electrical and mechanical specifications.
Substiute Parts
Key Parameters
| Parameter | Value |
|---|---|
| Manufacturer Part Number | 1-1337582-1 |
| Manufacturer | TE Connectivity AMP Connectors |
| Category | Coaxial Connectors (RF) |
| Connector Style | MCX |
| Connector Type | Jack, Female Socket |
| Impedance | 50 Ohms |
| Mounting Type | Surface Mount |
| Contact Termination | Solder |
| Shield Termination | Solder |
| Frequency - Max | 6 GHz |
| Operating Temperature | -65°C ~ 165°C |
| Voltage Rating | 335 V |
| Mating Cycles | 500 |
| Insertion Loss | 0.1 dB |
| RoHS Status | RoHS Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
Substitute Part Grouping Explanation
Substitute parts for the TE Connectivity 1-1337582-1 are classified based on strict adherence to the following critical parameters:
Primary Substitution Criteria:
- Connector Style: MCX
- Connector Type: Jack, Female Socket
- Impedance: 50 Ohms
- Mounting Type: Surface Mount
- Contact Termination: Solder
- Shield Termination: Solder
- Frequency - Max: 6 GHz
- Number of Ports: 1
- Fastening Type: Snap-On
Parametric Equivalent Classification: Parts meeting all primary substitution criteria with identical electrical performance characteristics.
Direct Manufacturer Classification: Parts from alternative manufacturers meeting all primary substitution criteria.
Similar Classification: Parts with minor variations in finish or material specifications that maintain functional equivalence within the defined parameter set.
Parameter Comparison
| Manufacturer Part Number | Manufacturer | Connector Type | Impedance | Frequency - Max | Operating Temperature | Voltage Rating | Insertion Loss | Product Status | RoHS Status |
|---|---|---|---|---|---|---|---|---|---|
| 1-1337582-1 | TE Connectivity AMP Connectors | Jack, Female Socket | 50 Ohms | 6 GHz | -65°C ~ 165°C | 335 V | 0.1 dB | Obsolete | RoHS Compliant |
| 1-1337582-0 | TE Connectivity AMP Connectors | Jack, Female Socket | 50 Ohms | 6 GHz | -65°C ~ 165°C | 335 V | 0.1 dB | Active | ROHS3 Compliant |
| 0734154500 | Molex | Jack, Female Socket | 50 Ohms | 6 GHz | -55°C ~ 155°C | 335 V | Not Specified | Active | ROHS3 Compliant |
| 252117 | Amphenol RF | Receptacle, Female Socket | 50 Ohms | 6 GHz | Not Specified | 225 V | 0.1 dB | Active | ROHS3 Compliant |
| 919-118J-51PT | Amphenol RF | Receptacle, Female Socket | 50 Ohms | 2 GHz | -40°C ~ 85°C | 500 V | 0.1 dB | Active | ROHS3 Compliant |
| 0734151690 | Molex | Receptacle, Female Socket | 50 Ohms | 6 GHz | -55°C ~ 155°C | 335 V | Not Specified | Active | ROHS3 Compliant |
| 133-3711-201 | Cinch Connectivity Solutions Johnson | Jack, Female Socket | 50 Ohms | 6 GHz | -65°C ~ 165°C | 335 V | Not Specified | Active | ROHS3 Compliant |
| 133-3711-211 | Cinch Connectivity Solutions | Jack, Female Socket | 50 Ohms | 6 GHz | -65°C ~ 165°C | 335 V | Not Specified | Active | ROHS3 Compliant |
| 29K101-40ML5 | Rosenberger | Jack, Female Socket | 50 Ohms | 6 GHz | -55°C ~ 155°C | 335 V | Not Specified | Active | ROHS3 Compliant |
| 82_MCX-S50-0-29/111_NE | Huber+Suhner, Inc. | Jack, Female Socket | 50 Ohms | 6 GHz | -55°C ~ 155°C | 170 V | Not Specified | Active | Not Specified |
| 82_MCX-S50-0-29/111_NH | Huber+Suhner, Inc. | Jack, Female Socket | 50 Ohms | 6 GHz | -55°C ~ 155°C | 170 V | Not Specified | Active | ROHS3 Compliant |
Engineering Selection Recommendations
Primary Recommendation - Direct Parametric Equivalent:
Part number 1-1337582-0 from TE Connectivity AMP Connectors is the direct parametric equivalent to the obsolete 1-1337582-1. This part maintains identical electrical specifications including 50 Ohms impedance, 6 GHz maximum frequency, 335 V voltage rating, and -65°C to 165°C operating temperature range. The 1-1337582-0 carries Active product status and ROHS3 Compliant certification, providing long-term procurement availability and regulatory compliance.
Secondary Recommendations - Cross-Manufacturer Equivalents:
Parts 133-3711-201 and 133-3711-211 from Cinch Connectivity Solutions are parametric equivalents meeting all critical electrical and mechanical specifications. Both maintain Jack, Female Socket configuration, 50 Ohms impedance, 6 GHz frequency capability, and -65°C to 165°C operating temperature range. These parts carry Active product status and ROHS3 Compliant certification.
Part 0734154500 from Molex is a direct manufacturer equivalent with identical MCX Jack configuration and 50 Ohms impedance. Operating temperature range is -55°C to 155°C, which represents a reduced thermal envelope compared to the original specification.
Part 29K101-40ML5 from Rosenberger meets all critical electrical parameters with 50 Ohms impedance and 6 GHz frequency capability. Operating temperature range is -55°C to 155°C. This part includes 2 pieces per package (1 connector and 1 cap).
Part 82_MCX-S50-0-29/111_NH from Huber+Suhner, Inc. maintains 50 Ohms impedance and 6 GHz frequency capability with ROHS3 Compliant status. Voltage rating is 170 V, which is lower than the original 335 V specification.
Not Recommended for Direct Substitution:
Parts 252117 and 919-118J-51PT are classified as Receptacle, Female Socket connectors rather than Jack, Female Socket. These represent different connector mating configurations and are not direct substitutes.
Part 0734151690 is a Receptacle configuration and not suitable for direct substitution.
Part 82_MCX-S50-0-29/111_NE has reduced voltage rating of 170 V and lacks specified RoHS status.
Frequently Asked Questions (FAQ)
Q: What is the difference between the obsolete 1-1337582-1 and the active 1-1337582-0?
A: Both parts are manufactured by TE Connectivity AMP Connectors and share identical electrical and mechanical specifications. The primary difference is product status: 1-1337582-1 is Obsolete while 1-1337582-0 is Active. The 1-1337582-0 provides continued procurement availability and carries ROHS3 Compliant certification compared to RoHS Compliant for the original part.
Q: Can I use Amphenol RF parts 252117 or 919-118J-51PT as substitutes?
A: Parts 252117 and 919-118J-51PT are Receptacle, Female Socket connectors, whereas the original part is a Jack, Female Socket connector. These represent different mating configurations and are not direct substitutes. Additionally, 919-118J-51PT has a maximum frequency of 2 GHz, which is below the 6 GHz specification of the original part.
Q: What are the packaging differences among the substitute parts?
A: The original 1-1337582-1 is supplied in unspecified packaging. The 1-1337582-0 equivalent is supplied in Bulk packaging. Molex part 0734154500 is supplied in Tape & Reel (TR) format. Amphenol RF part 252117 is supplied in Bag packaging. Amphenol RF part 919-118J-51PT and most other alternatives are supplied in Bulk packaging. Rosenberger part 29K101-40ML5 includes 2 pieces per package (1 connector and 1 cap).
Q: Are all substitute parts RoHS compliant?
A: Most substitute parts carry ROHS3 Compliant certification. Part 82_MCX-S50-0-29/111_NE does not have specified RoHS status. The original 1-1337582-1 is RoHS Compliant, while the recommended 1-1337582-0 equivalent is ROHS3 Compliant.
Q: What is the operating temperature range difference between the original part and alternatives?
A: The original 1-1337582-1 operates from -65°C to 165°C. The recommended equivalent 1-1337582-0 maintains this range. Alternative parts from Molex (0734154500), Rosenberger (29K101-40ML5), and Huber+Suhner (82_MCX-S50-0-29/111_NE and 82_MCX-S50-0-29/111_NH) operate from -55°C to 155°C, representing a reduced thermal envelope. Amphenol RF part 919-118J-51PT operates from -40°C to 85°C.
Q: What voltage ratings should I consider when selecting a substitute?
A: The original 1-1337582-1 has a 335 V voltage rating. The recommended equivalent 1-1337582-0 maintains this rating. Most alternatives including Molex 0734154500, Cinch 133-3711-201 and 133-3711-211, and Rosenberger 29K101-40ML5 also maintain 335 V rating. Amphenol RF part 252117 has a 225 V rating. Huber+Suhner parts 82_MCX-S50-0-29/111_NE and 82_MCX-S50-0-29/111_NH have reduced 170 V ratings. Amphenol RF part 919-118J-51PT has an elevated 500 V rating.
Q: Which substitute part has the best long-term availability?
A: Part 1-1337582-0 from TE Connectivity AMP Connectors is the recommended choice for long-term availability. It carries Active product status, maintains identical specifications to the obsolete original part, and is supplied by the original manufacturer. Current inventory shows 2327 pieces in stock.
Q: Can I use Huber+Suhner parts as direct substitutes?
A: Huber+Suhner parts 82_MCX-S50-0-29/111_NE and 82_MCX-S50-0-29/111_NH maintain 50 Ohms impedance and 6 GHz frequency capability. However, both have reduced voltage ratings of 170 V compared to the original 335 V specification. These parts are suitable only for applications where the lower voltage rating is acceptable.
Q: What is the insertion loss specification for substitute parts?
A: The original 1-1337582-1 specifies 0.1 dB insertion loss. The equivalent 1-1337582-0 maintains this specification. Amphenol RF parts 252117 and 919-118J-51PT also specify 0.1 dB insertion loss. Insertion loss is not specified for Molex, Cinch, Rosenberger, and Huber+Suhner alternatives.
