TE Connectivity AMP Connectors 1-1337455-0 Equivalent & Substitute Parts

Part Overview

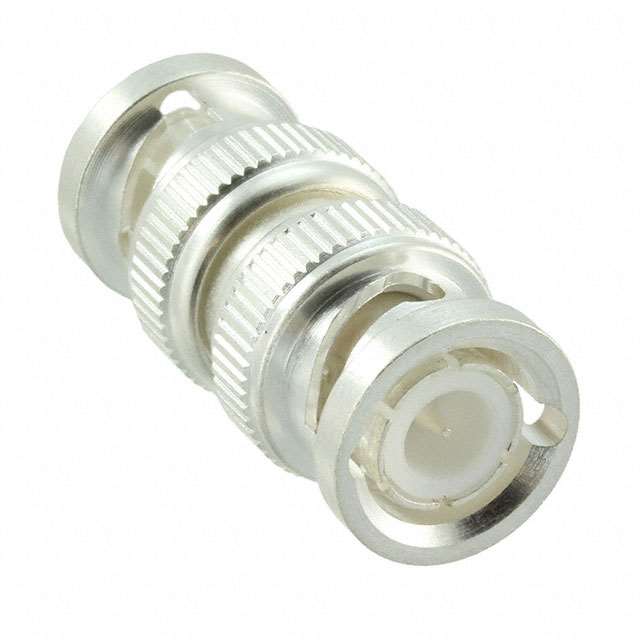

The TE Connectivity AMP Connectors 1-1337455-0 is a coaxial adapter connector designed for RF applications requiring BNC plug-to-plug connections at 50 ohm impedance. This component functions as an in-line adapter with bayonet locking fasteners, enabling connection between two male BNC plug connectors in a straight configuration.

The 1-1337455-0 carries an obsolete product status, indicating it is no longer in active production. Locating equivalent substitute parts is necessary for system maintenance, repair, and new design implementations where this connector type is specified or required for compatibility with existing RF systems.

Substiute Parts

1-1337455-0

TE Connectivity AMP ConnectorsIn Stock: 7851-1337455-0 Datasheet

Current PartRFQ

31-218

Amphenol RFIn Stock: 126031-218 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the 1-1337455-0 is determined by strict equivalence across the following critical parameters:

Mandatory Matching Parameters:

• Adapter Type: Plug to Plug
• Adapter Series: BNC to BNC
• Center Gender: Male to Male
• Impedance: 50 Ohms
• Style: Straight
• Mounting Type: Free Hanging (In-Line)
• Fastening Type: Bayonet Lock
• Frequency - Max: 4 GHz
• Operating Temperature Range: -65°C to 165°C
• Dielectric Material: Polytetrafluoroethylene (PTFE)
• Body Material: Brass
• Center Contact Material: Brass
• Center Contact Plating: Silver

The Amphenol RF 31-218 meets all mandatory matching parameters and qualifies as a direct functional equivalent for the obsolete TE Connectivity part.

Parameter Comparison

Engineering Selection Recommendations

The Amphenol RF 31-218 is the qualified substitute for the obsolete TE Connectivity AMP Connectors 1-1337455-0. Selection of the 31-218 is supported by the following factors:

Product Status: The 31-218 maintains active product status, ensuring ongoing availability and supply chain continuity. The 1-1337455-0 is obsolete and subject to inventory depletion.

Compliance Certifications: Both parts maintain equivalent compliance profiles. The 1-1337455-0 is RoHS Compliant, while the 31-218 is ROHS3 Compliant, representing an advancement in regulatory compliance. Both parts carry identical ECCN (EAR99) and HTSUS (8536.69.4010) classifications.

Functional Equivalence: All critical electrical and mechanical parameters match between the two parts, including impedance, frequency rating, operating temperature range, and connector geometry.

Material Composition: The primary difference is body finish specification. The 1-1337455-0 features silver body finish, while the 31-218 features nickel body finish. Both finishes are compatible with the silver-plated center contacts and PTFE dielectric material.

Frequently Asked Questions (FAQ)

Q: Can the Amphenol RF 31-218 directly replace the TE Connectivity 1-1337455-0 in existing RF systems?

A: Yes. The 31-218 meets all mandatory electrical and mechanical parameters required for direct substitution, including 50 ohm impedance, BNC plug-to-plug configuration, male-to-male center gender, 4 GHz frequency rating, and identical operating temperature range.

Q: What is the significance of the body finish difference between silver and nickel?

A: Body finish affects corrosion resistance and environmental durability. Both silver and nickel finishes are standard for RF connectors. The nickel finish on the 31-218 provides equivalent performance within the specified operating temperature range and moisture sensitivity level.

Q: Are there packaging differences between these parts?

A: The 1-1337455-0 packaging specification is not provided in the available data. The 31-218 is supplied in bulk packaging. Packaging format does not affect functional compatibility or electrical performance.

Q: Do both parts meet current regulatory requirements?

A: The 31-218 carries ROHS3 Compliant status, representing current regulatory compliance. The 1-1337455-0 is RoHS Compliant. Both parts share identical ECCN and HTSUS classifications, confirming equivalent export and tariff treatment.

Q: What is the mating cycle rating for these connectors?

A: The 1-1337455-0 specifies 500 mating cycles. The 31-218 mating cycle specification is not provided in the available data. Both parts are rated for free-hanging in-line mounting with bayonet locking fasteners.

Q: Are insertion loss specifications available for these adapters?

A: Insertion loss data is not provided for either the 1-1337455-0 or the 31-218 in the available technical parameters.
