TE Connectivity 111595-7 Equivalent & Substitute Parts

Part Overview

The TE Connectivity 111595-7 is a 30-position ribbon cable connector from the AMPMODU System 50 series, designed for through-hole mounting applications. This connector features Insulation Displacement Contact (IDC) termination technology and is classified as an active product. The connector accommodates ribbon cables with 0.050" (1.27mm) pitch and board-side spacing of 0.100" (2.54mm) across four rows with 0.075" (1.91mm) row spacing.

Substitute parts are identified when equivalent electrical and mechanical parameters are maintained across the connector family, enabling component interchangeability in applications where specific packaging, compliance, or contact finish specifications differ from the original design requirement.

Substiute Parts

111595-7

TE Connectivity AMP ConnectorsIn Stock: 765111595-7 Datasheet

Current PartRFQ

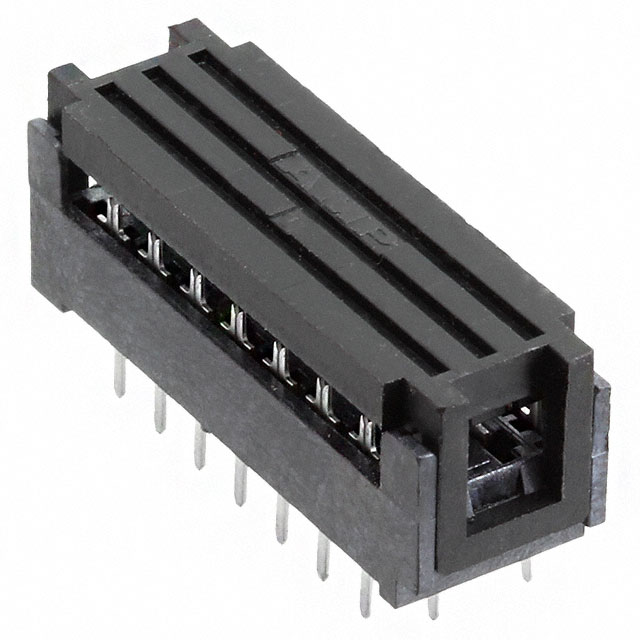

5111595-7

TE Connectivity AMP ConnectorsIn Stock: 9065111595-7 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the TE Connectivity 111595-7 is determined by strict equivalence across the following critical parameters:

Electrical Compatibility Parameters:

• Connector type: Ribbon Cable
• Number of positions: 30
• Cable pitch: 0.050" (1.27mm)
• Board-side pitch: 0.100" (2.54mm)
• Number of rows: 4
• Row spacing: 0.075" (1.91mm)
• Cable termination method: IDC
• Feed-through capability: Required

Mechanical Compatibility Parameters:

• Mounting type: Through Hole
• Color: Black
• Number of positions loaded: All

Allowable Variations: Substitute parts may differ in the following parameters without affecting functional interchangeability:

• Packaging format (bulk versus tray)
• Contact finish composition (Tin-Lead versus Tin)
• Contact finish thickness
• RoHS compliance status
• Product base number designation

The substitute part 5111595-7 maintains full electrical and mechanical equivalence to the 111595-7 while offering alternative packaging and contact finish specifications.

Parameter Comparison

Engineering Selection Recommendations

Primary Part Selection (111595-7): The 111595-7 is suitable for applications where bulk packaging is preferred and RoHS non-compliance is acceptable. This part maintains active product status and provides Tin-Lead contact finish with 50.0µin thickness.

Substitute Part Selection (5111595-7): The 5111595-7 is the appropriate selection for applications requiring ROHS3 compliance. This substitute offers tray packaging, which may be advantageous for automated assembly processes or inventory management systems requiring standardized packaging formats. The Tin contact finish with increased thickness (100.0µin) provides enhanced durability characteristics.

Compliance Considerations: Selection between these parts should be based on regulatory requirements applicable to the end application. The 111595-7 is designated as RoHS non-compliant, while the 5111595-7 meets ROHS3 compliance standards. Both parts maintain identical electrical and mechanical specifications, ensuring functional interchangeability within the AMPMODU System 50 connector family.

Packaging and Logistics: The choice between bulk and tray packaging should align with procurement workflows, storage requirements, and assembly line integration protocols. Both packaging formats contain equivalent connector specifications.

Frequently Asked Questions (FAQ)

Q: Are the 111595-7 and 5111595-7 electrically interchangeable?

A: Yes. Both connectors maintain identical electrical specifications including 30-position capacity, 0.050" cable pitch, 0.100" board-side pitch, four-row configuration with 0.075" row spacing, and IDC termination technology. They are fully interchangeable in circuit applications.

Q: What is the primary difference between these two parts?

A: The primary differences are packaging format (bulk versus tray), contact finish composition (Tin-Lead versus Tin), contact finish thickness (50.0µin versus 100.0µin), and RoHS compliance status (non-compliant versus ROHS3 compliant). All mechanical and electrical parameters remain identical.

Q: Which part should be selected for RoHS-compliant applications?

A: The 5111595-7 is designated as ROHS3 compliant and is the appropriate selection for applications subject to RoHS regulations. The 111595-7 is RoHS non-compliant.

Q: Does packaging format affect connector performance?

A: No. Packaging format (bulk or tray) does not affect connector electrical or mechanical performance. Selection should be based on procurement, storage, and assembly process requirements.

Q: Are there differences in contact durability between the two parts?

A: The 5111595-7 features increased contact finish thickness (100.0µin versus 50.0µin) and Tin finish composition compared to the Tin-Lead finish of the 111595-7. These differences may influence contact durability characteristics in specific environmental or cycling conditions.

Q: Can these connectors be used interchangeably in existing designs?

A: Yes, provided that the design does not specify RoHS compliance requirements or particular contact finish specifications. Both parts maintain identical form, fit, and function within the AMPMODU System 50 series.

Q: What is the moisture sensitivity level for both parts?

A: Both the 111595-7 and 5111595-7 are classified as MSL 1 (Unlimited), indicating no moisture sensitivity restrictions for storage or handling.
