Equivalent & Substitute Parts for TE Connectivity 1-106527-6

Part Overview

The TE Connectivity 1-106527-6 is a 16-position rectangular connector receptacle housing with 0.165" (4.20mm) pitch, designed for free-hanging in-line mounting applications. This component belongs to the AMP-DUAC series and features crimp contact termination with latch lock fastening. The part is classified as obsolete, necessitating identification of active equivalent alternatives to maintain design continuity and ensure supply chain availability for new production and repair applications.

Key Parameters

Parameter	Value
Connector Type	Receptacle
Contact Type	Female Socket
Number of Positions	16
Pitch	0.165" (4.20mm)
Number of Rows	2
Row Spacing	0.165" (4.20mm)
Mounting Type	Free Hanging (In-Line)
Contact Termination	Crimp
Fastening Type	Latch Lock
Color	Natural
Moisture Sensitivity Level	1 (Unlimited)

Substitute Part Grouping Explanation

Substitution eligibility for the 1-106527-6 is determined by strict parametric equivalence across the following critical dimensions:

Mandatory Matching Parameters:

Connector type: Receptacle
Contact type: Female socket
Number of positions: 16
Pitch: 0.165" (4.20mm)
Number of rows: 2
Row spacing: 0.165" (4.20mm)
Mounting type: Free hanging (in-line)
Contact termination: Crimp
Fastening type: Latch lock
Color: Natural
Moisture sensitivity level: 1 (Unlimited)

All substitute parts listed meet these mandatory parameters. Variations in product status, series designation, insulation material composition, and manufacturer do not affect functional interchangeability when all electrical and mechanical parameters align.

Parameter Comparison

Parameter	1-106527-6 (Main)	1-794954-6	1-1586019-6	1-1969597-6	0039012160
Manufacturer	TE Connectivity	TE Connectivity	TE Connectivity	TE Connectivity	Molex
Series	AMP-DUAC	VAL-U-LOK	VAL-U-LOK	VAL-U-LOK	Mini-Fit Jr 5557
Product Status	Obsolete	Active	Active	Obsolete	Active
Connector Type	Receptacle	Receptacle	Receptacle	Receptacle	Receptacle
Contact Type	Female Socket	Female Socket	Female Socket	Female Socket	Female Socket
Number of Positions	16	16	16	16	16
Pitch	0.165" (4.20mm)	0.165" (4.20mm)	0.165" (4.20mm)	0.165" (4.20mm)	0.165" (4.20mm)
Number of Rows	2	2	2	2	2
Row Spacing	0.165" (4.20mm)	0.165" (4.20mm)	0.165" (4.20mm)	0.165" (4.20mm)	0.165" (4.20mm)
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)	Free Hanging (In-Line)	Free Hanging (In-Line)	Free Hanging (In-Line)
Contact Termination	Crimp	Crimp	Crimp	Crimp	Crimp
Fastening Type	Latch Lock	Latch Lock	Latch Lock	Latch Lock	Latch Lock
Color	Natural	Natural	Natural	Natural	Natural
Operating Temperature	Not specified	-40°C ~ 105°C	-40°C ~ 105°C	-40°C ~ 105°C	-40°C ~ 105°C
Moisture Sensitivity Level	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)
RoHS Status	Not specified	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant

Engineering Selection Recommendations

Primary Recommendation: 1-1586019-6

The TE Connectivity 1-1586019-6 is the preferred substitute for the obsolete 1-106527-6. This part maintains full parametric equivalence while offering active product status, ensuring long-term supply chain availability. The 1-1586019-6 carries ROHS3 compliance certification and operates across the -40°C to 105°C temperature range. With 16,466 units in current inventory, this part provides immediate availability for production requirements.

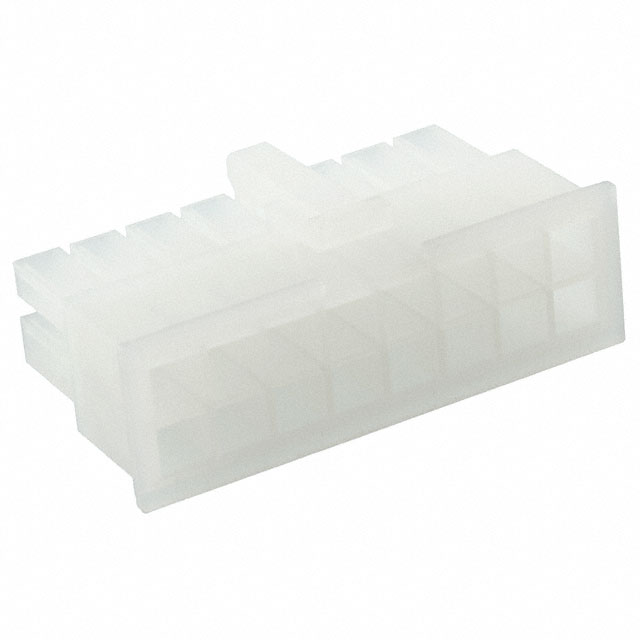

Secondary Recommendation: 1-794954-6

The TE Connectivity 1-794954-6 serves as an alternative active substitute within the VAL-U-LOK series. This part meets all mandatory parametric requirements and maintains ROHS3 compliance. Inventory levels of 5,946 units support ongoing supply needs. Selection between 1-1586019-6 and 1-794954-6 depends on series-specific design requirements and connector interface compatibility with mating plug components.

Cross-Manufacturer Alternative: 0039012160

The Molex 0039012160 from the Mini-Fit Jr 5557 series provides cross-manufacturer equivalence with identical electrical and mechanical parameters. This part is active and ROHS3 compliant with 16,126 units in inventory. Cross-manufacturer substitution is appropriate when design specifications permit interchangeability and when supply chain diversification is a design objective.

Obsolete Alternative: 1-1969597-6

The TE Connectivity 1-1969597-6 maintains full parametric equivalence but carries obsolete product status. This part should be selected only when existing inventory must be consumed or when design validation has been completed specifically for this part number. The 2,674 units in stock represent residual inventory from prior production phases.

Frequently Asked Questions (FAQ)

Q: Can the 1-794954-6 be used as a direct replacement for the 1-106527-6?

A: Yes. The 1-794954-6 meets all mandatory parametric requirements including connector type, contact type, position count, pitch, row configuration, mounting type, termination method, and fastening mechanism. Both parts are 16-position receptacles with 0.165" (4.20mm) pitch and latch lock fastening. The primary difference is series designation (VAL-U-LOK versus AMP-DUAC) and active product status.

Q: What is the difference between the TE Connectivity and Molex options?

A: The TE Connectivity parts (1-794954-6, 1-1586019-6, 1-1969597-6) and the Molex part (0039012160) are parametrically equivalent across all electrical and mechanical dimensions. The differences are manufacturer identity and series designation. Selection depends on design specifications, mating connector compatibility, and supply chain preferences. All parts share identical pitch, position count, row spacing, and termination characteristics.

Q: Why is the 1-106527-6 listed as obsolete?

A: The 1-106527-6 belongs to the AMP-DUAC series, which has been superseded by the VAL-U-LOK series within TE Connectivity's product portfolio. Active equivalents such as 1-1586019-6 and 1-794954-6 provide the same functionality with current manufacturing support and compliance certifications.

Q: Are there any insulation material differences between substitute parts?

A: The 1-794954-6 and 1-1586019-6 specify polyamide (PA) nylon insulation, while the 1-1969597-6 specifies polyamide (PA66) nylon 6/6. The 0039012160 also specifies polyamide (PA66) nylon 6/6. These material variations do not affect parametric equivalence or functional interchangeability for the specified electrical and mechanical parameters.

Q: Can I mix and match contacts from different manufacturers?

A: Contact compatibility depends on crimp specifications and contact geometry. All listed parts use crimp termination, but contact selection must align with the specific housing part number selected. Contacts are not included with any of these housing parts and must be sourced separately according to the mating connector requirements.

Q: What is the significance of ROHS3 compliance?

A: ROHS3 compliance indicates conformance to the Restriction of Hazardous Substances Directive. The active substitute parts (1-794954-6, 1-1586019-6, and 0039012160) all carry ROHS3 certification, supporting compliance requirements for new product designs and manufacturing in regulated markets.

Q: Is the operating temperature range critical for substitution?

A: The operating temperature range of -40°C to 105°C is specified for all substitute parts. The main part (1-106527-6) does not include temperature specification in the provided data. If the application requires operation outside this range, design validation is necessary before substitution.

Q: What inventory considerations should influence part selection?

A: The 1-1586019-6 offers the highest inventory level at 16,466 units, followed by the Molex 0039012160 at 16,126 units. The 1-794954-6 provides 5,946 units, and the obsolete 1-1969597-6 has 2,674 units. For new production programs, selection of parts with higher inventory levels reduces supply chain risk.
