Equivalent & Substitute Parts for TE Connectivity 1-106527-0 Rectangular Connector Housing

Part Overview

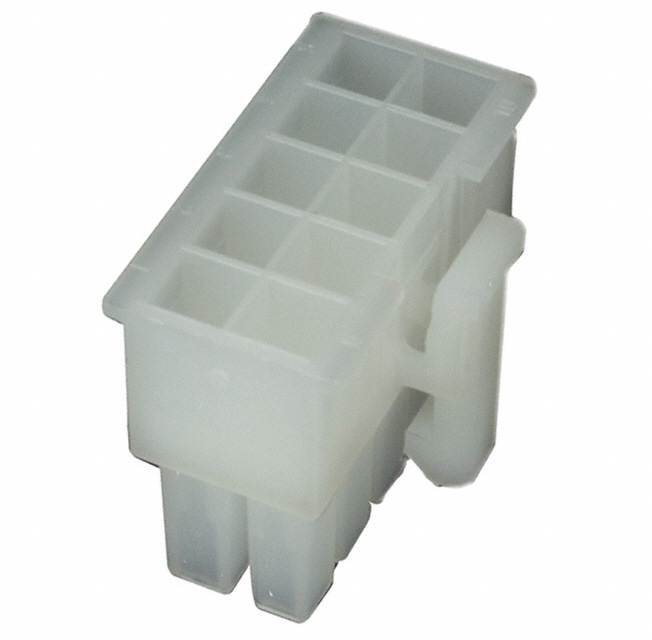

The TE Connectivity 1-106527-0 is a 10-position rectangular connector receptacle housing with 4.20mm pitch, designed for crimp contact termination in free-hanging inline applications. This component is classified as obsolete, necessitating identification of active substitute parts that maintain electrical and mechanical compatibility. Substitute parts must preserve the core functional parameters: 10-position capacity, 4.20mm pitch, 2-row configuration, female socket contact type, and latch lock fastening mechanism.

Key Parameters

Parameter	Value
Connector Type	Receptacle
Contact Type	Female Socket
Number of Positions	10
Pitch	0.165" (4.20mm)
Number of Rows	2
Row Spacing	0.165" (4.20mm)
Mounting Type	Free Hanging (In-Line)
Contact Termination	Crimp
Fastening Type	Latch Lock
Moisture Sensitivity Level	1 (Unlimited)

Substitute Part Grouping Explanation

Substitute parts for the 1-106527-0 are qualified based on matching the following critical parameters: 10-position capacity, 4.20mm pitch, 2-row configuration with 4.20mm row spacing, receptacle connector type with female socket contacts, free-hanging inline mounting, crimp termination, and latch lock fastening. All identified substitutes maintain these core electrical and mechanical specifications, ensuring functional interchangeability within applications designed for the original part.

The substitute parts are grouped into two categories:

Direct Series Substitutes: Parts from TE Connectivity's active product lines that maintain identical specifications and form factor.

Cross-Manufacturer Parametric Equivalents: Parts from Molex and Samtec that satisfy all critical electrical and mechanical parameters while offering alternative sourcing options.

Parameter Comparison

Parameter	1-106527-0 (Main)	1-794954-0 (TE Connectivity)	0039012100 (Molex)	0039013105 (Molex)	IPBD-05-D (Samtec)
Manufacturer	TE Connectivity	TE Connectivity	Molex	Molex	Samtec Inc.
Series	AMP-DUAC	VAL-U-LOK	Mini-Fit Jr 5557	Mini-Fit Jr 5557	Power Mate® IPBD
Product Status	Obsolete	Active	Active	Active	Active
Connector Type	Receptacle	Receptacle	Receptacle	Receptacle	Receptacle
Contact Type	Female Socket	Female Socket	Female Socket	Female Socket	Female Socket
Number of Positions	10	10	10	10	10
Pitch	0.165" (4.20mm)	0.165" (4.20mm)	0.165" (4.20mm)	0.165" (4.20mm)	0.165" (4.20mm)
Number of Rows	2	2	2	2	2
Row Spacing	0.165" (4.20mm)	0.165" (4.20mm)	0.165" (4.20mm)	0.165" (4.20mm)	0.165" (4.20mm)
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)	Free Hanging (In-Line)	Free Hanging (In-Line)	Free Hanging (In-Line)
Contact Termination	Crimp	Crimp	Crimp	Crimp	Crimp
Fastening Type	Latch Lock	Latch Lock	Latch Lock	Latch Lock	Latch Lock
Color	Natural	Natural	Natural	Black	Not Specified
Insulation Material	Not Specified	Polyamide (PA), Nylon	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6	Polyamide (PA), Nylon
Operating Temperature	Not Specified	-40°C ~ 105°C	-40°C ~ 105°C	-40°C ~ 105°C	Not Specified
RoHS Status	Not Specified	RoHS Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant
Moisture Sensitivity Level	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)
ECCN	EAR99	EAR99	EAR99	EAR99	EAR99
Inventory Status	785 Pcs New Original	21663 Pcs New Original	97693 Pcs New Original	9422 Pcs New Original	2772 Pcs New Original

Engineering Selection Recommendations

TE Connectivity 1-794954-0 (VAL-U-LOK Series): This part is the primary substitute within the TE Connectivity product portfolio. It maintains identical electrical and mechanical specifications to the obsolete 1-106527-0 while offering active product status and RoHS compliance. Inventory availability is substantial at 21,663 units. This part is suitable for direct replacement in applications previously specified for the AMP-DUAC series.

Molex 0039012100 (Mini-Fit Jr 5557 Series, Natural): This parametric equivalent satisfies all critical connector specifications and offers the highest inventory availability at 97,693 units. It features ROHS3 compliance and REACH unaffected status. The natural color matches the original part specification. Operating temperature range is -40°C to 105°C.

Molex 0039013105 (Mini-Fit Jr 5557 Series, Black): This part is functionally equivalent to 0039012100 with identical electrical and mechanical parameters. The black color variant differs from the original natural color specification. Selection of this part requires confirmation that color is not a critical design parameter.

Samtec IPBD-05-D (Power Mate® IPBD Series): This cross-manufacturer substitute maintains all critical electrical and mechanical parameters. It offers ROHS3 compliance and REACH unaffected status. Inventory availability is 2,772 units. Operating temperature specification is not provided in available documentation.

Frequently Asked Questions (FAQ)

Q: Can the 1-794954-0 be used as a direct replacement for the obsolete 1-106527-0?

A: Yes. The 1-794954-0 maintains identical specifications for connector type, contact type, position count, pitch, row configuration, mounting type, termination method, and fastening mechanism. Both parts are 10-position receptacles with 4.20mm pitch, 2-row configuration, female socket contacts, crimp termination, and latch lock fastening.

Q: What is the difference between the Molex 0039012100 and 0039013105?

A: The primary difference is color. The 0039012100 is natural color, matching the original 1-106527-0 specification. The 0039013105 is black. All other electrical and mechanical parameters are identical, including pitch, position count, row spacing, contact type, termination method, and fastening mechanism.

Q: Are all substitute parts RoHS compliant?

A: The TE Connectivity 1-794954-0 is RoHS compliant. Both Molex parts (0039012100 and 0039013105) are ROHS3 compliant. The Samtec IPBD-05-D is ROHS3 compliant. The original 1-106527-0 RoHS status is not specified.

Q: What is the operating temperature range for these connectors?

A: The TE Connectivity 1-794954-0, Molex 0039012100, and Molex 0039013105 all operate from -40°C to 105°C. The Samtec IPBD-05-D operating temperature is not specified in available documentation.

Q: Do these connector housings include contacts?

A: No. All parts listed, including the main part 1-106527-0 and all substitutes, are connector housings only. Contacts must be procured separately and are not included with the housing.

Q: Which substitute part has the best inventory availability?

A: The Molex 0039012100 offers the highest inventory availability at 97,693 units in stock. The TE Connectivity 1-794954-0 provides 21,663 units, the Samtec IPBD-05-D provides 2,772 units, and the Molex 0039013105 provides 9,422 units.

Q: Are there any differences in insulation material between the substitutes?

A: The TE Connectivity 1-794954-0 and Samtec IPBD-05-D use Polyamide (PA) Nylon. The Molex parts (0039012100 and 0039013105) use Polyamide (PA66) Nylon 6/6. Both material specifications are polyamide-based nylon compounds suitable for the specified operating temperature range.

Q: What is the moisture sensitivity level for these parts?

A: All parts, including the main part 1-106527-0 and all substitutes, have a Moisture Sensitivity Level (MSL) of 1, indicating unlimited shelf life without moisture control requirements.
