TE Connectivity 1-106508-2 D-Sub 37-Position Receptacle Equivalent & Substitute Parts
Part Overview

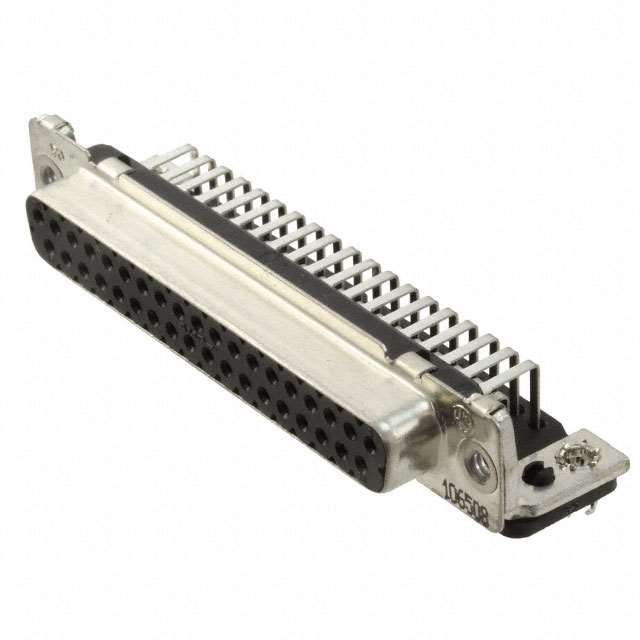

The TE Connectivity AMP Connectors 1-106508-2 is a 37-position D-Sub receptacle connector with female sockets, right-angle solder termination, and panel mount through-hole configuration. This connector is part of the AMPLIMITE HD-20 series and features a steel tin-plated shell with gold-plated contacts rated for 6A at 125V operation across a temperature range of -55°C to 105°C.
The 1-106508-2 carries an obsolete product status. Identifying equivalent and substitute D-Sub 37-position receptacle connectors ensures design continuity and maintains system compatibility for applications requiring this connector class. Substitute parts must satisfy the core electrical and mechanical parameters: 37-position configuration, 2-row layout, shell size 4 (DC, C), right-angle solder termination, and through-hole mounting.
Substiute Parts
Key Parameters
| Parameter | Value |
|---|---|
| Connector Type | D-Sub Receptacle, Female Sockets |
| Number of Positions | 37 |
| Number of Rows | 2 |
| Shell Size, Connector Layout | 4 (DC, C) |
| Mounting Type | Through Hole, Right Angle |
| Termination | Solder |
| Shell Material, Finish | Steel, Tin Plated |
| Contact Finish | Gold |
| Current Rating | 6A |
| Voltage Rating | 125V |
| Operating Temperature | -55°C to 105°C |
| Material Flammability Rating | UL94 V-0 |
| RoHS Status | ROHS3 Compliant |
Substitute Part Grouping Explanation
Substitution of the TE Connectivity 1-106508-2 is determined by strict adherence to the following core parameters:
Critical Matching Parameters:
- Connector type: D-Sub receptacle with female sockets
- Position count: 37 positions
- Row configuration: 2 rows
- Shell size and layout: 4 (DC, C)
- Mounting configuration: Through-hole, right-angle orientation
- Termination method: Solder
- Flammability rating: UL94 V-0 minimum
Acceptable Variation Parameters:
- Shell material finish (steel with tin, tin-nickel, or nickel plating)
- Contact finish (gold plating with varying thickness specifications)
- Current rating (equal to or greater than 6A)
- Voltage rating (equal to or greater than 125V)
- Operating temperature range (must encompass -55°C to 105°C minimum)
- Dielectric material composition (polyester, PBT, PCT, or polyamide variants)
- Contact material (phosphor bronze or copper alloy)
- Flange feature configuration (housing/shell or mating side screwlock)
Substitute parts identified include HARTING 09644147242, 09664137603, 09664527613, 09664537613, 09664566613; Amphenol ICC 6E17C037SAJ120, D37S13A4GL00, D37S13A4GL00LF, D37S13A4GV00, and D37S13A4GV00LF. All substitute parts maintain the 37-position D-Sub receptacle configuration with right-angle solder termination and through-hole mounting required for direct functional replacement.
Parameter Comparison
| Parameter | 1-106508-2 (TE) | 09644147242 (HARTING) | 09664137603 (HARTING) | 09664527613 (HARTING) | 09664537613 (HARTING) | 09664566613 (HARTING) | 6E17C037SAJ120 (Amphenol) | D37S13A4GL00LF (Amphenol) | D37S13A4GV00LF (Amphenol) |
|---|---|---|---|---|---|---|---|---|---|
| Connector Type | D-Sub Receptacle, Female Sockets | D-Sub Receptacle, Female Sockets | D-Sub Receptacle, Female Sockets | D-Sub Receptacle, Female Sockets | D-Sub Receptacle, Female Sockets | D-Sub Receptacle, Female Sockets | D-Sub Receptacle, Female Sockets | D-Sub Receptacle, Female Sockets | D-Sub Receptacle, Female Sockets |
| Number of Positions | 37 | 37 | 37 | 37 | 37 | 37 | 37 | 37 | 37 |
| Number of Rows | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Shell Size, Connector Layout | 4 (DC, C) | 4 (DC, C) | 4 (DC, C) | 4 (DC, C) | 4 (DC, C) | 4 (DC, C) | 4 (DC, C) | 4 (DC, C) | 4 (DC, C) |
| Mounting Type | Through Hole, Right Angle | Through Hole, Right Angle | Through Hole, Right Angle | Through Hole, Right Angle | Through Hole, Right Angle | Through Hole, Right Angle | Through Hole, Right Angle | Through Hole, Right Angle | Through Hole, Right Angle |
| Termination | Solder | Solder | Solder | Solder | Solder | Solder | Solder | Solder | Solder |
| Shell Material, Finish | Steel, Tin Plated | Steel | Steel | Steel | Steel | Steel | Steel, Nickel Plated | Steel, Tin-Nickel Plated | Steel, Tin-Nickel Plated |
| Contact Finish | Gold | Not Specified | Not Specified | Not Specified | Not Specified | Not Specified | Gold | Gold | Gold |
| Contact Finish Thickness | 30.0µin (0.76µm) | Not Specified | Not Specified | Not Specified | Not Specified | Not Specified | 30.0µin (0.76µm) | Flash | Flash |
| Current Rating (Amps) | 6A | 7.5A | 6.5A | 6.5A | 6.5A | 6.5A | 5A | 5A per Contact | 5A per Contact |
| Voltage Rating | 125V | 100V | Not Specified | Not Specified | Not Specified | Not Specified | Not Specified | 300V | 300V |
| Backset Spacing | 0.406" (10.30mm) | 0.401" (10.20mm) | 0.409" (10.40mm) | 0.409" (10.40mm) | 0.409" (10.40mm) | 0.409" (10.40mm) | 0.318" (8.08mm) | 0.409" (10.39mm) | 0.409" (10.39mm) |
| Operating Temperature | -55°C to 105°C | -20°C to 125°C | -55°C to 125°C | -55°C to 125°C | -55°C to 125°C | -55°C to 125°C | -55°C to 105°C | -55°C to 125°C | -55°C to 125°C |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | RoHS Compliant | RoHS Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | 1 (Unlimited) | 1 (Unlimited) | 1 (Unlimited) | 1 (Unlimited) | 1 (Unlimited) | 1 (Unlimited) | 1 (Unlimited) | 1 (Unlimited) |
| Product Status | Obsolete | Active | Active | Active | Active | Active | Active | Active | Active |
Engineering Selection Recommendations
Primary Substitute Candidates:
The Amphenol ICC (FCI) D37S13A4GL00LF and D37S13A4GV00LF connectors represent the most direct functional equivalents to the TE Connectivity 1-106508-2. Both parts maintain the 37-position D-Sub receptacle configuration with identical shell size, mounting type, and solder termination. These Amphenol parts carry active product status with RoHS compliance certification, ensuring long-term availability and regulatory alignment. The D37S13A4GL00LF features housing/shell flange configuration (M3), while D37S13A4GV00LF provides mating side female screwlock (4-40) flange design. Both operate across -55°C to 125°C, exceeding the original part's temperature range, and deliver 300V voltage rating compared to the original 125V specification.
Secondary Substitute Candidates:
HARTING 09664527613 and 09664537613 provide active-status alternatives with 6.5A current rating and -55°C to 125°C operating range. These parts feature mating side female screwlock (4-40) flange configuration and board lock functionality. HARTING 09664566613 offers similar electrical and thermal specifications with PCT glass-filled dielectric material. All HARTING substitutes carry ROHS3 compliance and REACH unaffected status.
Amphenol ICC 6E17C037SAJ120 Consideration:
The 6E17C037SAJ120 maintains 37-position D-Sub receptacle configuration with active product status and ROHS3 compliance. However, this part exhibits reduced backset spacing (0.318" versus 0.406" on the original), which may affect mechanical fit in existing panel mount applications. Current rating of 5A falls below the original 6A specification. This part is suitable only where mechanical and electrical constraints permit the reduced current capacity and modified spacing.
Compliance and Availability:
All identified substitute parts carry UL94 V-0 flammability rating and MSL 1 (unlimited) moisture sensitivity level, matching the original specification. HARTING parts maintain REACH unaffected status, while Amphenol ICC parts carry REACH unaffected certification. The original TE Connectivity 1-106508-2 carries obsolete product status; substitution with active-status alternatives ensures continued supply chain access and manufacturing support.
Frequently Asked Questions (FAQ)
Q: Can the HARTING 09664527613 directly replace the TE Connectivity 1-106508-2 in existing designs?
A: The HARTING 09664527613 maintains the critical 37-position D-Sub receptacle configuration, shell size 4 (DC, C), right-angle solder termination, and through-hole mounting required for functional replacement. Backset spacing of 0.409" (10.40mm) differs slightly from the original 0.406" (10.30mm), but this variance falls within typical mechanical tolerance for panel mount applications. The 6.5A current rating exceeds the original 6A specification. Flange configuration differs (mating side female screwlock versus housing/shell on the original), which may affect mating connector compatibility. Verify mating connector specifications before implementation.
Q: What is the primary difference between D37S13A4GL00LF and D37S13A4GV00LF?
A: Both Amphenol ICC (FCI) parts maintain identical 37-position D-Sub receptacle specifications, shell size, mounting type, and solder termination. The primary distinction is flange configuration: D37S13A4GL00LF features housing/shell flange (M3), while D37S13A4GV00LF provides mating side female screwlock (4-40) flange design. Selection depends on the mating connector type and panel mount interface requirements in the target application.
Q: Does the Amphenol ICC 6E17C037SAJ120 provide equivalent performance to the original TE Connectivity part?
A: The 6E17C037SAJ120 maintains 37-position D-Sub receptacle configuration with active product status and full compliance certifications. However, two parameters differ significantly: backset spacing of 0.318" (8.08mm) versus the original 0.406" (10.30mm), and current rating of 5A versus the original 6A. These differences may affect mechanical fit in existing panel mount designs and reduce current-carrying capacity. This part is suitable only where mechanical constraints and reduced current requirements are acceptable.
Q: Are all substitute parts RoHS compliant?
A: All identified substitute parts carry ROHS3 compliance or RoHS compliance certification. The original TE Connectivity 1-106508-2 carries ROHS3 compliance. HARTING parts carry ROHS3 compliance with REACH unaffected status. Amphenol ICC D37S13A4GL00LF and D37S13A4GV00LF carry RoHS compliance with REACH unaffected status. Amphenol ICC 6E17C037SAJ120 carries ROHS3 compliance with vendor-undefined REACH status.
Q: What is the significance of contact finish thickness specifications?
A: The original TE Connectivity 1-106508-2 specifies 30.0µin (0.76µm) gold contact finish thickness. Amphenol ICC 6E17C037SAJ120 matches this specification exactly. Amphenol ICC D37S13A4GL00LF and D37S13A4GV00LF specify flash gold finish thickness, which provides thinner gold plating. Flash finish is suitable for solder termination applications where contact durability requirements are moderate. HARTING substitute parts do not specify contact finish thickness, indicating manufacturer-standard specifications.
Q: How do operating temperature ranges compare across substitute options?
A: The original TE Connectivity 1-106508-2 operates across -55°C to 105°C. HARTING 09644147242 operates -20°C to 125°C, providing reduced low-temperature capability but extended high-temperature range. HARTING 09664137603, 09664527613, 09664537613, and 09664566613 all operate -55°C to 125°C, matching the original low-temperature limit and exceeding high-temperature capability. Amphenol ICC 6E17C037SAJ120 operates -55°C to 105°C, matching the original specification exactly. Amphenol ICC D37S13A4GL00LF and D37S13A4GV00LF operate -55°C to 125°C, exceeding the original range.
Q: What packaging formats are available for substitute parts?
A: The original TE Connectivity 1-106508-2 carries unspecified packaging. HARTING substitute parts are supplied in bulk packaging. Amphenol ICC 6E17C037SAJ120 is supplied in tray packaging. Amphenol ICC D37S13A4GL00, D37S13A4GL00LF, D37S13A4GV00, and D37S13A4GV00LF are supplied in tray packaging. Packaging format affects handling, storage, and integration into manufacturing workflows. Verify packaging compatibility with receiving and assembly processes.
Q: Are substitute parts available in current inventory?
A: All identified substitute parts carry active product status with confirmed inventory availability. HARTING 09644147242: 890 pcs. HARTING 09664137603: 1104 pcs. HARTING 09664527613: 1140 pcs. HARTING 09664537613: 843 pcs. HARTING 09664566613: 1015 pcs. Amphenol ICC 6E17C037SAJ120: 1556 pcs. Amphenol ICC D37S13A4GL00: 1151 pcs. Amphenol ICC D37S13A4GL00LF: 896 pcs. Amphenol ICC D37S13A4GV00: 1173 pcs. Amphenol ICC D37S13A4GV00LF: 1108 pcs. Inventory levels support immediate procurement for design transitions.
