TE Connectivity 1-104482-0 Rectangular Connector Housing Equivalent & Substitute Parts

Part Overview

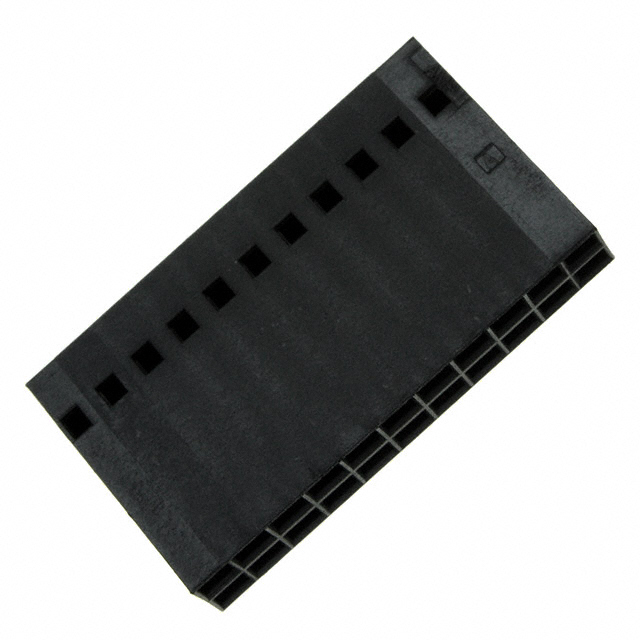

The TE Connectivity 1-104482-0 is a 22-position rectangular connector receptacle housing designed for 0.100" (2.54mm) pitch applications. This component functions as a female socket housing for in-line, free-hanging connector assemblies and is classified as an active product. The housing accommodates crimp-terminated contacts and is constructed from thermoplastic insulation material rated for -65°C to 125°C operation.

Substitute parts are identified when equivalent rectangular connector housings share identical core electrical and mechanical parameters: 22 positions, 2-row configuration, 0.100" (2.54mm) pitch, 0.100" row spacing, receptacle type with female socket contacts, crimp termination, free-hanging mounting, and RoHS compliance with MSL 1 rating.

Key Parameters

Parameter	Value
Connector Type	Receptacle
Contact Type	Female Socket
Number of Positions	22
Pitch	0.100" (2.54mm)
Number of Rows	2
Row Spacing	0.100" (2.54mm)
Mounting Type	Free Hanging (In-Line)
Contact Termination	Crimp
Connector Category	Rectangular Connectors
RoHS Status	RoHS Compliant
Moisture Sensitivity Level	1 (Unlimited)

Substitute Part Grouping Explanation

Substitute parts for the TE Connectivity 1-104482-0 are qualified based on strict parametric equivalence across the following criteria:

Core Electrical Parameters:

Connector type: Receptacle
Contact type: Female socket
Number of positions: 22
Pitch: 0.100" (2.54mm)
Row configuration: 2 rows with 0.100" spacing

Core Mechanical Parameters:

Mounting type: Free hanging (in-line)
Contact termination: Crimp
Packaging: Bulk

Compliance Parameters:

RoHS compliance status
Moisture sensitivity level: 1 (unlimited)

All identified substitute parts meet these core requirements. Variations in insulation material composition, operating temperature range, color, and manufacturer series do not disqualify substitution when all core parameters align. Parts are sourced from established manufacturers including TE Connectivity, Molex, Amphenol ICC (FCI), and Harwin Inc.

Parameter Comparison

Manufacturer Part Number	Manufacturer	Series	Positions	Pitch	Rows	Row Spacing	Color	Insulation Material	Operating Temperature	RoHS Status	Inventory (Pcs)
1-104482-0	TE Connectivity AMP Connectors	AMPMODU	22	0.100" (2.54mm)	2	0.100" (2.54mm)	Black	Thermoplastic	-65°C ~ 125°C	RoHS Compliant	925
1-87456-7	TE Connectivity AMP Connectors	AMPMODU Mod IV	22	0.100" (2.54mm)	2	0.100" (2.54mm)	Black	Polyamide (PA), Nylon, Glass Filled	-65°C ~ 105°C	RoHS Compliant	1071
0022552223	Molex	SL 70450	22	0.100" (2.54mm)	2	0.100" (2.54mm)	Black	Polyester, Glass Filled	-40°C ~ 105°C	ROHS3 Compliant	3318
65043-026LF	Amphenol ICC (FCI)	Mini-PV™, Basics+	22	0.100" (2.54mm)	2	0.100" (2.54mm)	Black	Polyphenylene, Modified	-40°C ~ 105°C	RoHS Compliant	876
65239-011LF	Amphenol ICC (FCI)	DUBOX™, MezzSelect™, Basics+	22	0.100" (2.54mm)	2	0.100" (2.54mm)	Blue	Thermoplastic, Glass Filled	-65°C ~ 125°C	RoHS Compliant	3064
M20-1071100	Harwin Inc.	M20	22	0.100" (2.54mm)	2	0.100" (2.54mm)	Black	Polyphenylene Ether (PPE), Polystyrene (PS)	-25°C ~ 85°C	ROHS3 Compliant	1797

Engineering Selection Recommendations

Primary Equivalent (Same Manufacturer): The TE Connectivity 1-87456-7 represents the closest equivalent within the same manufacturer family. Both parts share identical core specifications and are manufactured by TE Connectivity AMP Connectors. The 1-87456-7 operates within a narrower temperature range (-65°C to 105°C versus -65°C to 125°C) and uses glass-filled polyamide insulation instead of thermoplastic. Both maintain RoHS compliance and MSL 1 rating. This part is suitable for direct substitution in applications where the reduced upper operating temperature limit does not conflict with system requirements.

Cross-Manufacturer Equivalents: The Molex 0022552223, Amphenol ICC 65043-026LF, and Harwin M20-1071100 all meet core parametric requirements. Each maintains the 22-position, 2.54mm pitch configuration with crimp termination and free-hanging mounting. Selection among these alternatives depends on application-specific temperature requirements and existing supply chain relationships.

Color Variant Consideration: The Amphenol ICC 65239-011LF is functionally equivalent but features blue insulation instead of black. This part maintains the widest operating temperature range (-65°C to 125°C) matching the original 1-104482-0 specification. Selection of this variant is appropriate when color coding is required for circuit identification or when thermal performance matching the original specification is critical.

Temperature-Constrained Applications: The Harwin M20-1071100 operates within a reduced temperature range (-25°C to 85°C). This part is suitable only for applications where ambient and operational temperatures remain within this narrower band.

All substitute parts carry active product status and current RoHS compliance certifications, confirming ongoing manufacturer support and regulatory alignment.

Frequently Asked Questions (FAQ)

Q: What determines whether a rectangular connector housing can substitute for the TE Connectivity 1-104482-0?

A: Substitution is valid when the alternative part maintains identical specifications for: 22 positions, 0.100" (2.54mm) pitch, 2-row configuration with 0.100" row spacing, receptacle type with female socket contacts, crimp termination, free-hanging mounting, and RoHS compliance with MSL 1 rating. Variations in insulation material, color, and operating temperature do not prevent substitution provided the application requirements align with the substitute part's specifications.

Q: Can I use the Amphenol ICC 65239-011LF (blue housing) as a direct replacement for the black TE Connectivity 1-104482-0?

A: Yes, the 65239-011LF is parametrically equivalent and maintains identical electrical and mechanical specifications. The primary difference is housing color (blue versus black). This part is suitable for direct substitution in applications where color coding is acceptable or beneficial. The 65239-011LF also matches the original part's operating temperature range (-65°C to 125°C).

Q: Are there inventory availability differences among the substitute parts?

A: Yes. Current inventory levels vary: TE Connectivity 1-104482-0 (925 pcs), TE Connectivity 1-87456-7 (1071 pcs), Molex 0022552223 (3318 pcs), Amphenol ICC 65043-026LF (876 pcs), Amphenol ICC 65239-011LF (3064 pcs), and Harwin M20-1071100 (1797 pcs). Inventory availability should be verified at time of procurement.

Q: What is the impact of using the Harwin M20-1071100 in a high-temperature application?

A: The Harwin M20-1071100 operates within a reduced temperature range (-25°C to 85°C) compared to the original 1-104482-0 (-65°C to 125°C). This part is not suitable for applications requiring operation below -25°C or above 85°C. Alternative substitutes with wider temperature ratings should be selected for such applications.

Q: Do all substitute parts require the same contact specifications?

A: Yes. All substitute parts are receptacle housings with female socket contacts designed for crimp termination. The note "Contacts Not Included" applies to all parts listed. Contact selection and specifications must be verified independently to ensure compatibility with the connector housing and application requirements.

Q: What is the significance of RoHS3 compliance versus RoHS compliance on the substitute parts?

A: Both RoHS and ROHS3 designations indicate compliance with Restriction of Hazardous Substances regulations. ROHS3 represents the current regulatory standard. All substitute parts meet applicable RoHS requirements and are suitable for use in regulated applications. Specific regulatory requirements for your application should be confirmed with your compliance team.

Q: Can I mix substitute parts from different manufacturers in the same assembly?

A: Yes. All substitute parts meet identical core electrical and mechanical specifications for the 22-position, 2.54mm pitch rectangular connector housing category. Parts from different manufacturers can be used interchangeably provided the application requirements align with each part's operating specifications. Mechanical fit and contact compatibility should be verified during assembly.
