TE Connectivity 1-103648-4 Rectangular Connector Receptacle Housing Equivalent & Substitute Parts

Part Overview

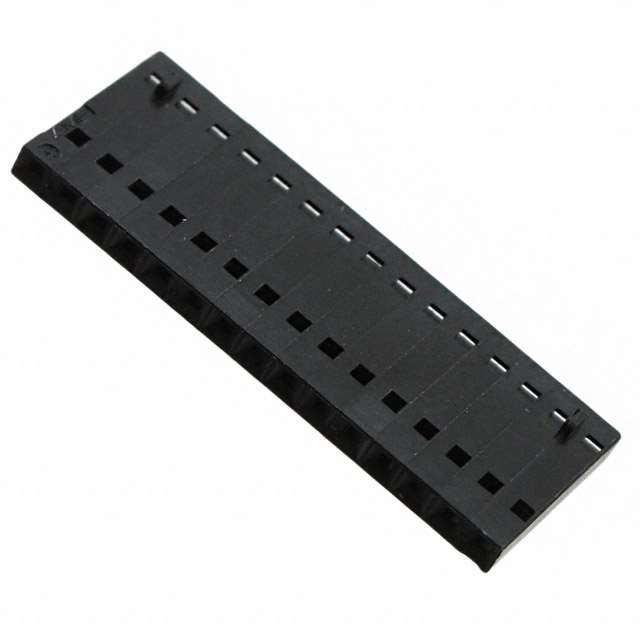

The TE Connectivity 1-103648-4 is a 15-position rectangular connector receptacle housing with 0.100" (2.54mm) pitch, designed for free-hanging in-line mounting applications. This component belongs to the AMPMODU MTE series and features crimp-type female socket contacts with thermoplastic insulation. The part is currently active in production status with RoHS compliance and unlimited moisture sensitivity rating. Substitute parts are identified when equivalent electrical and mechanical parameters are required for design flexibility, inventory management, or supply chain continuity.

Key Parameters

Parameter	Value
Connector Type	Receptacle
Contact Type	Female Socket
Number of Positions	15
Pitch	0.100" (2.54mm)
Number of Rows	1
Mounting Type	Free Hanging (In-Line)
Contact Termination	Crimp
Color	Black
Operating Temperature Range	-65°C ~ 105°C
Moisture Sensitivity Level	1 (Unlimited)
RoHS Status	RoHS Compliant

Substitute Part Grouping Explanation

Substitute parts for the TE Connectivity 1-103648-4 are qualified based on the following critical parameters that must remain constant across all equivalent components:

Mandatory Matching Parameters:

Connector Type: Receptacle
Contact Type: Female Socket
Number of Positions: 15
Pitch: 0.100" (2.54mm)
Number of Rows: 1
Mounting Type: Free Hanging (In-Line)
Contact Termination: Crimp
Moisture Sensitivity Level: 1 (Unlimited)

Variable Parameters Permitted in Substitutes:

Manufacturer and series designation
Insulation material composition
Operating temperature range (minimum -40°C acceptable; maximum 105°C or higher acceptable)
Housing color (black or alternative colors)
RoHS compliance version (RoHS Compliant or ROHS3 Compliant)

All identified substitute parts maintain electrical and mechanical compatibility with the original TE Connectivity 1-103648-4 within the specified parameter constraints.

Parameter Comparison

Parameter	TE Connectivity 1-103648-4	Molex 0050579015	Molex 0050579315	Amphenol ICC 65039-022LF	Amphenol ICC 65240-015LF
Manufacturer	TE Connectivity AMP Connectors	Molex	Molex	Amphenol ICC (FCI)	Amphenol ICC (FCI)
Series	AMPMODU MTE	SL 70066	SL 70066	Mini-PV™, Basics+	DUBOX™, MezzSelect™, Basics+
Connector Type	Receptacle	Receptacle	Receptacle	Receptacle	Receptacle
Contact Type	Female Socket	Female Socket	Female Socket	Female Socket	Female Socket
Number of Positions	15	15	15	15	15
Pitch	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Number of Rows	1	1	1	1	1
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)	Free Hanging (In-Line)	Free Hanging (In-Line)	Free Hanging (In-Line)
Contact Termination	Crimp	Crimp	Crimp	Crimp	Crimp
Color	Black	Black	Black	Black	Blue
Insulation Material	Thermoplastic	Polyester, Glass Filled	Polyester, Glass Filled	Polyphenylene, Modified	Thermoplastic, Glass Filled
Operating Temperature Range	-65°C ~ 105°C	-40°C ~ 105°C	-40°C ~ 105°C	-40°C ~ 105°C	-65°C ~ 125°C
Moisture Sensitivity Level	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)
RoHS Status	RoHS Compliant	ROHS3 Compliant	ROHS3 Compliant	RoHS Compliant	RoHS Compliant
Product Status	Active	Active	Active	Active	Active

Engineering Selection Recommendations

All identified substitute parts maintain active product status and comply with applicable environmental regulations. Selection among equivalent components should be based on the following engineering considerations:

TE Connectivity 1-103648-4 (Original): Maintains the widest operating temperature range (-65°C to 105°C) and is RoHS Compliant. Thermoplastic insulation material provides baseline performance characteristics.

Molex 0050579015 and 0050579315: Both parts are ROHS3 Compliant with polyester glass-filled insulation. Operating temperature range is -40°C to 105°C, which is acceptable for applications not requiring sub-zero performance below -40°C. These parts offer equivalent electrical and mechanical performance within their specified temperature envelope.

Amphenol ICC 65039-022LF: RoHS Compliant with polyphenylene modified insulation. Operating temperature range is -40°C to 105°C. This part is suitable for applications with identical temperature constraints as the Molex alternatives.

Amphenol ICC 65240-015LF: RoHS Compliant with thermoplastic glass-filled insulation and the highest operating temperature range (-65°C to 125°C). Housing color is blue rather than black. This part provides extended high-temperature capability and matches the original part's low-temperature performance. Color difference must be evaluated for application requirements.

All substitute parts are active in production and carry appropriate compliance certifications. Selection should prioritize application-specific temperature requirements and visual identification needs.

Frequently Asked Questions (FAQ)

Q: Can Molex 0050579015 and 0050579315 be used interchangeably with TE Connectivity 1-103648-4?

A: Both Molex parts are electrically and mechanically equivalent to the TE Connectivity 1-103648-4 for applications operating between -40°C and 105°C. The original part supports operation down to -65°C. If your application requires operation below -40°C, the Molex parts are not suitable substitutes.

Q: What is the difference between Molex 0050579015 and 0050579315?

A: Both parts are from the Molex SL 70066 series with identical electrical and mechanical specifications. They share the same operating temperature range, insulation material, and compliance certifications. The part numbers reflect different manufacturing or inventory designations within the same product line.

Q: Why is Amphenol ICC 65240-015LF listed as a substitute if it has a different color?

A: The 65240-015LF is electrically and mechanically equivalent to the TE Connectivity 1-103648-4 and offers superior operating temperature range (-65°C to 125°C). The blue housing color is the only visual difference. This part is suitable for applications where color coding is not a functional requirement or where blue identification is acceptable.

Q: Are all substitute parts RoHS compliant?

A: Yes. The original TE Connectivity 1-103648-4 is RoHS Compliant. Molex parts are ROHS3 Compliant. Amphenol ICC parts are RoHS Compliant. All parts meet applicable environmental compliance standards.

Q: Do substitute parts include contacts?

A: No. All parts listed, including the original TE Connectivity 1-103648-4 and all substitute parts, are housings only. Contacts are not included and must be ordered separately.

Q: What is the significance of the Moisture Sensitivity Level (MSL) rating?

A: All listed parts carry MSL 1 (Unlimited) rating, indicating unlimited shelf life without special moisture control measures. This parameter is identical across all parts and does not differentiate substitution options.

Q: Can I use Amphenol ICC 65039-022LF in place of the original part for all applications?

A: The 65039-022LF is suitable for applications operating between -40°C and 105°C. If your application requires operation below -40°C, this part is not appropriate. For applications within this temperature range, it provides equivalent electrical and mechanical performance.
