TE Connectivity AMP Connectors 1103244-1 Equivalent & Substitute Parts

Part Overview

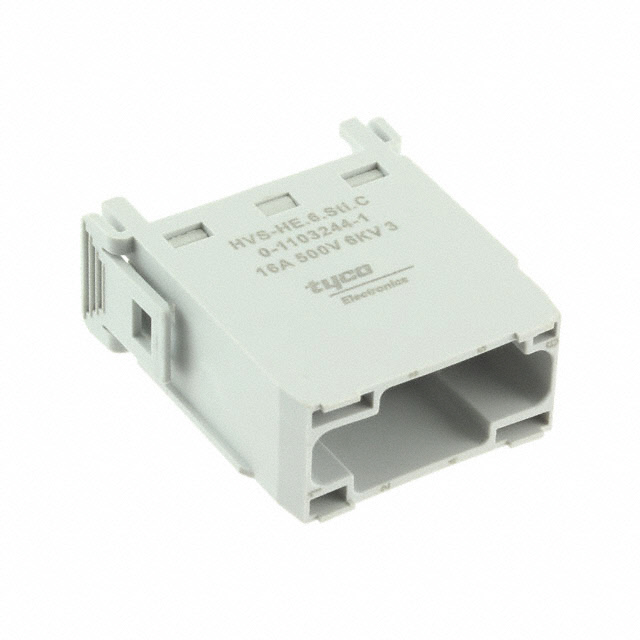

The TE Connectivity AMP Connectors 1103244-1 is a male module connector without contacts, designed for heavy-duty applications requiring 6-position crimp termination. This component is classified as obsolete, necessitating identification of active equivalent parts to maintain system compatibility and ensure continued availability for new designs and field replacements.

The 1103244-1 operates at 500V with a 16A current rating and features a polycarbonate glass-filled housing in gray. As an obsolete product, sourcing alternatives from active product lines is essential for procurement continuity and long-term supply chain reliability.

Substiute Parts

1103244-1

TE Connectivity AMP ConnectorsIn Stock: 10281103244-1 Datasheet

Current PartRFQ

09140063001

HARTINGIn Stock: 495709140063001 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the 1103244-1 is determined by strict alignment of the following critical parameters:

Mandatory Matching Parameters:

• Connector Type: Module without Contacts
• Gender: Male
• Number of Positions: 6
• Termination Style: Crimp
• Current Rating: 16A (minimum)
• Color: Gray
• Moisture Sensitivity Level: 1 (Unlimited)

Acceptable Parameter Variations:

• Voltage Rating: Substitute must equal or exceed 500V
• Housing Material: Polycarbonate (PC) with or without glass fill
• Product Status: Active substitutes preferred for supply continuity
• RoHS Compliance: ROHS3 Compliant required

The HARTING 09140063001 satisfies all mandatory parameters and exceeds voltage and operating temperature specifications, qualifying it as a direct functional equivalent.

Parameter Comparison

Engineering Selection Recommendations

Primary Substitute: HARTING 09140063001

The HARTING 09140063001 is the qualified equivalent for the obsolete TE Connectivity 1103244-1. Selection rationale:

1. Functional Equivalence: All mandatory parameters align precisely, including 6-position male crimp module configuration, 16A current capacity, and gray polycarbonate housing.

2. Electrical Performance: The substitute's 600V rating exceeds the original 500V specification, providing enhanced electrical margin for the application.

3. Compliance Status: Both components maintain ROHS3 compliance and MSL 1 (Unlimited) moisture sensitivity rating, ensuring regulatory and environmental compatibility.

4. Supply Continuity: The HARTING part maintains active product status with 4,928 units in stock, contrasting with the obsolete 1103244-1 status. This ensures long-term procurement availability.

5. Series Compatibility: The HARTING Han® E series represents an active product line with established supply chain infrastructure.

Frequently Asked Questions (FAQ)

Q: Can the HARTING 09140063001 directly replace the TE Connectivity 1103244-1 in existing assemblies?

A: Yes. Both components are 6-position male crimp modules with identical current ratings (16A), termination style, and housing color. The HARTING part's higher voltage rating (600V vs. 500V) and specified operating temperature range (-40°C ~ 125°C) provide equivalent or superior performance characteristics.

Q: What is the significance of the obsolete status of the 1103244-1?

A: Obsolete status indicates the TE Connectivity part is no longer manufactured or supported by the vendor. Transitioning to the active HARTING 09140063001 ensures access to current inventory, technical support, and future availability for production and field service requirements.

Q: Are there differences in housing material between the two parts?

A: The TE Connectivity 1103244-1 uses polycarbonate with glass fill, while the HARTING 09140063001 uses standard polycarbonate. Both materials provide equivalent mechanical and electrical performance for this connector class. The glass-filled variant in the original part offers marginal stiffness enhancement, which is not functionally required for the 6-position crimp module application.

Q: How do the packaging formats differ?

A: The TE Connectivity 1103244-1 is supplied in unspecified packaging with 965 units in stock. The HARTING 09140063001 is supplied in bulk packaging with 4,928 units available. Bulk packaging is standard for heavy-duty connector modules and does not affect component functionality or compatibility.

Q: What compliance certifications apply to both parts?

A: Both the 1103244-1 and 09140063001 are ROHS3 compliant. The HARTING part additionally specifies REACH Unaffected status, confirming compliance with chemical substance regulations. Both maintain MSL 1 (Unlimited) moisture sensitivity classification, indicating no special storage or handling requirements.

Q: Are the contact types interchangeable?

A: The TE Connectivity part uses HE/HA contact type, while the HARTING part uses Han® contact type. Both are crimp-style contacts rated for 16A operation. Contact compatibility depends on mating connector specifications; verify that the mating female connector accepts the Han® contact type when substituting.
