TE Connectivity Corcom Filters 10EEAP Power Entry Connector Equivalent & Substitute Parts

Part Overview

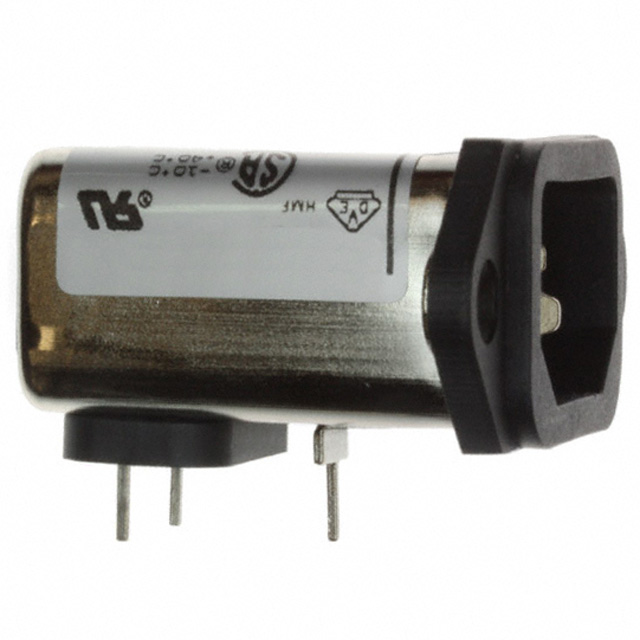

The TE Connectivity Corcom Filters 10EEAP is a power entry connector receptacle designed for IEC 320-C14 applications. This component functions as a filtered AC power inlet with male blades, panel-mounted configuration, and right-angle through-hole termination. The 10EEAP operates at 10A current rating with commercial-grade EMI/RFI filtering.

The 10EEAP is classified as obsolete. Identifying equivalent and substitute parts is necessary to maintain design continuity, ensure supply chain availability, and support ongoing production requirements for applications utilizing this connector style.

Substiute Parts

10EEAP

TE Connectivity Corcom FiltersIn Stock: 83310EEAP Datasheet

Current PartRFQ

1-6609006-5

TE Connectivity Corcom FiltersIn Stock: 8531-6609006-5 Datasheet

MFR RecommendedRFQ

FN9226-10-02

Schaffner EMC Inc.In Stock: 727FN9226-10-02 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the 10EEAP is determined by strict alignment of the following electrical and mechanical parameters:

Electrical Compatibility Criteria:

• Connector style: IEC 320-C14 (mandatory match)
• Connector type: Receptacle, Male Blades (mandatory match)
• Number of positions: 3 (mandatory match)
• Filter type: Filtered (EMI, RFI) - Commercial (mandatory match)
• Current rating: 10A (mandatory match)

Mechanical Compatibility Criteria:

• Mounting type: Panel Mount, Flange; Through Hole, Right Angle (mandatory match)
• Termination method: Solder (mandatory match)
• Panel cutout dimensions: Rectangular configuration (critical for panel integration)

Regulatory Compliance Criteria:

• Approval agencies: CSA, UL, VDE certifications required
• RoHS3 compliance required

Two substitute parts meet these criteria:

1. TE Connectivity Corcom Filters 1-6609006-5 (MFR Recommended): Active product status with identical electrical specifications and matching mechanical configuration.

2. Schaffner EMC Inc. FN9226-10-02 (Similar): Active product status with matching electrical specifications; panel cutout dimensions differ slightly (34.40mm x 22.60mm versus 30.48mm x 22.90mm).

Parameter Comparison

Engineering Selection Recommendations

Primary Substitute: TE Connectivity Corcom Filters 1-6609006-5

The 1-6609006-5 is the manufacturer-recommended substitute for the obsolete 10EEAP. This part maintains active product status and provides identical electrical specifications (10A current rating, IEC 320-C14 connector style, 3-position receptacle with male blades, commercial EMI/RFI filtering). Panel cutout dimensions are functionally equivalent (30.48mm x 22.86mm versus 30.48mm x 22.90mm, representing a 0.04mm difference). Both parts carry CSA, UL, and VDE approvals and maintain ROHS3 compliance. The 1-6609006-5 is supplied in bulk packaging with 781 units in stock.

Secondary Substitute: Schaffner EMC Inc. FN9226-10-02

The FN9226-10-02 provides functional equivalence with identical electrical specifications and mounting configuration. This part is active and carries CSA, ENEC, SEMKO, and UL approvals. Panel cutout dimensions differ (34.40mm x 22.60mm), requiring panel modification for installation. The FN9226-10-02 includes additional specifications: UL94 V-2 material flammability rating and IP40 ingress protection. This part is supplied in tray packaging with 691 units in stock.

Selection between these substitutes depends on panel integration requirements. The 1-6609006-5 requires minimal design modification. The FN9226-10-02 requires panel cutout adjustment but provides enhanced environmental protection specifications.

Frequently Asked Questions (FAQ)

Q: Can the 1-6609006-5 directly replace the 10EEAP without panel modification?

A: Yes. The panel cutout dimensions are functionally equivalent (30.48mm x 22.86mm versus 30.48mm x 22.90mm). This 0.04mm difference is within standard manufacturing tolerances for panel cutout specifications.

Q: What is the primary difference between the 1-6609006-5 and FN9226-10-02?

A: Both parts provide identical electrical functionality and current rating. The primary difference is panel cutout dimensions. The 1-6609006-5 maintains the original 30.48mm x 22.90mm cutout specification. The FN9226-10-02 requires a larger cutout (34.40mm x 22.60mm), necessitating panel modification. The FN9226-10-02 includes additional environmental specifications (UL94 V-2 flammability rating and IP40 ingress protection).

Q: Are all three parts certified to the same regulatory standards?

A: All three parts carry UL and CSA approvals. The 10EEAP and 1-6609006-5 carry VDE approval. The FN9226-10-02 carries ENEC and SEMKO approvals in addition to UL and CSA. All parts maintain ROHS3 compliance.

Q: What is the difference between the EEA series (10EEAP) and EEJ series (1-6609006-5)?

A: Both are TE Connectivity Corcom Filters products with identical electrical and mechanical specifications. The EEJ series (1-6609006-5) represents the active product line replacement for the obsolete EEA series (10EEAP).

Q: Does packaging type affect electrical or mechanical compatibility?

A: No. The 10EEAP is supplied in standard packaging, the 1-6609006-5 in bulk packaging, and the FN9226-10-02 in tray packaging. Packaging type does not affect connector functionality, electrical performance, or mechanical compatibility.

Q: What is the current inventory status for these parts?

A: The 10EEAP has 763 units in stock (obsolete status). The 1-6609006-5 has 781 units in stock (active status). The FN9226-10-02 has 691 units in stock (active status).
