LINE FILTER 10DWCG5 Equivalent & Substitute Parts

Part Overview

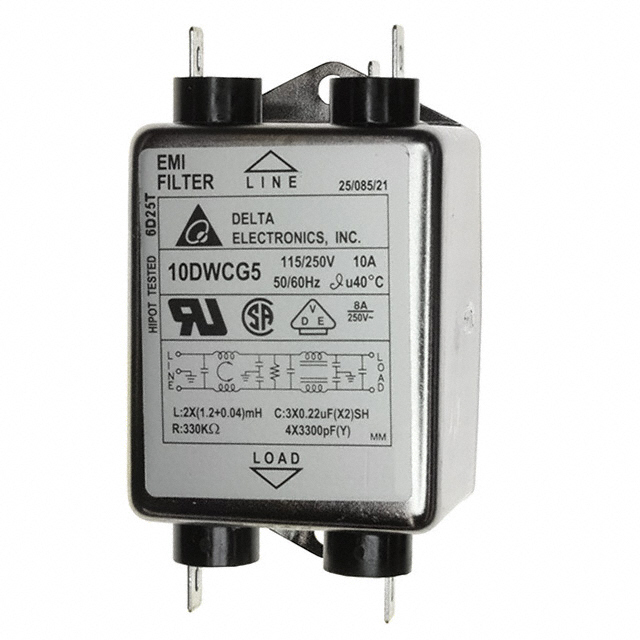

The Delta Electronics 10DWCG5 is a single-phase EMC/EMI line filter rated for 10 A at 115V and 250VAC, operating at 50/60Hz. This chassis-mount filter features a two-stage configuration with quick-connect termination, designed for general-purpose applications requiring electromagnetic compatibility filtering. The part maintains active product status with 807 units in current inventory. Substitute parts are identified when equivalent electrical performance, mechanical compatibility, and regulatory compliance can be maintained across different manufacturer offerings.

Substiute Parts

10DWCG5

Delta ElectronicsIn Stock: 86210DWCG5 Datasheet

Current PartRFQ

FN2060-10-06

Schaffner EMC Inc.In Stock: 3384FN2060-10-06 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the 10DWCG5 is determined by the following critical parameters:

• Single-phase filter configuration with two-stage topology
• 10 A current capacity
• Chassis-mount mechanical form factor
• Quick-connect termination interface
• Operating temperature range of -25°C to 100°C
• ROHS3 compliance and international regulatory certifications

The Schaffner EMC Inc. FN2060-10-06 qualifies as a substitute based on matching filter type, configuration, current rating, mounting style, termination method, temperature range, and RoHS compliance. Voltage rating differences (250V vs. 115V/250V) do not preclude substitution when the application operates within the substitute's rated voltage envelope.

Parameter Comparison

Engineering Selection Recommendations

Both the 10DWCG5 and FN2060-10-06 maintain active product status and ROHS3 compliance. The 10DWCG5 carries CSA, UR, and VDE certifications, while the FN2060-10-06 carries CE, CSA, ENEC, and UR certifications. Selection between these parts should be based on specific regulatory requirements for the target application region and the voltage operating envelope. The FN2060-10-06 supports an extended frequency range (DC ~ 400Hz) compared to the 10DWCG5 (50/60Hz), providing broader operational flexibility in applications requiring variable frequency operation. Packaging format differs between the two parts (Box vs. Tray), which may affect procurement and handling procedures.

Frequently Asked Questions (FAQ)

Q: Can the FN2060-10-06 replace the 10DWCG5 in all applications?

A: The FN2060-10-06 is electrically and mechanically compatible when the application operates at 250VAC. Applications requiring 115VAC operation must use the 10DWCG5, as the substitute is rated for 250V only. Both parts share identical current capacity, mounting style, termination interface, and temperature range.

Q: What is the difference in frequency operating range between these parts?

A: The 10DWCG5 operates at 50/60Hz, suitable for standard AC power systems. The FN2060-10-06 operates from DC to 400Hz, enabling use in variable frequency drive (VFD) and DC power applications. This extended range does not limit substitution in 50/60Hz applications.

Q: Are the regulatory certifications equivalent?

A: Both parts hold CSA and UR certifications. The 10DWCG5 includes VDE certification, while the FN2060-10-06 includes CE and ENEC certifications. Regional regulatory requirements determine which certifications are necessary for your application.

Q: Does packaging format affect electrical performance?

A: No. The 10DWCG5 ships in Box packaging while the FN2060-10-06 ships in Tray packaging. Packaging format affects only procurement, storage, and handling procedures, not electrical or mechanical function.

Q: What inductance values are specified for these filters?

A: The 10DWCG5 specifies L1 at 1.2mH and L2 at 40mH. The FN2060-10-06 specifies 800µH total inductance. Both values are provided in the component specifications; verify inductance requirements against your circuit design before substitution.
