LINE FILTER 10DRCS5 Equivalent & Substitute Parts

Part Overview

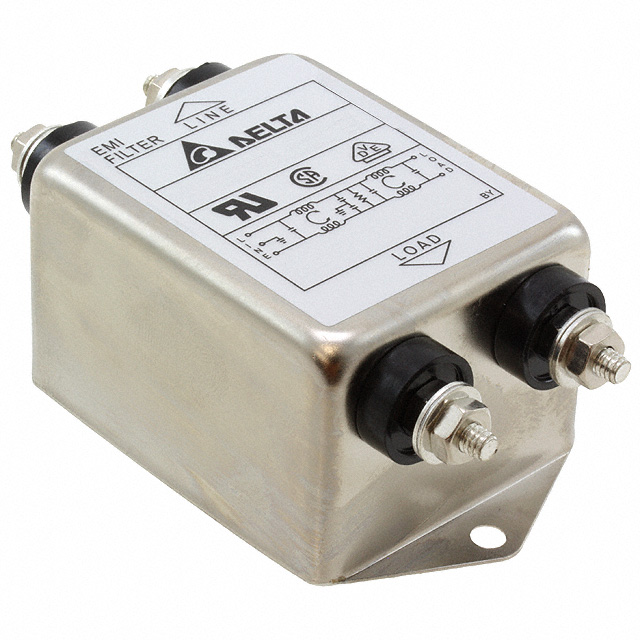

The 10DRCS5 is a single-phase EMC/EMI line filter manufactured by Delta Electronics, rated for 10A operation at 115V and 250VAC with 50/60Hz frequency support. This chassis-mount filter features a two-stage configuration with threaded post termination (8-32) and is designed for general-purpose applications requiring electromagnetic compatibility filtering. The part maintains Active product status with full RoHS3 compliance and CSA, UR, and VDE approvals. Substitute parts are identified when equivalent electrical and mechanical parameters align within the allowed specifications for this filter category.

Substiute Parts

10DRCS5

Delta ElectronicsIn Stock: 88010DRCS5 Datasheet

Current PartRFQ

10VR6

TE Connectivity Corcom FiltersIn Stock: 81110VR6 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

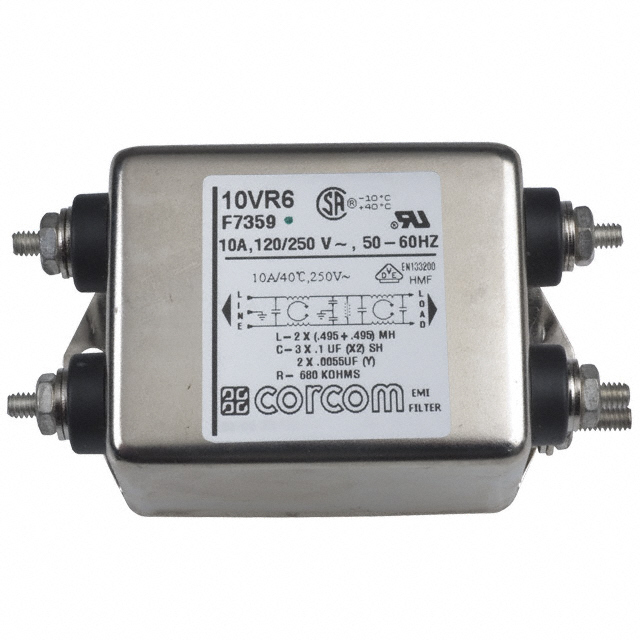

The 10VR6 manufactured by TE Connectivity Corcom Filters qualifies as a substitute based on the following alignment of critical electrical and mechanical parameters:

Matching Parameters:

• Filter Type: Single Phase
• Configuration: Two Stage
• Current Rating: 10 A
• Frequency - Operating: 50/60Hz
• Mounting Type: Chassis Mount
• Termination Style: Threaded Post (8-32)
• Approval Agencies: CSA, UR, VDE
• RoHS Status: RoHS3 Compliant

Voltage Consideration: The 10VR6 is rated for 250VAC operation. The 10DRCS5 supports both 115V and 250VAC. When 250VAC operation is required, the 10VR6 provides equivalent voltage coverage within the overlapping specification range.

Parameter Comparison

Engineering Selection Recommendations

Both the 10DRCS5 and 10VR6 maintain Active product status and carry identical regulatory approvals (CSA, UR, VDE). Selection between these parts depends on specific application requirements:

Select 10DRCS5 when:

• 115VAC operation is required
• Operating temperature range of -25°C to 100°C is necessary
• Extended temperature performance is a design constraint

Select 10VR6 when:

• Application operates exclusively at 250VAC
• Operating temperature range of -10°C to 40°C is acceptable
• TE Connectivity Corcom supply chain or inventory availability is preferred

Both parts satisfy RoHS3 compliance requirements and carry equivalent regulatory certifications for general-purpose EMC/EMI filtering applications.

Frequently Asked Questions (FAQ)

Q: Can the 10VR6 replace the 10DRCS5 in all applications?

A: The 10VR6 is suitable for replacement only in applications operating at 250VAC. If your system requires 115VAC operation, the 10VR6 does not provide equivalent voltage coverage and is not a valid substitute.

Q: Are the inductance values different between these parts?

A: Yes. The 10DRCS5 has 1mH inductance while the 10VR6 has 990µH inductance. Both values are within typical single-phase filter specifications, but inductance differences may affect filtering performance characteristics in specific circuit designs.

Q: What is the operating temperature difference between these parts?

A: The 10DRCS5 operates from -25°C to 100°C, while the 10VR6 operates from -10°C to 40°C. The 10DRCS5 provides a wider temperature range suitable for industrial or extreme environment applications.

Q: Do both parts have identical regulatory approvals?

A: Yes. Both the 10DRCS5 and 10VR6 carry CSA, UR, and VDE approvals and are RoHS3 compliant, making them equivalent from a regulatory certification standpoint.

Q: Are the mechanical mounting specifications identical?

A: Yes. Both parts feature chassis mount configuration with threaded post (8-32) termination, ensuring mechanical compatibility in the same mounting footprint.

Q: What is the REACH compliance status difference?

A: The 10DRCS5 is REACH Unaffected, while the 10VR6 is REACH Affected. Applications subject to REACH regulations should verify compliance requirements with the respective manufacturer.
