LINE FILTER 10DPCG5 Equivalent & Substitute Parts

Part Overview

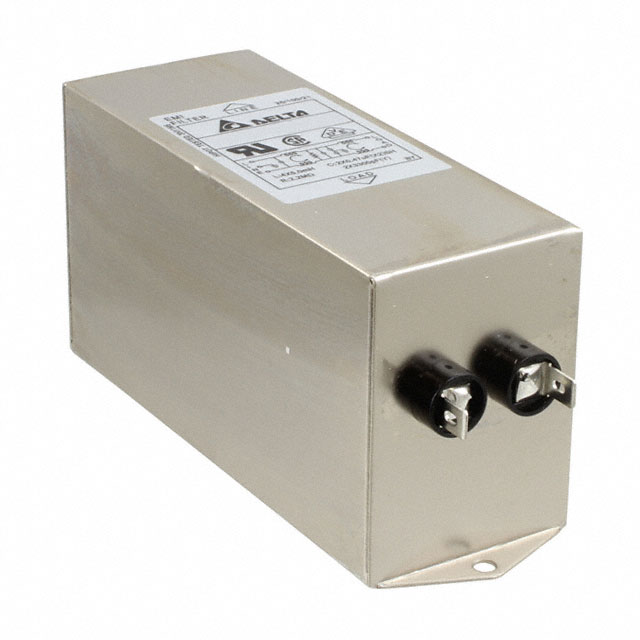

The Delta Electronics 10DPCG5 is a single-phase EMC/EMI line filter rated for 10 A at 115V and 250VAC, operating at 50/60Hz. This chassis-mount filter features a two-stage configuration with quick-connect termination, designed for general-purpose applications requiring electromagnetic compatibility filtering. The product maintains active status with full RoHS3 compliance and CSA, UR, and VDE approvals. Substitute parts are identified when equivalent electrical performance and mechanical compatibility can be maintained across the specified parameter range.

Substiute Parts

10DPCG5

Delta ElectronicsIn Stock: 83110DPCG5 Datasheet

Current PartRFQ

FN2070-10-06

Schaffner EMC Inc.In Stock: 1112FN2070-10-06 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

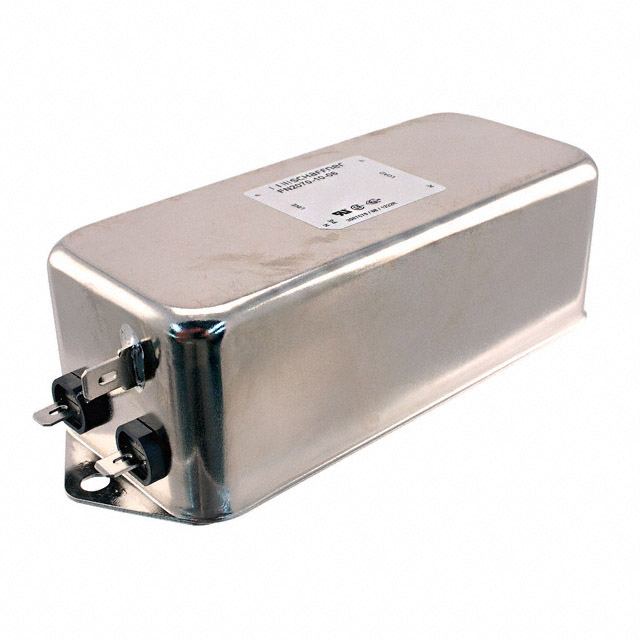

The Schaffner EMC Inc. FN2070-10-06 qualifies as a substitute based on the following alignment of critical parameters:

• Filter Type: Both are single-phase EMC/EMI line filters
• Configuration: Both employ two-stage filtering architecture
• Current Rating: Both rated at 10 A
• Voltage Compatibility: Main part operates at 115V/250VAC; substitute operates at 110V/250VAC (110V falls within the operational tolerance of 115V-rated equipment)
• Mounting & Termination: Both use chassis mount with quick-connect termination
• Compliance: Both maintain ROHS3 compliance and REACH unaffected status
• Product Status: Both are active products

The FN2070-10-06 extends frequency coverage to DC ~ 400Hz compared to the 50/60Hz specification of the 10DPCG5, providing broader operational capability without compromising the primary use case.

Parameter Comparison

Engineering Selection Recommendations

Both the 10DPCG5 and FN2070-10-06 maintain active product status with current manufacturing support. Selection between these parts should be based on:

• Voltage Specification: The 110V rating of the FN2070-10-06 is compatible with 115V-rated systems. If exact 115V matching is required, the 10DPCG5 is the primary choice.
• Frequency Requirements: The FN2070-10-06 supports extended frequency operation (DC ~ 400Hz) versus the 50/60Hz specification of the 10DPCG5. Applications requiring broader frequency coverage benefit from the Schaffner part.
• Regulatory Approvals: The 10DPCG5 carries VDE approval; the FN2070-10-06 carries ENEC approval. Verify regional compliance requirements for your application.
• Packaging: The 10DPCG5 is supplied in box packaging; the FN2070-10-06 is supplied in tray packaging. Confirm packaging compatibility with assembly processes.

Frequently Asked Questions (FAQ)

Q: Can the FN2070-10-06 operate at 115V if the 10DPCG5 is rated for 115V?

A: The FN2070-10-06 is rated for 110V operation. In applications where 115V is the nominal supply voltage, the 110V-rated filter operates within acceptable tolerance margins for industrial EMI filtering applications. However, if your system specification explicitly requires 115V matching, the 10DPCG5 is the appropriate selection.

Q: What is the significance of the extended frequency range (DC ~ 400Hz) in the FN2070-10-06?

A: The FN2070-10-06 supports operation from DC to 400Hz, whereas the 10DPCG5 is specified for 50/60Hz. This extended range allows the Schaffner part to function in variable-frequency drive (VFD) applications and other non-standard frequency environments. For standard 50/60Hz mains applications, both parts perform equivalently.

Q: Are the quick-connect terminations identical between these parts?

A: Both parts feature quick-connect termination and chassis-mount configuration. Physical connector compatibility should be verified during integration, as quick-connect standards may have dimensional variations between manufacturers.

Q: What is the difference in inductance specifications?

A: The FN2070-10-06 specifies 4.5mH inductance; the 10DPCG5 does not provide an inductance specification in the available data. Inductance affects filtering performance at specific frequency ranges. If inductance is a critical parameter for your application, contact the manufacturer for the 10DPCG5 specification.

Q: Do both parts meet the same compliance standards?

A: Both parts are ROHS3 compliant and REACH unaffected. The 10DPCG5 carries CSA, UR, and VDE approvals; the FN2070-10-06 carries CSA, ENEC, and UR approvals. Verify that the certifications of your selected part align with your regional and application-specific requirements.
