LINE FILTER 10DKAS5 Equivalent & Substitute Parts

Part Overview

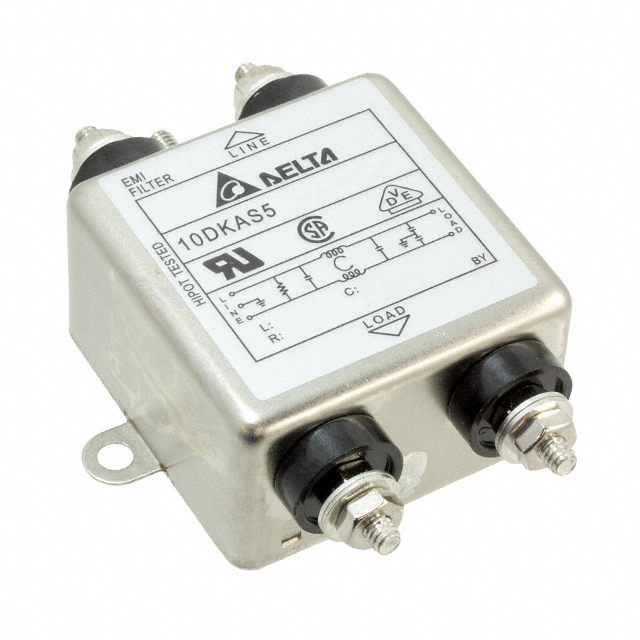

The 10DKAS5 is a single-phase EMC/EMI line filter manufactured by Delta Electronics, rated for 115V/250VAC at 10A with 50/60Hz operation. This chassis-mount filter is designed for general-purpose applications requiring electromagnetic compatibility filtering in industrial and commercial equipment. The part is currently active in production with 1,038 units in stock. Substitute parts are identified when equivalent electrical and mechanical specifications are required due to component availability, supply chain considerations, or design standardization across manufacturing platforms.

Substiute Parts

10DKAS5

Delta ElectronicsIn Stock: 108310DKAS5 Datasheet

Current PartRFQ

10VK6

TE Connectivity Corcom FiltersIn Stock: 98210VK6 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

The 10VK6 manufactured by TE Connectivity Corcom Filters qualifies as a substitute based on the following alignment of critical electrical and mechanical parameters:

Matching Parameters:

• Single-phase filter configuration with single-stage design
• 10A current rating
• 50/60Hz operating frequency
• Chassis-mount installation with threaded post (8-32) termination
• CSA, UR, VDE regulatory approvals
• ROHS3 compliance

Voltage Consideration: The 10DKAS5 supports dual voltage operation (115V/250VAC), while the 10VK6 is rated for 250VAC only. In applications requiring 115V operation exclusively, the 10VK6 remains functionally equivalent at the 250VAC rating. For systems requiring 115V capability, voltage compatibility must be verified against the specific application requirement.

Parameter Comparison

Engineering Selection Recommendations

Both the 10DKAS5 and 10VK6 meet the core electrical and mechanical requirements for single-phase EMC/EMI line filtering at 10A with identical regulatory certifications (CSA, UR, VDE) and ROHS3 compliance. Selection between these parts depends on specific application constraints:

10DKAS5 Selection Criteria:

• Applications requiring dual-voltage operation (115V or 250VAC)
• Extended operating temperature range (-25°C to 100°C)
• Higher inductance value (1.7mH) for specific filtering characteristics

10VK6 Selection Criteria:

• Applications operating exclusively at 250VAC
• Standard industrial temperature operating range (-10°C to 40°C)
• Lower inductance value (495µH) where reduced filtering inductance is acceptable

Both parts maintain active production status with adequate inventory availability.

Frequently Asked Questions (FAQ)

Q: Can the 10VK6 replace the 10DKAS5 in all applications?

A: The 10VK6 is electrically and mechanically compatible for applications operating at 250VAC. If the application requires 115V operation, the 10VK6 is not suitable as it is rated for 250VAC only. Verify the system voltage requirement before substitution.

Q: What is the significance of the inductance difference between these parts?

A: The 10DKAS5 has 1.7mH inductance while the 10VK6 has 495µH. Inductance affects the filtering characteristics and attenuation of electromagnetic interference. The specific inductance requirement depends on the application's EMI filtering specifications. Confirm that the lower inductance of the 10VK6 meets the filtering performance requirements of your design.

Q: Are both parts certified for the same regulatory standards?

A: Yes. Both the 10DKAS5 and 10VK6 carry CSA, UR, and VDE approvals and are ROHS3 compliant, making them suitable for equivalent regulatory compliance in applications requiring these certifications.

Q: What is the difference in operating temperature ranges?

A: The 10DKAS5 operates from -25°C to 100°C, while the 10VK6 operates from -10°C to 40°C. For applications in extreme temperature environments, the 10DKAS5 provides a wider operating range. Confirm that the 10VK6's temperature range is acceptable for your specific installation environment.

Q: Are the termination styles identical?

A: Yes. Both parts use threaded post (8-32) termination for chassis mounting, ensuring mechanical and electrical compatibility in the same mounting configuration.
