Equivalent & Substitute Parts for Delta Electronics 10DBAW5

Part Overview

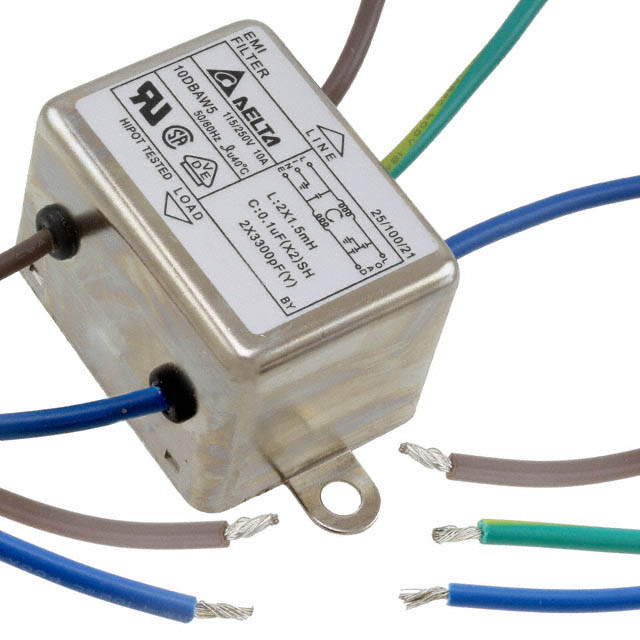

The Delta Electronics 10DBAW5 is a single-phase EMC/EMI line filter rated for 115V/250VAC at 10A with 50/60Hz operation. This chassis-mount filter with wire leads is designed for general-purpose applications requiring electromagnetic compatibility filtering. The part maintains active product status with 1042 units in current inventory. Substitute parts are identified when equivalent electrical specifications and mechanical compatibility allow direct replacement in the target application.

Key Parameters

Parameter	Value
Filter Type	Single Phase
Configuration	Single Stage
Voltage - Rated AC	115V, 250V
Current Rating	10 A
Frequency - Operating	50/60Hz
Mounting Type	Chassis Mount
Termination Style	Wire Leads
Operating Temperature Range	-25°C ~ 100°C
RoHS Status	ROHS3 Compliant

Substitute Part Grouping Explanation

Substitution eligibility for the 10DBAW5 is determined by the following criteria:

Voltage Rating: Substitute must support minimum 250VAC operation (the 10DBAW5 supports both 115V and 250V; substitutes operating at 250VAC are compatible)
Current Rating: Must be rated for 10A
Filter Configuration: Single-phase, single-stage topology
Mounting and Termination: Chassis mount with wire leads
Frequency Range: Must support 50/60Hz operation
Compliance: ROHS3 compliance required; CSA/UR/VDE certifications preferred for continuity

Three substitute parts meet these criteria: TE Connectivity Corcom Filters 10EB3, Schaffner EMC Inc. FN2010-10-07, and Curtis Industries F1199BB10.

Parameter Comparison

Parameter	10DBAW5 (Delta)	10EB3 (TE Connectivity)	FN2010-10-07 (Schaffner)	F1199BB10 (Curtis)
Manufacturer	Delta Electronics	TE Connectivity Corcom Filters	Schaffner EMC Inc.	Curtis Industries
Filter Type	Single Phase	Single Phase	Single Phase	Single Phase
Configuration	Single Stage	Single Stage	Single Stage	Single Stage
Voltage - Rated AC	115V, 250V	250V	250V	250V
Current Rating	10 A	10 A	10 A	10 A
Frequency - Operating	50/60Hz	50/60Hz	DC ~ 400Hz	50/60Hz
Mounting Type	Chassis Mount	Chassis Mount	Chassis Mount	Chassis Mount
Termination Style	Wire Leads	Wire Leads	Wire Leads	Wire Leads
Operating Temperature	-25°C ~ 100°C	-10°C ~ 40°C	-25°C ~ 100°C	Not specified
Inductance	1.5mH	495µH	800µH	Not specified
RoHS Status	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant
Approval Agency	CSA, UR, VDE	CSA, UR, VDE	CSA, ENEC, UR	CE, CSA, TUV, UR
Product Status	Active	Active	Active	Active
Inventory	1042 Pcs	1147 Pcs	1160 Pcs	1984 Pcs

Engineering Selection Recommendations

All three substitute parts maintain active product status and ROHS3 compliance, meeting baseline regulatory requirements.

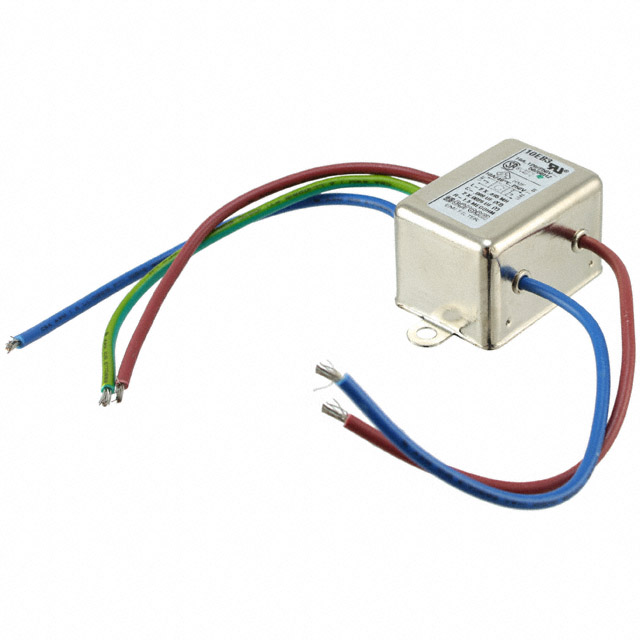

TE Connectivity Corcom Filters 10EB3: Shares identical voltage, current, and frequency specifications with the 10DBAW5. Certifications include CSA, UR, and VDE. Operating temperature range is narrower (-10°C ~ 40°C versus -25°C ~ 100°C), which may limit suitability in applications requiring extended temperature performance. Inductance is lower at 495µH.

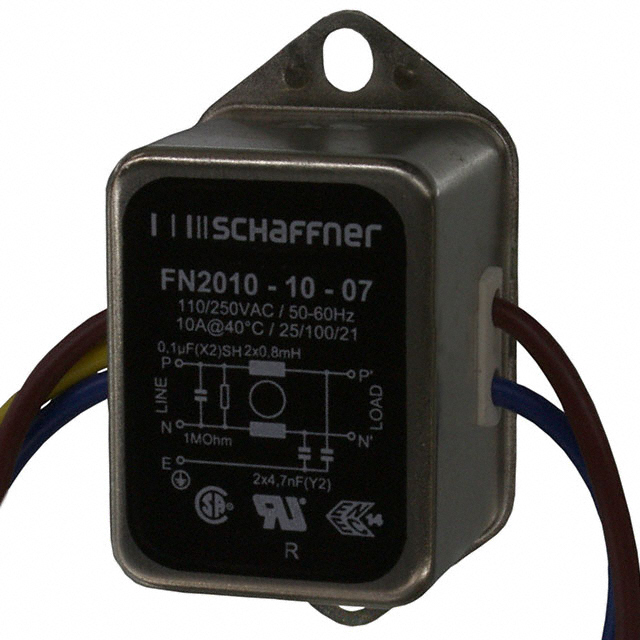

Schaffner EMC Inc. FN2010-10-07: Matches the 10DBAW5 operating temperature range (-25°C ~ 100°C) and supports an extended frequency range (DC ~ 400Hz). Certifications include CSA, ENEC, and UR. Inductance is 800µH. This part provides broader frequency coverage beyond the standard 50/60Hz requirement.

Curtis Industries F1199BB10: Supports 50/60Hz operation with certifications including CE, CSA, TUV, and UR. Operating temperature and inductance specifications are not provided in available data. This part offers the highest inventory availability at 1984 units.

Selection should prioritize alignment with application temperature requirements and frequency specifications. The Schaffner FN2010-10-07 is suitable for applications requiring extended temperature operation or broader frequency support. The TE Connectivity 10EB3 is appropriate for standard 50/60Hz applications within the -10°C ~ 40°C range. The Curtis F1199BB10 is suitable for standard applications with high inventory availability.

Frequently Asked Questions (FAQ)

Q: Can the 10EB3 replace the 10DBAW5 in all applications?

A: The 10EB3 is electrically compatible for 250VAC operation at 10A with 50/60Hz frequency. However, the operating temperature range is restricted to -10°C ~ 40°C compared to the 10DBAW5 range of -25°C ~ 100°C. Applications requiring operation outside this narrower range require alternative selection.

Q: What is the significance of the inductance difference between these parts?

A: Inductance values (1.5mH for 10DBAW5, 495µH for 10EB3, 800µH for FN2010-10-07) affect filtering characteristics and impedance behavior. Selection should confirm that the substitute inductance value is acceptable for the target application's EMI/EMC requirements.

Q: Does the FN2010-10-07 support 115VAC operation?

A: The FN2010-10-07 is rated for 250VAC only. The 10DBAW5 supports both 115V and 250V. If 115VAC operation is required, the FN2010-10-07 is not suitable.

Q: Are all parts certified for the same regulatory standards?

A: All parts hold CSA and UR certifications. The 10DBAW5 and 10EB3 share VDE certification. The FN2010-10-07 includes ENEC certification. The F1199BB10 includes CE and TUV certifications. Application-specific regulatory requirements should determine certification priority.

Q: What packaging formats are available?

A: The 10DBAW5 is supplied in bulk packaging. The 10EB3 is supplied in bulk. The FN2010-10-07 is supplied in box packaging. The F1199BB10 is supplied in box packaging. Packaging format may affect procurement and handling procedures.
