Delta Electronics 10C1 AC Power Connector - Equivalent & Substitute Parts

Part Overview

The Delta Electronics 10C1 is an IEC 320-C14 power entry connector receptacle module designed for panel-mount applications. This component functions as a male-bladed receptacle for AC power inlet connections in commercial equipment. The part is currently active in production with 884 units in stock. Substitute parts are identified to provide alternative sourcing options when the primary part is unavailable or when specific application requirements necessitate alternative connector configurations.

Substiute Parts

10C1

Delta ElectronicsIn Stock: 96310C1 Datasheet

Current PartRFQ

4301.0501

SCHURTER Inc.In Stock: 20984301.0501 Datasheet

SimilarRFQ

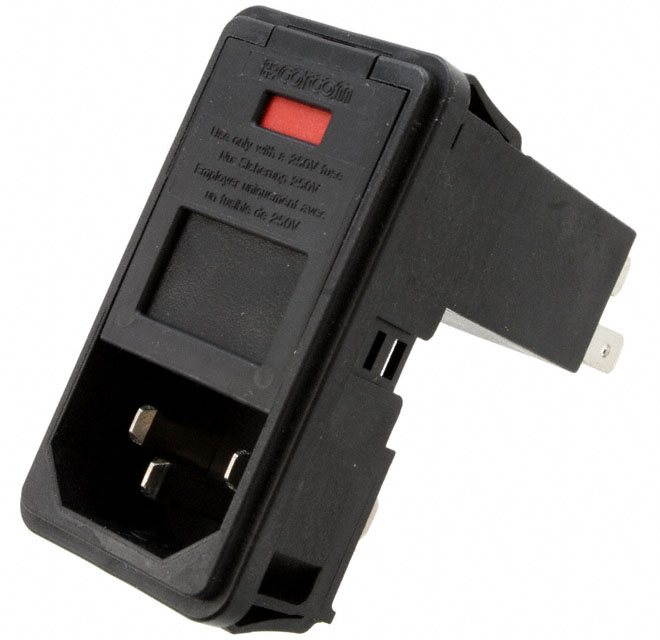

PS000D000

TE Connectivity Corcom FiltersIn Stock: 1283PS000D000 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the Delta Electronics 10C1 are qualified based on the following critical parameters that determine functional interchangeability:

Primary Substitution Criteria:

• Connector style: IEC 320-C14 (mandatory match)
• Connector type: Receptacle, Male Blades - Module (mandatory match)
• Current rating: 10A (mandatory match)
• Number of positions: 3 (mandatory match)
• Fuse accommodation: Yes (mandatory match)
• RoHS compliance: ROHS3 Compliant (mandatory match)

Secondary Compatibility Factors:

• Voltage rating: 250VAC or higher
• Mounting configuration: Panel Mount variants
• Material flammability: UL94 V-0 or equivalent
• Regulatory approvals: CSA, UL certifications

The identified substitutes meet these core electrical and mechanical requirements. Variations in termination type, mounting method (flange vs. snap-in), and panel cutout dimensions represent design trade-offs that may require mechanical integration assessment.

Parameter Comparison

Engineering Selection Recommendations

SCHURTER 4301.0501 is the primary substitute for the Delta Electronics 10C1. Both parts share identical electrical ratings (10A, 250VAC), connector configuration, and flange-mount design. The SCHURTER variant features quick-connect termination instead of solder eyelet and includes IP40 ingress protection. Both parts carry ROHS3 compliance and UL94 V-0 flammability rating. The SCHURTER part holds additional CCC and ENEC certifications. Inventory availability is higher (2021 units vs. 884 units).

TE Connectivity PS000D000 qualifies as a secondary substitute with the following considerations: voltage rating is 120VAC (lower than the primary part's 250VAC), mounting method is snap-in rather than flange, and termination uses quick-connect. The TE part maintains 10A current rating, 3-position configuration, and fuse accommodation. Regulatory approvals include CSA, UL, and VDE. This substitute is suitable for applications operating at 120VAC or lower voltage specifications.

Selection between substitutes depends on application voltage requirements, termination method compatibility with existing PCB or wiring infrastructure, and mounting method feasibility within the equipment enclosure.

Frequently Asked Questions (FAQ)

Q: Can the SCHURTER 4301.0501 directly replace the Delta Electronics 10C1?

A: The SCHURTER 4301.0501 is electrically and mechanically compatible for IEC 320-C14 applications requiring 10A at 250VAC. The primary difference is termination type: the SCHURTER uses quick-connect terminals while the Delta uses solder eyelet. Panel mounting is identical (flange-mount). Integration feasibility depends on whether your PCB or wiring harness accommodates quick-connect terminals.

Q: What is the voltage limitation of the TE Connectivity PS000D000?

A: The TE Connectivity PS000D000 is rated for 120VAC maximum, compared to 250VAC for both the Delta 10C1 and SCHURTER 4301.0501. This part is suitable only for applications operating at 120VAC or lower. Do not use this substitute in 250VAC applications.

Q: Are all three parts RoHS3 compliant?

A: Yes. The Delta Electronics 10C1, SCHURTER 4301.0501, and TE Connectivity PS000D000 are all ROHS3 compliant.

Q: What are the differences in mounting methods?

A: The Delta 10C1 and SCHURTER 4301.0501 use panel-mount flange design. The TE Connectivity PS000D000 uses panel-mount snap-in design. Flange mounting typically requires fasteners through the connector body, while snap-in mounting relies on mechanical retention within the panel cutout. Verify panel cutout dimensions and mounting hardware compatibility before substitution.

Q: Which substitute has the best ingress protection rating?

A: The SCHURTER 4301.0501 specifies IP40 ingress protection. The Delta 10C1 and TE Connectivity PS000D000 do not specify ingress protection ratings. IP40 protection provides resistance to solid objects larger than 1mm and water spray from any direction.

Q: Are the termination types interchangeable?

A: No. The Delta 10C1 uses solder eyelet termination, while both substitutes use quick-connect terminals (0.189" for SCHURTER, 0.187" for TE Connectivity). Termination compatibility must be verified against your PCB layout, wiring harness, or connector receptacle specifications before substitution.
