TE Connectivity AMP Connectors 106527-8 Equivalent & Substitute Parts

Part Overview

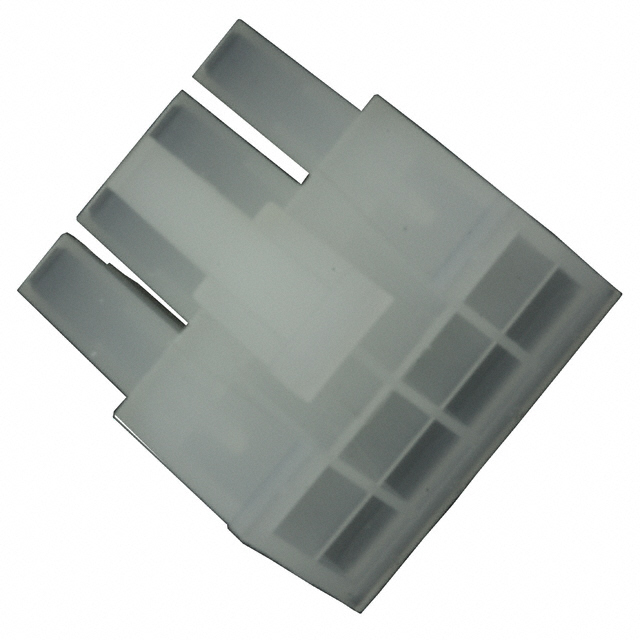

The TE Connectivity AMP Connectors 106527-8 is an 8-position rectangular connector receptacle housing with 0.165" (4.20mm) pitch, designed for free-hanging in-line mounting applications. This component belongs to the AMP-DUAC series and features crimp contact termination with latch lock fastening. The part is classified as obsolete, necessitating identification of active equivalent and substitute components that maintain electrical and mechanical compatibility for ongoing production and maintenance requirements.

Key Parameters

Parameter	Value
Connector Type	Receptacle
Contact Type	Female Socket
Number of Positions	8
Pitch	0.165" (4.20mm)
Number of Rows	2
Row Spacing	0.165" (4.20mm)
Mounting Type	Free Hanging (In-Line)
Contact Termination	Crimp
Fastening Type	Latch Lock
Color	Natural
Moisture Sensitivity Level (MSL)	1 (Unlimited)

Substitute Part Grouping Explanation

Substitution of the TE Connectivity 106527-8 is determined by strict equivalence across the following critical parameters: connector type (receptacle), contact type (female socket), number of positions (8), pitch (0.165"/4.20mm), number of rows (2), row spacing (0.165"/4.20mm), mounting type (free hanging in-line), contact termination (crimp), and fastening type (latch lock). All identified substitute parts maintain these core electrical and mechanical specifications.

Substitute parts are grouped into two categories based on product status and availability:

Category 1: Direct TE Connectivity Substitute – Part 794954-8 from the VAL-U-LOK series maintains identical specifications to the main part while offering active product status and higher inventory availability.

Category 2: Parametric Equivalents from Molex – Parts 0039012080, 0039013085, 0039039082, and 0455870004 from the Mini-Fit Jr series provide electrical and mechanical equivalence with variations in color, insulation material composition, and series designation. These parts are active and widely available.

Parameter Comparison

Parameter	106527-8 (Main)	794954-8	0039012080	0039013085	0039039082	0455870004
Manufacturer	TE Connectivity	TE Connectivity	Molex	Molex	Molex	Molex
Series	AMP-DUAC	VAL-U-LOK	Mini-Fit Jr 5557	Mini-Fit Jr 5557	Mini-Fit Jr 5557	Mini-Fit Jr 45587
Connector Type	Receptacle	Receptacle	Receptacle	Receptacle	Receptacle	Receptacle
Contact Type	Female Socket	Female Socket	Female Socket	Female Socket	Female Socket	Female Socket
Number of Positions	8	8	8	8	8	8
Pitch	0.165" (4.20mm)	0.165" (4.20mm)	0.165" (4.20mm)	0.165" (4.20mm)	0.165" (4.20mm)	0.165" (4.20mm)
Number of Rows	2	2	2	2	2	2
Row Spacing	0.165" (4.20mm)	0.165" (4.20mm)	0.165" (4.20mm)	0.165" (4.20mm)	0.165" (4.20mm)	0.165" (4.20mm)
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)	Free Hanging (In-Line)	Free Hanging (In-Line)	Free Hanging (In-Line)	Free Hanging (In-Line)
Contact Termination	Crimp	Crimp	Crimp	Crimp	Crimp	Crimp
Fastening Type	Latch Lock	Latch Lock	Latch Lock	Latch Lock	Latch Lock	Latch Lock
Color	Natural	Natural	Natural	Black	Black	Black
Insulation Material	Not Specified	Polyamide (PA), Nylon	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6, Glass Filled	Polyamide (PA66), Nylon 6/6	Polyamide (PA), Nylon
Operating Temperature	Not Specified	-40°C ~ 105°C	-40°C ~ 105°C	Not Specified	Not Specified	-40°C ~ 105°C
Product Status	Obsolete	Active	Active	Active	Active	Active
RoHS Status	Not Specified	RoHS Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant
Moisture Sensitivity Level (MSL)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	Not Applicable
REACH Status	Vendor Undefined	Vendor Undefined	REACH Unaffected	REACH Unaffected	REACH Unaffected	REACH Unaffected
ECCN	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Inventory Availability	971 Pcs	2100 Pcs	213760 Pcs	13972 Pcs	25886 Pcs	51126 Pcs

Engineering Selection Recommendations

Primary Substitute: TE Connectivity 794954-8

The TE Connectivity 794954-8 from the VAL-U-LOK series is the preferred substitute for the obsolete 106527-8. This part maintains identical electrical and mechanical specifications, including natural color, 8-position configuration, 0.165" pitch, and crimp latch lock fastening. The 794954-8 carries active product status with RoHS compliance certification and documented operating temperature range of -40°C to 105°C. Inventory availability of 2100 units supports production continuity.

Secondary Substitutes: Molex Mini-Fit Jr Series

The Molex parametric equivalents (0039012080, 0039013085, 0039039082, 0455870004) provide full electrical and mechanical compatibility with the main part. All four Molex alternatives maintain the critical specifications: 8 positions, 0.165" pitch, 2-row configuration, free-hanging in-line mounting, crimp termination, and latch lock fastening. These parts carry active product status with ROHS3 compliance and REACH unaffected designation.

Selection among Molex alternatives depends on color requirements and material specifications:

0039012080: Natural color, PA66 nylon 6/6 insulation, -40°C to 105°C operating range, highest inventory availability (213760 units)
0039013085: Black color, PA66 nylon 6/6 glass-filled insulation, 13972 units available
0039039082: Black color, PA66 nylon 6/6 insulation, 25886 units available
0455870004: Black color, PA nylon insulation, -40°C to 105°C operating range, 51126 units available

All substitute parts are classified under ECCN EAR99 and carry equivalent export control status to the main part.

Frequently Asked Questions (FAQ)

Q: What determines compatibility between the 106527-8 and its substitutes?

A: Compatibility is established through equivalence in connector type (receptacle), contact type (female socket), number of positions (8), pitch (0.165"/4.20mm), row configuration (2 rows with 0.165" spacing), mounting type (free hanging in-line), contact termination (crimp), and fastening mechanism (latch lock). All listed substitutes maintain these specifications.

Q: Why are there color variations among the substitute parts?

A: The main part 106527-8 is specified in natural color. The TE Connectivity 794954-8 substitute maintains this natural color specification. Molex alternatives include both natural (0039012080) and black color options (0039013085, 0039039082, 0455870004). Color selection depends on application requirements and visual identification needs. Electrical and mechanical performance is independent of color.

Q: What is the difference between the Molex Mini-Fit Jr 5557 and Mini-Fit Jr 45587 series?

A: Both series maintain identical electrical and mechanical specifications for the 8-position receptacle housing at 0.165" pitch. The primary differences are in series designation and insulation material composition. The 5557 series uses PA66 nylon 6/6 (standard or glass-filled), while the 45587 series uses PA nylon. Operating temperature and moisture sensitivity specifications vary between series as documented in the parameter comparison table.

Q: Are all substitute parts RoHS compliant?

A: The TE Connectivity 794954-8 carries RoHS compliance certification. All four Molex alternatives (0039012080, 0039013085, 0039039082, 0455870004) are ROHS3 compliant. The main part 106527-8 does not specify RoHS status. Compliance certifications are documented in the parameter comparison table.

Q: What is the significance of MSL (Moisture Sensitivity Level) ratings?

A: The main part 106527-8 and all TE Connectivity and Molex substitutes (except 0455870004) carry MSL 1 (Unlimited) rating, indicating no moisture sensitivity restrictions for storage and handling. Part 0455870004 carries MSL Not Applicable designation. This parameter does not affect substitution compatibility.

Q: Which substitute offers the highest inventory availability?

A: The Molex 0039012080 (Mini-Fit Jr 5557 series, natural color) provides the highest inventory availability at 213760 units. This part also maintains natural color matching the original 106527-8 specification and operates across the -40°C to 105°C temperature range.

Q: Can I use black-colored substitutes in applications originally designed for natural-colored connectors?

A: Electrical and mechanical compatibility is unaffected by color variation. However, application-specific requirements such as visual identification, connector traceability, or aesthetic specifications must be evaluated independently. The black-colored Molex alternatives (0039013085, 0039039082, 0455870004) are electrically and mechanically equivalent to the natural-colored main part.

Q: What is the REACH status of these substitute parts?

A: The main part 106527-8 carries vendor-undefined REACH status. The TE Connectivity 794954-8 also carries vendor-undefined status. All four Molex alternatives (0039012080, 0039013085, 0039039082, 0455870004) are designated as REACH unaffected, indicating compliance with REACH regulations.

Q: Are contacts included with these connector housings?

A: All parts listed—the main part 106527-8 and all substitutes—are connector housings only. Contacts are not included and must be sourced separately. This specification applies uniformly across all equivalent and substitute parts.
