TE Connectivity AMP Connectors 106507-2 Equivalent & Substitute Parts

Part Overview

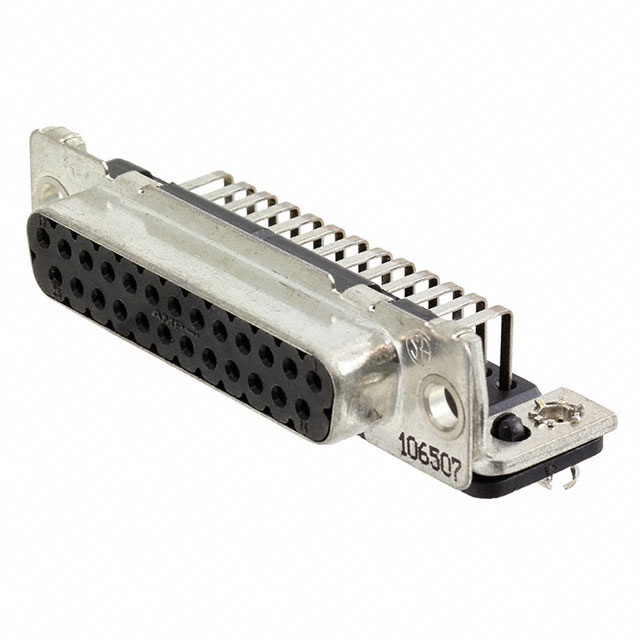

The TE Connectivity AMP Connectors 106507-2 is a 25 Position D-Sub Receptacle connector with female sockets, designed for panel mount through-hole and right-angle solder termination applications. This connector belongs to the AMPLIMITE HD-20 series and is classified as an active product with full inventory availability. The connector features a 3 (DB, B) shell size layout, tin-plated steel housing with gold-plated contacts, and operates across a temperature range of -55°C to 105°C at 125V and 6A current rating.

Equivalent and substitute parts are necessary when the original part becomes unavailable, when alternative packaging formats are required, or when design specifications allow for compatible alternatives from different manufacturers that meet the same electrical and mechanical requirements.

Substiute Parts

106507-2

TE Connectivity AMP ConnectorsIn Stock: 890106507-2 Datasheet

Current PartRFQ

09663126603

HARTINGIn Stock: 124109663126603 Datasheet

SimilarRFQ

09663526613

HARTINGIn Stock: 112209663526613 Datasheet

SimilarRFQ

D25S13A4GL00LF

Amphenol ICC (FCI)In Stock: 841D25S13A4GL00LF Datasheet

SimilarRFQ

D25S13A4GV00LF

Amphenol ICC (FCI)In Stock: 1597D25S13A4GV00LF Datasheet

SimilarRFQ

D25S13A4GX00LF

Amphenol ICC (FCI)In Stock: 10283D25S13A4GX00LF Datasheet

SimilarRFQ

D25S13A4PA00LF

Amphenol ICC (FCI)In Stock: 1293D25S13A4PA00LF Datasheet

SimilarRFQ

L77SDB25S1ACH3R

Amphenol ICC (Commercial Products)In Stock: 876L77SDB25S1ACH3R Datasheet

SimilarRFQ

L77SDB25SA4CH4F

Amphenol ICC (Commercial Products)In Stock: 1648L77SDB25SA4CH4F Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of D-Sub 25-position receptacle connectors is determined by strict alignment of the following parameters:

Critical Parameters for Substitution:

• Connector type (Receptacle, Female Sockets)
• Number of positions (25)
• Number of rows (2)
• Shell size and layout (3 / DB, B)
• Mounting type (Through Hole, Right Angle)
• Termination method (Solder)
• Material flammability rating (UL94 V-0)
• Regulatory compliance (RoHS3, REACH status)

Parameters Allowing Variation:

• Manufacturer and series designation
• Shell material finish (Steel with various plating options)
• Contact finish thickness (30.0µin, Flash)
• Flange feature design (Housing/Shell unthreaded, Housing/Shell threaded, Mating side screwlock)
• Current rating (5A to 6.5A per contact)
• Voltage rating (125V to 300V)
• Operating temperature upper limit (105°C to 125°C)
• Dielectric material composition (Polyester, PBT, Thermoplastic variants)
• Contact material (Phosphor Bronze, Copper Alloy)
• Packaging format (Bulk, Tray)

The substitute parts listed maintain compatibility with the 106507-2 through adherence to the critical parameters while offering alternatives in design features, electrical ratings, and packaging options.

Parameter Comparison

Engineering Selection Recommendations

Primary Substitutes (Highest Compatibility):

The parts D25S13A4GX00LF, D25S13A4GV00LF, and D25S13A4PA00LF from Amphenol ICC (FCI) Delta D series represent the closest functional equivalents to the 106507-2. These parts maintain all critical parameters including 25-position configuration, 2-row layout, DB/B shell size, through-hole right-angle solder termination, and UL94 V-0 flammability rating. All three are ROHS3 compliant and REACH unaffected. The primary differences are elevated voltage ratings (300V versus 125V) and extended operating temperature ranges (-55°C to 125°C versus -55°C to 105°C), which represent enhanced performance specifications suitable for applications requiring higher electrical margins.

Secondary Substitutes (Acceptable with Design Review):

The HARTING parts 09663126603 and 09663526613 provide functional substitution with equivalent current ratings (6.5A) and extended temperature ranges. These connectors maintain the critical 25-position, 2-row, DB/B configuration with through-hole right-angle solder termination and UL94 V-0 compliance. Both are ROHS3 compliant and REACH unaffected. The 09663526613 includes Board Lock features matching the original part. Voltage ratings are not specified for these HARTING parts, requiring design verification for applications with specific voltage requirements.

Alternative Substitutes (Limited Current Applications):

The Amphenol ICC Commercial Products L77SDB25S1ACH3R and L77SDB25SA4CH4F from the SD series maintain the 25-position, 2-row, DB/B configuration with through-hole right-angle solder termination. These parts feature reduced current ratings (3A versus 6A) and lower voltage ratings (250V versus 125V), making them suitable only for applications with lower power requirements. Both are RoHS compliant with extended operating temperature ranges to 125°C.

Compliance Considerations:

All substitute parts maintain UL94 V-0 flammability ratings and MSL 1 (Unlimited) moisture sensitivity levels, ensuring compatibility with standard manufacturing and storage conditions. The majority of substitutes are ROHS3 compliant. The D25S13A4GL00LF variant carries REACH Affected status, requiring additional regulatory review for applications subject to REACH restrictions. All other substitutes maintain REACH Unaffected status matching the original part.

Frequently Asked Questions (FAQ)

Q: Can I substitute the 106507-2 with any of the listed alternatives without design changes?

A: The Amphenol ICC Delta D series parts (D25S13A4GX00LF, D25S13A4GV00LF, D25S13A4PA00LF) and HARTING parts (09663126603, 09663526613) are direct functional substitutes maintaining all critical mechanical and electrical parameters. The L77SDB25 series parts require design review due to reduced current ratings (3A versus 6A). Flange feature differences may require mechanical accommodation depending on mounting requirements.

Q: What are the key differences between the 106507-2 and D25S13A4GX00LF?

A: Both connectors share identical 25-position, 2-row, DB/B configuration with through-hole right-angle solder termination. The D25S13A4GX00LF features a higher voltage rating (300V versus 125V), extended operating temperature range (-55°C to 125°C versus -55°C to 105°C), and gold-plated contacts with flash thickness versus 30.0µin thickness on the original. The D25S13A4GX00LF includes Housing/Shell (4-40) flange feature with mounting brackets, whereas the 106507-2 features unthreaded housing.

Q: Are the HARTING parts 09663126603 and 09663526613 interchangeable?

A: Both HARTING parts maintain identical electrical and mechanical specifications including 25-position configuration, 6.5A current rating, and extended temperature range to 125°C. The primary difference is packaging format: 09663126603 is supplied in Bulk packaging, while 09663526613 is supplied in Tray packaging. The 09663526613 includes Board Lock features matching the original 106507-2. Selection depends on packaging requirements and inventory management preferences.

Q: What is the significance of the voltage rating differences between the 106507-2 (125V) and substitute parts (250V-300V)?

A: The substitute parts with higher voltage ratings (D25S13A4 series at 300V, L77SDB25 series at 250V) provide enhanced electrical safety margins for applications operating at or near the original 125V specification. Higher voltage ratings indicate improved dielectric strength and insulation properties. These parts are suitable for direct substitution in applications operating at 125V or lower. Applications requiring the specific 125V rating should verify that higher-rated substitutes meet all design specifications.

Q: Can I use the L77SDB25SA4CH4F as a substitute for high-current applications?

A: No. The L77SDB25SA4CH4F is rated for 3A current per contact, compared to the 106507-2 rating of 6A. This part is suitable only for applications with current requirements of 3A or lower. For applications requiring the full 6A rating of the original part, use the HARTING parts (6.5A rating) or Amphenol ICC Delta D series parts (5A per contact rating).

Q: What packaging options are available for substitutes?

A: The substitute parts are available in two packaging formats: Bulk and Tray. HARTING 09663126603 is supplied in Bulk packaging (859 pcs inventory). HARTING 09663526613, all Amphenol ICC Delta D series parts (D25S13A4GL00LF, D25S13A4GV00LF, D25S13A4GX00LF, D25S13A4PA00LF), and Amphenol ICC Commercial Products SD series parts (L77SDB25S1ACH3R, L77SDB25SA4CH4F) are supplied in Tray packaging. Selection depends on manufacturing process requirements and component handling procedures.

Q: Are all substitute parts RoHS3 compliant?

A: Most substitute parts are ROHS3 compliant, including the original 106507-2. The exception is D25S13A4GL00LF, which carries RoHS Compliant status without specific ROHS3 designation. The HARTING parts (09663126603, 09663526613) and Amphenol ICC Delta D series parts (D25S13A4GV00LF, D25S13A4GX00LF, D25S13A4PA00LF) are explicitly ROHS3 compliant. The Amphenol ICC Commercial Products SD series parts (L77SDB25S1ACH3R, L77SDB25SA4CH4F) are RoHS compliant. For applications requiring ROHS3 certification, verify specific part compliance documentation.

Q: What is the difference between flange features across the substitute parts?
