TE Connectivity AMP 1053392-1 SMA Connector Receptacle Equivalent & Substitute Parts

Part Overview

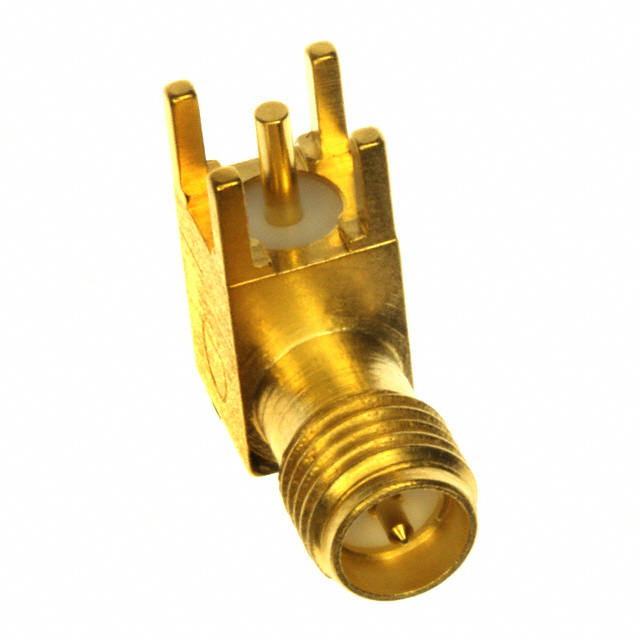

The TE Connectivity AMP 1053392-1 is an SMA connector receptacle designed for coaxial RF applications requiring 50-ohm impedance. This component is a female socket connector with right-angle through-hole solder termination, suitable for PCB-mounted RF circuit assemblies. The part is classified as obsolete, necessitating identification of functionally equivalent alternatives for ongoing procurement and design continuity.

Substiute Parts

1053392-1

TE Connectivity AMP ConnectorsIn Stock: 10411053392-1 Datasheet

Current PartRFQ

0731000115

MolexIn Stock: 53300731000115 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the TE Connectivity AMP 1053392-1 is determined by strict equivalence across the following critical parameters:

Mandatory Matching Parameters:

• Connector Style: SMA
• Connector Type: Receptacle, Female Socket
• Impedance: 50 Ohms
• Mounting Type: Through Hole, Right Angle
• Contact Termination: Solder
• Shield Termination: Solder
• Fastening Type: Threaded
• Number of Ports: 1
• Dielectric Material: Polytetrafluoroethylene (PTFE)
• Center Contact Material: Beryllium Copper

The Molex 0731000115 satisfies all mandatory matching parameters, establishing functional equivalence for RF coaxial connector applications. Both components are designed for identical mechanical and electrical interface requirements in 50-ohm PCB-mounted RF circuits.

Parameter Comparison

Engineering Selection Recommendations

Primary Substitute: Molex 0731000115

The Molex 0731000115 is the direct functional equivalent for the obsolete TE Connectivity AMP 1053392-1. Selection of this substitute is supported by the following factors:

Product Status: The Molex 0731000115 maintains active product status, ensuring ongoing availability and manufacturer support. The TE Connectivity AMP 1053392-1 is obsolete, making the Molex alternative the appropriate choice for new designs and ongoing procurement.

Compliance Certifications: Both components are RoHS compliant. The Molex 0731000115 carries ROHS3 compliance, representing current regulatory alignment. Both components are classified under identical ECCN (EAR99) and HTSUS (8536.69.4010) codes, confirming equivalent export and tariff treatment.

Performance Envelope: The Molex 0731000115 exceeds the electrical and thermal specifications of the original component. Maximum frequency rating of 18 GHz exceeds the 12.4 GHz specification of the TE Connectivity part. Operating temperature range extends to 165°C compared to 125°C, and voltage rating increases to 500 V from 335 V. These enhanced specifications ensure compatibility with existing circuit requirements while providing additional performance margin.

Mechanical and Electrical Interface: Both components share identical SMA connector geometry, 50-ohm impedance, through-hole right-angle mounting, and solder termination methods. PCB footprint compatibility is maintained.

Frequently Asked Questions (FAQ)

Q: Can the Molex 0731000115 be used as a direct replacement for the TE Connectivity AMP 1053392-1 in existing PCB designs?

A: Yes. Both connectors share identical SMA connector style, receptacle female socket configuration, 50-ohm impedance, through-hole right-angle mounting, and solder termination. PCB footprint and electrical interface are compatible.

Q: What are the key differences between these two connectors?

A: The primary differences are manufacturer identity and enhanced performance specifications in the Molex part. The Molex 0731000115 provides higher maximum frequency (18 GHz vs. 12.4 GHz), extended operating temperature range (-65°C to 165°C vs. -65°C to 125°C), and increased voltage rating (500 V vs. 335 V). The Molex component uses nickel-plated brass body construction compared to gold-plated stainless steel in the TE Connectivity part.

Q: Are there packaging differences between these connectors?

A: The Molex 0731000115 is supplied in tray packaging. Packaging specifications for the TE Connectivity AMP 1053392-1 are not provided in the available data. Confirm packaging requirements with procurement specifications.

Q: Do both connectors meet current regulatory requirements?

A: Yes. Both components are RoHS compliant. The Molex 0731000115 carries ROHS3 compliance, representing current regulatory standards. Both are classified under identical export control (EAR99) and tariff (8536.69.4010) codes.

Q: What is the moisture sensitivity level for these connectors?

A: Both components carry Moisture Sensitivity Level 1 (Unlimited), indicating no moisture sensitivity restrictions during storage or handling.

Q: Are the mating cycle ratings identical?

A: Yes. Both connectors are rated for 500 mating cycles, providing equivalent mechanical durability for connector engagement and disengagement operations.
