TE Connectivity 104893-5 Rectangular Connector Equivalent & Substitute Parts

Part Overview

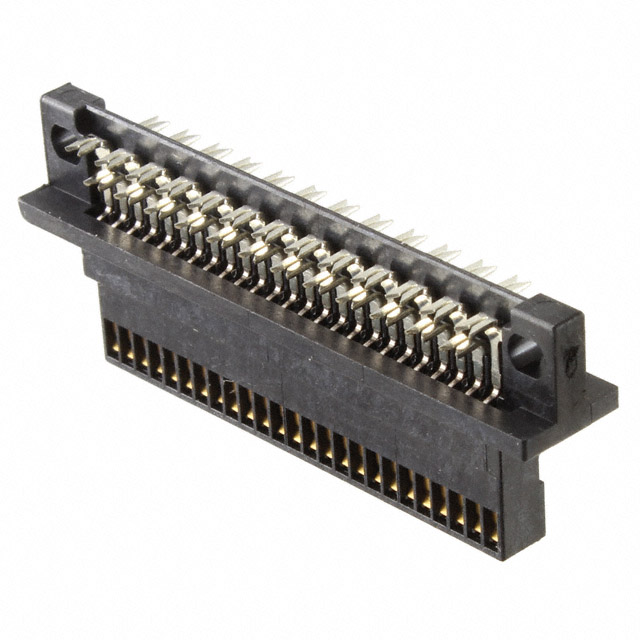

The TE Connectivity 104893-5 is a 50-position rectangular receptacle connector designed for IDC (Insulation Displacement Contact) termination with ribbon cable. This connector operates as a female socket in the AMPMODU 50/50 Grid series and is classified as an active product. The connector features gold-plated contacts and is configured for free-hanging, in-line mounting applications.

Substitute parts are identified to address inventory availability, compliance requirements, or supply chain continuity. The primary substitute maintains identical electrical and mechanical specifications while offering improved regulatory compliance status.

Substiute Parts

104893-5

TE Connectivity AMP ConnectorsIn Stock: 952104893-5 Datasheet

Current PartRFQ

5-104893-5

TE Connectivity AMP ConnectorsIn Stock: 13505-104893-5 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the TE Connectivity 104893-5 is determined by strict equivalence across all electrical and mechanical parameters. The substitute part must maintain identical specifications in the following critical areas:

Electrical Parameters:

• Contact type (Female Socket)
• Number of positions (50)
• Wire gauge (28 AWG)
• Contact finish material (Gold) and thickness (30.0µin)

Mechanical Parameters:

• Pitch (0.050" / 1.27mm)
• Row configuration (2 rows)
• Row spacing (0.050" / 1.27mm)
• Mounting type (Free Hanging, In-Line)
• Housing features (Closed End)

Functional Parameters:

• Connector type (Receptacle)
• Cable termination method (IDC)
• Wire type (Ribbon Cable)
• Series designation (AMPMODU 50/50 Grid)

The substitute part 5-104893-5 meets all these criteria and is therefore classified as a direct equivalent.

Parameter Comparison

Engineering Selection Recommendations

Primary Part Selection: 104893-5

The 104893-5 is suitable for applications where RoHS non-compliant components are acceptable. This part is active and maintains full inventory availability (908 pcs in stock).

Substitute Part Selection: 5-104893-5

The 5-104893-5 is the direct equivalent substitute and is recommended for applications requiring ROHS3 compliance. This part maintains all electrical and mechanical specifications identical to the main part while offering improved regulatory compliance status. The substitute part has higher inventory availability (1,289 pcs in stock).

Both parts share identical electrical performance, mechanical compatibility, and functional characteristics. Selection between the two parts is determined solely by regulatory compliance requirements and inventory availability. The ROHS3 compliance status of the 5-104893-5 makes it the preferred choice for applications subject to RoHS directives.

Frequently Asked Questions (FAQ)

Q: Are the 104893-5 and 5-104893-5 electrically interchangeable?

A: Yes. Both parts are 50-position rectangular receptacle connectors with identical contact types, pitch, row spacing, wire gauge, and contact finish specifications. They function identically in IDC ribbon cable termination applications.

Q: What is the difference between these two part numbers?

A: The primary difference is RoHS compliance status. The 5-104893-5 is ROHS3 compliant, while the 104893-5 is RoHS non-compliant. All other electrical, mechanical, and functional parameters are identical.

Q: Can I use the 5-104893-5 as a direct replacement for the 104893-5?

A: Yes. The 5-104893-5 is a direct equivalent substitute with identical specifications across all critical parameters. It can be used in any application where the 104893-5 is specified.

Q: Are there any mechanical compatibility issues when substituting between these parts?

A: No. Both connectors share identical pitch (0.050"), row spacing (0.050"), mounting type (Free Hanging, In-Line), and housing configuration (Closed End). They are mechanically interchangeable.

Q: What packaging format is used for both parts?

A: Both the 104893-5 and 5-104893-5 are supplied in tube packaging.

Q: Which part should I select for new designs?

A: For new designs, the 5-104893-5 is recommended due to its ROHS3 compliance status, which aligns with current regulatory requirements and industry standards.

Q: Are both parts still in active production?

A: Yes. Both parts maintain active product status with TE Connectivity AMP Connectors.

Q: What is the wire gauge compatibility for these connectors?

A: Both connectors are designed for 28 AWG ribbon cable termination using IDC (Insulation Displacement Contact) technology.
