TE Connectivity AMP Connectors 104809-2 Equivalent & Substitute Parts

Part Overview

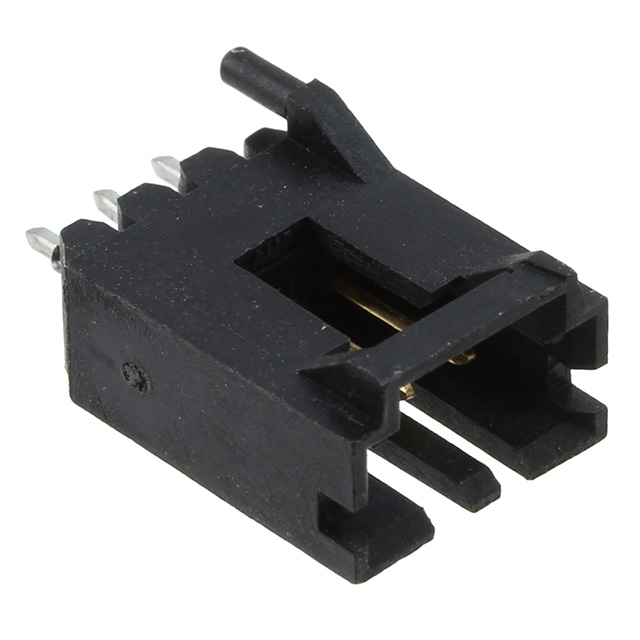

The TE Connectivity AMP Connectors 104809-2 is a rectangular connector header designed for through-hole mounting applications. This shrouded 3-position connector operates at 0.100" (2.54mm) pitch and supports board-to-board or cable interconnection in automotive, general purpose, medical, and telecommunications applications. The connector features male pin contacts with gold-plated mating surfaces and tin-lead post finishes, rated for 3A current at operating temperatures between -65°C and 105°C. The product maintains Active status within the AMPMODU MTE series. Identifying equivalent and substitute parts is necessary to ensure design flexibility, manage supply chain continuity, and accommodate varying compliance requirements across different manufacturing batches and regional specifications.

Substiute Parts

104809-2

TE Connectivity AMP ConnectorsIn Stock: 1193104809-2 Datasheet

Current PartRFQ

5-104809-2

TE Connectivity AMP ConnectorsIn Stock: 6965-104809-2 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the 104809-2 is determined by strict equivalence across the following critical parameters: connector type (Header), contact type (Male Pin), mating pitch (0.100"/2.54mm), position count (3), row configuration (1), mounting method (Through Hole), shrouding design (Shrouded - 4 Wall), current capacity (3A), and operating temperature range (-65°C ~ 105°C). The substitute part 5-104809-2 maintains identical specifications across all these parameters, ensuring direct functional and mechanical compatibility. Variations in contact finish composition on the post (tin-lead versus tin) and regulatory compliance status (RoHS and REACH classifications) do not affect electrical or mechanical substitutability but may influence application suitability based on end-use requirements and regional regulations.

Parameter Comparison

Engineering Selection Recommendations

Both the 104809-2 and 5-104809-2 are functionally equivalent rectangular connectors within the AMPMODU MTE series and maintain Active product status. The primary distinction between these parts lies in regulatory compliance classification. The 104809-2 is designated as Not applicable for RoHS status and REACH Affected, while the 5-104809-2 carries ROHS3 Compliant and REACH Unaffected designations. Selection between these parts should be based on application-specific regulatory requirements. Applications subject to RoHS3 compliance mandates or REACH restrictions should utilize the 5-104809-2. Applications without such regulatory constraints may use either part. The contact finish difference on the post (tin-lead versus tin) reflects the compliance distinction and does not alter electrical performance or mechanical compatibility. Both parts support identical termination methods (Press-Fit, Solder), mounting configurations, and operational parameters across the full temperature range.

Frequently Asked Questions (FAQ)

Q: Are the 104809-2 and 5-104809-2 mechanically interchangeable?

A: Yes. Both parts share identical mechanical specifications including pitch (0.100"/2.54mm), position count (3), mounting type (Through Hole), shrouding configuration (Shrouded - 4 Wall), and all contact dimensions. They are direct mechanical substitutes.

Q: What is the difference between the contact finishes on the post?

A: The 104809-2 features tin-lead post finish, while the 5-104809-2 features tin post finish. Both maintain 100.0µin (2.54µm) thickness. This difference reflects the regulatory compliance status of each part and does not affect electrical performance or solderability.

Q: Which part should I select for RoHS3-compliant applications?

A: The 5-104809-2 is designated ROHS3 Compliant and should be selected for applications requiring RoHS3 compliance. The 104809-2 is marked as Not applicable for RoHS status.

Q: What is the significance of REACH status in the part selection?

A: The 5-104809-2 is REACH Unaffected, indicating it does not contain substances of very high concern (SVHC) listed under REACH regulations. The 104809-2 is REACH Affected. Applications subject to REACH restrictions should utilize the 5-104809-2.

Q: Can I use these connectors in automotive applications?

A: Yes. Both parts are rated for automotive applications and maintain the required UL94 V-0 flammability rating, operating temperature range (-65°C ~ 105°C), and 3A current capacity for automotive interconnection requirements.

Q: Are there any packaging differences between these parts?

A: Both parts are supplied in Tube packaging. Inventory levels differ: 104809-2 has 1156 pieces in stock, while 5-104809-2 has 629 pieces in stock.

Q: What is the current rating for these connectors?

A: Both the 104809-2 and 5-104809-2 are rated for 3A continuous current, suitable for general purpose, medical, and telecommunications applications requiring moderate current distribution.

Q: Are these parts suitable for medical device applications?

A: Yes. Both parts are listed for medical applications and comply with UL94 V-0 flammability requirements. The MSL rating of 1 (Unlimited) indicates no moisture sensitivity constraints for medical assembly processes.
