TE Connectivity 104809-1 Rectangular Connector Header Equivalent & Substitute Parts

Part Overview

The TE Connectivity 104809-1 is a vertical rectangular connector header designed for through-hole mounting applications. This connector features a 2-position, single-row configuration with 0.100" (2.54mm) pitch spacing, suitable for board-to-board or cable interconnection. The component is classified as an active product and is utilized across automotive, general purpose, medical, and telecommunications applications. Substitute parts are identified to address inventory availability, compliance requirements, or specific application constraints while maintaining electrical and mechanical compatibility.

Substiute Parts

104809-1

TE Connectivity AMP ConnectorsIn Stock: 862104809-1 Datasheet

Current PartRFQ

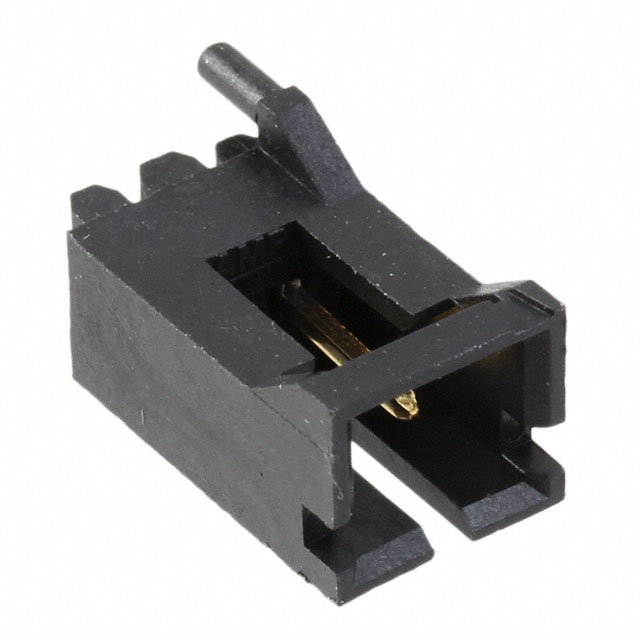

5-104809-1

TE Connectivity AMP ConnectorsIn Stock: 37585-104809-1 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution between the main part 104809-1 and the equivalent part 5-104809-1 is based on strict electrical and mechanical parameter alignment. Both components share identical specifications across all critical dimensions, contact configurations, and performance ratings. The substitution logic is determined by the following parameters:

Electrical Compatibility Parameters:

• Contact type, pitch spacing, and current rating remain constant
• Operating temperature range is identical
• Material flammability rating is equivalent

Mechanical Compatibility Parameters:

• Number of positions, rows, and contact lengths are identical
• Insulation height and overall contact length match precisely
• Mounting type and shrouding configuration are the same
• Termination method (Press-Fit, Solder) is consistent

Functional Compatibility Parameters:

• Both components are classified as active products
• Series designation (AMPMODU MTE) is maintained
• Applications remain consistent across automotive, general purpose, medical, and telecommunications sectors

The primary distinction between these parts relates to compliance status and contact finish specifications on the post termination, which do not affect functional interchangeability in standard applications.

Parameter Comparison

Engineering Selection Recommendations

Both the 104809-1 and 5-104809-1 are active products manufactured by TE Connectivity within the AMPMODU MTE series. These components are electrically and mechanically interchangeable for standard applications requiring a 2-position, 0.100" pitch rectangular connector header with through-hole mounting.

Compliance Considerations:

The 5-104809-1 substitute part carries RoHS Compliant status, whereas the main part 104809-1 is RoHS non-compliant. Applications subject to RoHS directives or requiring RoHS-compliant component documentation should utilize the 5-104809-1 variant.

The main part 104809-1 is designated as REACH Affected, while the 5-104809-1 carries Vendor Undefined REACH status. Applications requiring specific REACH compliance documentation should reference the applicable regulatory requirements for the intended market.

Contact Finish Specification:

The contact finish on the post termination differs between parts: 104809-1 specifies Tin-Lead, while 5-104809-1 specifies Tin. Both maintain identical contact finish thickness (100.0µin / 2.54µm) and mating contact finish (Gold, 15.0µin / 0.38µm). This distinction does not affect functional performance in standard soldering or press-fit applications.

Inventory and Availability:

The 5-104809-1 maintains higher inventory availability (3664 Pcs) compared to the main part 104809-1 (770 Pcs), both supplied as new original stock in tube packaging.
