TE Connectivity 104693-2 Equivalent & Substitute Parts

Part Overview

The TE Connectivity 104693-2 is a surface mount rectangular connector header with 20 positions, 1.27mm pitch, and shrouded 4-wall design. This connector is classified as an AMPMODU 50/50 Grid series component with board-to-board connectivity and push-pull fastening. The part maintains active product status with 806 units in current inventory.

Equivalent and substitute parts are identified to address application requirements including RoHS compliance upgrades, alternative packaging formats, enhanced thermal performance, and increased current capacity specifications. Substitute components maintain core electrical and mechanical compatibility while offering variations in manufacturing source, regulatory compliance, and performance characteristics.

Key Parameters

Parameter	Specification
Connector Type	Header
Contact Type	Male Pin
Number of Positions	20
Number of Rows	2
Pitch - Mating	0.050" (1.27mm)
Row Spacing - Mating	0.050" (1.27mm)
Mounting Type	Surface Mount
Shrouding	Shrouded - 4 Wall
Fastening Type	Push-Pull
Termination	Solder
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Material	Phosphor Bronze
Operating Temperature Range	-65°C ~ 105°C
Current Rating	0.5A per Contact
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Contact Shape	Circular
Contact Finish - Mating	Gold
Moisture Sensitivity Level	1 (Unlimited)

Substitute Part Grouping Explanation

Substitute parts are classified into two primary categories based on electrical and mechanical compatibility with the 104693-2:

Category 1: Direct Equivalent (TE Connectivity) The part 5-104693-2 maintains identical electrical specifications, mechanical dimensions, and connector geometry. This substitute differs only in RoHS compliance status (ROHS3 Compliant versus RoHS non-compliant) and contact finish post material (Tin versus Tin-Lead). This part is selected when regulatory compliance with RoHS3 requirements is mandated while maintaining the original TE Connectivity manufacturing source.

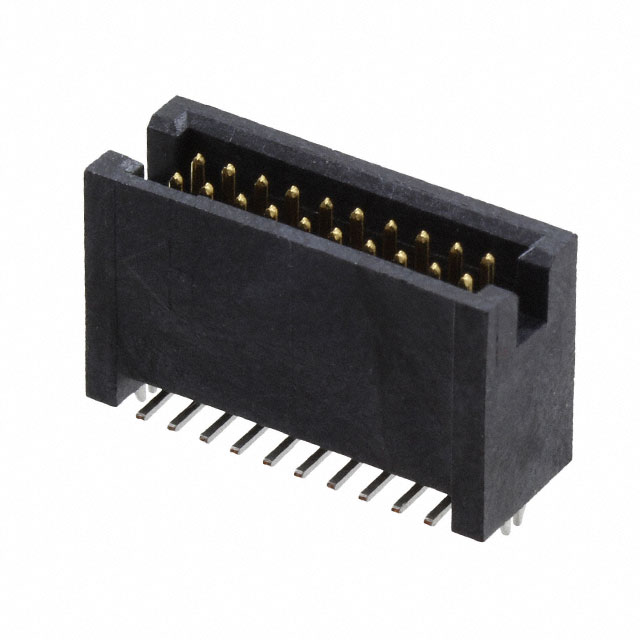

Category 2: Functional Equivalents (Samtec Tiger Eye™ TFM Series) The Samtec TFM-110 series parts (TFM-110-22-L-D-A, TFM-110-22-L-D-LC, TFM-110-22-S-D-A, TFM-110-22-S-D-A-P-TR, TFM-110-22-S-D-K-TR, TFM-110-22-S-D-LC) provide functional substitution with the following compatibility parameters:

Identical pitch (0.050" / 1.27mm)
Identical position count (20 positions, 2 rows)
Identical mounting type (Surface Mount)
Identical shrouding configuration (Shrouded - 4 Wall)
Identical fastening type (Push-Pull)
Identical termination method (Solder)
Identical insulation material (LCP)
Identical contact material (Phosphor Bronze)
Identical contact finish - mating (Gold)
Identical flammability rating (UL94 V-0)

Variations in Samtec substitutes include:

Enhanced operating temperature range (-55°C ~ 125°C versus -65°C ~ 105°C)
Increased current rating (2.9A per Contact versus 0.5A per Contact)
Voltage rating specification (275VAC)
Contact shape (Square versus Circular)
Contact length - mating (0.139" / 3.53mm versus 0.120" / 3.05mm)
Insulation height (0.360" / 9.14mm versus 0.367" / 9.33mm)
Packaging options (Tube or Tape & Reel)
Feature variations (Board Lock, Board Guide, Pick and Place)

Parameter Comparison

Parameter	104693-2 (Main)	5-104693-2	TFM-110-22-L-D-A	TFM-110-22-L-D-LC	TFM-110-22-S-D-A	TFM-110-22-S-D-A-P-TR	TFM-110-22-S-D-K-TR	TFM-110-22-S-D-LC
Manufacturer	TE Connectivity	TE Connectivity	Samtec Inc.	Samtec Inc.	Samtec Inc.	Samtec Inc.	Samtec Inc.	Samtec Inc.
Connector Type	Header	Header	Header	Header	Header	Header	Header	Header
Contact Type	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin
Number of Positions	20	20	20	20	20	20	20	20
Number of Rows	2	2	2	2	2	2	2	2
Pitch - Mating	0.050" (1.27mm)	0.050" (1.27mm)	0.050" (1.27mm)	0.050" (1.27mm)	0.050" (1.27mm)	0.050" (1.27mm)	0.050" (1.27mm)	0.050" (1.27mm)
Row Spacing - Mating	0.050" (1.27mm)	0.050" (1.27mm)	0.050" (1.27mm)	0.050" (1.27mm)	0.050" (1.27mm)	0.050" (1.27mm)	0.050" (1.27mm)	0.050" (1.27mm)
Mounting Type	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall
Fastening Type	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull
Termination	Solder	Solder	Solder	Solder	Solder	Solder	Solder	Solder
Insulation Material	LCP	LCP	LCP	LCP	LCP	LCP	LCP	LCP
Contact Material	Phosphor Bronze	Phosphor Bronze	Phosphor Bronze	Phosphor Bronze	Phosphor Bronze	Phosphor Bronze	Phosphor Bronze	Phosphor Bronze
Contact Finish - Mating	Gold	Gold	Gold	Gold	Gold	Gold	Gold	Gold
Operating Temperature	-65°C ~ 105°C	-65°C ~ 105°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C
Current Rating	0.5A per Contact	0.5A per Contact	2.9A per Contact	2.9A per Contact	2.9A per Contact	2.9A per Contact	2.9A per Contact	2.9A per Contact
Voltage Rating	Not specified	Not specified	275VAC	275VAC	275VAC	275VAC	275VAC	275VAC
Material Flammability	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0
Contact Shape	Circular	Circular	Square	Square	Square	Square	Square	Square
Contact Length - Mating	0.120" (3.05mm)	0.120" (3.05mm)	0.139" (3.53mm)	0.139" (3.53mm)	0.139" (3.53mm)	0.139" (3.53mm)	0.139" (3.53mm)	0.139" (3.53mm)
Insulation Height	0.367" (9.33mm)	0.367" (9.33mm)	0.360" (9.14mm)	0.360" (9.14mm)	0.360" (9.14mm)	0.360" (9.14mm)	0.360" (9.14mm)	0.360" (9.14mm)
Moisture Sensitivity Level	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)
RoHS Status	RoHS non-compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant
Product Status	Active	Active	Active	Active	Active	Active	Active	Active
Packaging	Tube	Tube	Tube	Tube	Tube	Tape & Reel (TR)	Tape & Reel (TR)	Tube

Engineering Selection Recommendations

For RoHS3 Compliance Requirement with Identical Performance: Select part 5-104693-2 when regulatory compliance with RoHS3 standards is required while maintaining identical electrical specifications and mechanical compatibility with the original 104693-2. This part is manufactured by TE Connectivity and maintains the same AMPMODU 50/50 Grid series designation. The only functional difference is the contact finish post material (Tin versus Tin-Lead), which does not affect mating performance.

For Enhanced Thermal and Current Performance: Select Samtec Tiger Eye™ TFM series parts (TFM-110-22-L-D-A, TFM-110-22-L-D-LC, TFM-110-22-S-D-A, TFM-110-22-S-D-A-P-TR, TFM-110-22-S-D-K-TR, TFM-110-22-S-D-LC) when applications require increased current capacity (2.9A per Contact versus 0.5A per Contact) and extended operating temperature range (-55°C ~ 125°C versus -65°C ~ 105°C). All Samtec substitutes maintain ROHS3 compliance and identical core connector geometry.

For Automated Assembly Processes: Select TFM-110-22-S-D-A-P-TR or TFM-110-22-S-D-K-TR when tape and reel packaging is required for pick-and-place assembly operations. Both parts include pick-and-place features and are supplied in Tape & Reel format with 2000 and 1309 units in inventory respectively.

For Board Locking Feature Requirement: Select TFM-110-22-L-D-LC or TFM-110-22-S-D-LC when board lock features are specified in design requirements. These Samtec parts provide board lock functionality equivalent to the original 104693-2 board lock feature.

For Board Guide Feature Requirement: Select TFM-110-22-L-D-A, TFM-110-22-S-D-A, or TFM-110-22-S-D-A-P-TR when board guide features are required. These parts provide board guide functionality as an alternative to the board lock configuration.

All substitute parts maintain active product status and are available in current inventory quantities ranging from 919 to 2000 units.

Frequently Asked Questions (FAQ)

Q: Can the 5-104693-2 be used as a direct replacement for the 104693-2 in all applications?

A: Yes. The 5-104693-2 maintains identical electrical specifications, mechanical dimensions, and connector geometry. The primary difference is RoHS3 compliance status. The contact finish post material differs (Tin versus Tin-Lead), but this does not affect mating performance or electrical characteristics. Selection depends on regulatory compliance requirements for your application.

Q: What are the key differences between the TE Connectivity 104693-2 and Samtec TFM-110 series substitutes?

A: The primary differences are current rating (0.5A versus 2.9A per contact), operating temperature range (-65°C ~ 105°C versus -55°C ~ 125°C), contact shape (circular versus square), contact length (0.120" versus 0.139"), and voltage rating specification (not specified versus 275VAC). All other core parameters including pitch, position count, mounting type, shrouding, fastening, and termination remain identical.

Q: Are Samtec TFM-110 series parts backward compatible with the 104693-2?

A: Samtec TFM-110 series parts are functionally compatible for board-to-board mating applications due to identical pitch (1.27mm), position count (20), and shrouded 4-wall configuration. However, the increased contact length (0.139" versus 0.120") and different insulation height (0.360" versus 0.367") may affect mating stack height and PCB layout. Verify mechanical fit in your specific application before implementation.

Q: Which substitute part should I select for high-current applications?

A: Select any Samtec TFM-110 series part (TFM-110-22-L-D-A, TFM-110-22-L-D-LC, TFM-110-22-S-D-A, TFM-110-22-S-D-A-P-TR, TFM-110-22-S-D-K-TR, or TFM-110-22-S-D-LC) for applications requiring current capacity greater than 0.5A per contact. These parts provide 2.9A per contact rating with 275VAC voltage specification.

Q: What packaging options are available for automated assembly?

A: Tape & Reel packaging is available for TFM-110-22-S-D-A-P-TR (2000 units in inventory) and TFM-110-22-S-D-K-TR (1309 units in inventory). Both include pick-and-place features. Tube packaging is available for all other substitute parts.

Q: Does the contact shape difference (circular versus square) affect electrical performance?

A: Contact shape does not affect electrical performance. The circular contacts in the 104693-2 and 5-104693-2 provide equivalent electrical characteristics to the square contacts in Samtec TFM-110 series parts. Contact shape is a mechanical design feature that does not impact signal integrity or current carrying capacity within the specified ratings.

Q: Are all substitute parts RoHS3 compliant?

A: Yes. The 5-104693-2 and all Samtec TFM-110 series parts are ROHS3 compliant. The original 104693-2 is RoHS non-compliant. Select compliant alternatives when regulatory requirements mandate RoHS3 compliance.

Q: What is the difference between TFM-110-22-S-D-A and TFM-110-22-S-D-LC?

A: Both parts are identical except for the fastening feature. TFM-110-22-S-D-A includes a board guide feature, while TFM-110-22-S-D-LC includes a board lock feature. Select based on your mechanical design requirement for connector retention.

Q: Can I mix and match substitute parts in the same application?

A: Yes, all substitute parts maintain identical core electrical and mechanical parameters (pitch, position count, mounting type, shrouding, fastening, and termination). However, verify that any differences in contact length, insulation height, or current rating do not conflict with your specific PCB layout and application requirements.

Q: What inventory quantities are available for each substitute part?

A: Inventory quantities are as follows: 5-104693-2 (1900 units), TFM-110-22-L-D-A (919 units), TFM-110-22-L-D-LC (956 units), TFM-110-22-S-D-A (1021 units), TFM-110-22-S-D-A-P-TR (2000 units), TFM-110-22-S-D-K-TR (1309 units), and TFM-110-22-S-D-LC (1017 units).
