TE Connectivity AMP Connectors 104656-3 Equivalent & Substitute Parts

Part Overview

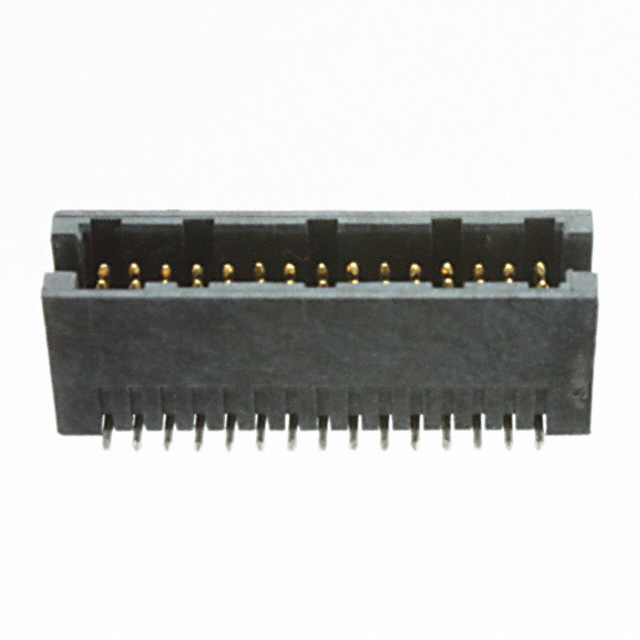

The TE Connectivity AMP Connectors 104656-3 is a rectangular connector header designed for surface mount applications. This connector features 30 positions arranged in 2 rows with 0.050" (1.27mm) pitch spacing, suitable for board-to-board interconnections. The part is classified as Active product status and is widely used in automotive, medical, military, and telecommunications applications. Substitute parts are identified to provide alternative sourcing options when the primary part is unavailable or when design requirements necessitate alternative connector specifications.

Substiute Parts

104656-3

TE Connectivity AMP ConnectorsIn Stock: 1069104656-3 Datasheet

Current PartRFQ

TFC-115-12-L-D-A-K-TR

Samtec Inc.In Stock: 1379TFC-115-12-L-D-A-K-TR Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the TE Connectivity 104656-3 are identified based on strict electrical and mechanical parameter compatibility. The primary substitution criteria are:

Critical Matching Parameters:

• Pitch - Mating: 0.050" (1.27mm)
• Number of Positions: 30
• Number of Rows: 2
• Row Spacing - Mating: 0.050" (1.27mm)
• Connector Type: Header
• Contact Type: Male Pin
• Mounting Type: Surface Mount
• Shrouding: Shrouded - 4 Wall
• Fastening Type: Push-Pull
• Insulation Material: Liquid Crystal Polymer (LCP)
• Material Flammability Rating: UL94 V-0

The Samtec Inc. TFC-115-12-L-D-A-K-TR meets all critical mechanical and electrical compatibility requirements for direct substitution in board-to-board applications. Both parts share identical pitch spacing, position count, row configuration, and mounting methodology, ensuring mechanical interchangeability within the same PCB footprint.

Parameter Comparison

Engineering Selection Recommendations

Both the TE Connectivity 104656-3 and Samtec TFC-115-12-L-D-A-K-TR are Active product status connectors with full RoHS compliance certifications. The TE Connectivity part carries RoHS Compliant status, while the Samtec substitute carries ROHS3 Compliant status, both meeting current regulatory requirements.

The Samtec TFC-115-12-L-D-A-K-TR provides enhanced electrical performance characteristics with a current rating of 3.1A per contact compared to 0.5A per contact on the TE Connectivity part, and includes a specified voltage rating of 275VAC. The Samtec part also supports an extended operating temperature range of -55°C ~ 125°C versus -65°C ~ 105°C on the TE Connectivity part.

Both connectors share identical mechanical specifications including pitch, position count, row spacing, shrouding configuration, and fastening methodology, ensuring direct PCB footprint compatibility. The primary difference in contact geometry (circular versus square) does not affect electrical or mechanical interchangeability in standard board-to-board applications.

Selection between these parts should be based on application-specific current and voltage requirements. The Samtec part is suitable for applications requiring higher current capacity or explicit voltage rating specifications. The TE Connectivity part remains appropriate for standard-current applications within its specified operating parameters.

Frequently Asked Questions (FAQ)

Q: Are the TE Connectivity 104656-3 and Samtec TFC-115-12-L-D-A-K-TR mechanically interchangeable?

A: Yes. Both connectors share identical pitch spacing (0.050"), position count (30), row configuration (2 rows), row spacing (0.050"), shrouding type (Shrouded - 4 Wall), and mounting methodology (Surface Mount). They are mechanically interchangeable within the same PCB footprint.

Q: What is the primary electrical difference between these two connectors?

A: The Samtec TFC-115-12-L-D-A-K-TR has a current rating of 3.1A per contact and includes a voltage rating of 275VAC, compared to the TE Connectivity 104656-3 with 0.5A per contact and no specified voltage rating. Applications requiring higher current capacity should use the Samtec part.

Q: Do both connectors meet RoHS requirements?

A: Yes. The TE Connectivity 104656-3 is RoHS Compliant, and the Samtec TFC-115-12-L-D-A-K-TR is ROHS3 Compliant. Both meet current regulatory compliance standards.

Q: What is the difference in contact geometry between these parts?

A: The TE Connectivity 104656-3 features circular contact shapes, while the Samtec TFC-115-12-L-D-A-K-TR features square contact shapes. This difference does not affect electrical or mechanical interchangeability in standard board-to-board applications.

Q: What are the packaging differences?

A: The TE Connectivity 104656-3 is supplied in Tube packaging, while the Samtec TFC-115-12-L-D-A-K-TR is supplied in Tape & Reel (TR) packaging. Packaging selection depends on production volume and assembly process requirements.

Q: What is the operating temperature range difference?

A: The TE Connectivity 104656-3 operates from -65°C to 105°C, while the Samtec TFC-115-12-L-D-A-K-TR operates from -55°C to 125°C. The Samtec part provides an extended upper temperature limit of 20°C.

Q: Are both connectors suitable for automotive, medical, and military applications?

A: The TE Connectivity 104656-3 is specified for automotive, general purpose, medical, military, and telecommunications applications. Application suitability for the Samtec part should be confirmed based on specific design requirements and industry certifications needed for the end application.

Q: What is the moisture sensitivity level for both connectors?

A: Both connectors have a Moisture Sensitivity Level (MSL) of 1 (Unlimited), indicating no moisture sensitivity restrictions for storage and handling.
