TE Connectivity 104655-9 Equivalent & Substitute Parts

Part Overview

The TE Connectivity 104655-9 is a surface mount rectangular connector header with 80 positions, 1.27mm pitch, and 2-row configuration. This component is classified as Active product status with 943 units in current inventory. The AMPMODU 50/50 Grid series connector features shrouded 4-wall design, push-pull fastening, and board lock functionality suitable for automotive, medical, military, and telecommunications applications.

Substitute parts are necessary when the primary part becomes unavailable, when alternative compliance certifications are required, or when design specifications allow for functionally equivalent components with enhanced electrical performance or different packaging formats.

Key Parameters

Parameter	Value
Connector Type	Header
Contact Type	Male Pin
Number of Positions	80
Number of Rows	2
Pitch - Mating	0.050" (1.27mm)
Row Spacing - Mating	0.050" (1.27mm)
Mounting Type	Surface Mount
Shrouding	Shrouded - 4 Wall
Termination	Solder
Fastening Type	Push-Pull
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Material	Phosphor Bronze
Operating Temperature Range	-65°C ~ 105°C
Current Rating	0.5A per Contact
Material Flammability Rating	UL94 V-0

Substitute Part Grouping Explanation

Substitution eligibility for the TE Connectivity 104655-9 is determined by strict adherence to the following core parameters:

Critical Parameters (Must Match Exactly):

Number of Positions: 80
Number of Rows: 2
Pitch - Mating: 0.050" (1.27mm)
Row Spacing - Mating: 0.050" (1.27mm)
Connector Type: Header
Contact Type: Male Pin
Mounting Type: Surface Mount
Shrouding: Shrouded - 4 Wall
Termination: Solder
Insulation Material: Liquid Crystal Polymer (LCP)

Allowable Variations:

Fastening Type: Push-Pull or Friction Lock
Contact Finish - Mating: Gold (with varying thickness specifications)
Contact Finish - Post: Tin, Tin-Lead, or Gold
Contact Length - Mating: 0.120" to 0.134" (3.05mm to 3.39mm)
Insulation Height: 0.220" to 0.226" (5.60mm to 5.74mm)
Operating Temperature Range: -55°C to -65°C minimum; 105°C to 125°C maximum
Current Rating: 0.5A to 2.9A per Contact
Packaging Format: Tube, Tape & Reel, Cut Tape, or Bulk
RoHS Compliance: Non-compliant or ROHS3 Compliant
Series: AMPMODU 50/50 Grid, Tiger Eye™ TFM, or Tiger Eye™ TFML

Parameter Comparison

Parameter	104655-9 (TE)	5-104655-9 (TE)	TFM-140-02-L-D (Samtec)	TFM-140-02-L-D-A (Samtec)	TFM-140-02-L-D-LC (Samtec)	TFM-140-02-S-D (Samtec)	TFM-140-02-S-D-LC (Samtec)	TFM-140-02-S-D-K-TR (Samtec)	TFM-140-02-S-D-A-P-TR (Samtec)	TFML-140-02-S-D (Samtec)	TFML-140-02-H-D-A (Samtec)
Connector Type	Header	Header	Header	Header	Header	Header	Header	Header	Header	Header	Header
Contact Type	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin
Number of Positions	80	80	80	80	80	80	80	80	80	80	80
Number of Rows	2	2	2	2	2	2	2	2	2	2	2
Pitch - Mating	0.050" (1.27mm)	0.050" (1.27mm)	0.050" (1.27mm)	0.050" (1.27mm)	0.050" (1.27mm)	0.050" (1.27mm)	0.050" (1.27mm)	0.050" (1.27mm)	0.050" (1.27mm)	0.050" (1.27mm)	0.050" (1.27mm)
Row Spacing - Mating	0.050" (1.27mm)	0.050" (1.27mm)	0.050" (1.27mm)	0.050" (1.27mm)	0.050" (1.27mm)	0.050" (1.27mm)	0.050" (1.27mm)	0.050" (1.27mm)	0.050" (1.27mm)	0.050" (1.27mm)	0.050" (1.27mm)
Mounting Type	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall
Termination	Solder	Solder	Solder	Solder	Solder	Solder	Solder	Solder	Solder	Solder	Solder
Fastening Type	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Friction Lock	Friction Lock
Contact Shape	Circular	Circular	Square	Square	Square	Square	Square	Square	Square	Square	Square
Contact Length - Mating	0.120" (3.05mm)	0.120" (3.05mm)	0.131" (3.33mm)	0.131" (3.33mm)	0.131" (3.33mm)	0.131" (3.33mm)	0.131" (3.33mm)	0.131" (3.33mm)	0.131" (3.33mm)	0.134" (3.39mm)	0.134" (3.39mm)
Insulation Height	0.226" (5.74mm)	0.226" (5.74mm)	0.220" (5.60mm)	0.220" (5.60mm)	0.220" (5.60mm)	0.220" (5.60mm)	0.220" (5.60mm)	0.220" (5.60mm)	0.220" (5.60mm)	0.220" (5.60mm)	0.220" (5.60mm)
Insulation Material	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)
Contact Material	Phosphor Bronze	Phosphor Bronze	Phosphor Bronze	Phosphor Bronze	Phosphor Bronze	Phosphor Bronze	Phosphor Bronze	Phosphor Bronze	Phosphor Bronze	Phosphor Bronze	Phosphor Bronze
Operating Temperature	-65°C ~ 105°C	-65°C ~ 105°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C
Current Rating (Amps)	0.5A per Contact	0.5A per Contact	2.9A per Contact	2.9A per Contact	2.9A per Contact	2.9A per Contact	2.9A per Contact	2.9A per Contact	2.9A per Contact	Not Specified	Not Specified
Voltage Rating	Not Specified	Not Specified	275VAC	275VAC	275VAC	275VAC	275VAC	275VAC	275VAC	Not Specified	Not Specified
Material Flammability Rating	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0
RoHS Status	RoHS non-compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant
Product Status	Active	Discontinued at DiGi Electronics	Active	Active	Active	Active	Active	Active	Active	Active	Active

Engineering Selection Recommendations

Primary Substitute - TE Connectivity 5-104655-9: The 5-104655-9 is a direct variant of the 104655-9 with identical electrical and mechanical specifications. The primary distinction is ROHS3 compliance status, making this part suitable for applications requiring RoHS certification. However, this part is discontinued at DiGi Electronics, limiting availability for new designs.

Samtec Tiger Eye™ TFM Series - Enhanced Performance Substitutes: The Samtec TFM-140 series provides functionally equivalent 80-position, 1.27mm pitch headers with enhanced electrical performance. All TFM variants feature 2.9A per contact current rating (5.8x higher than the original) and 275VAC voltage rating. All TFM parts are ROHS3 compliant and active products with consistent availability.

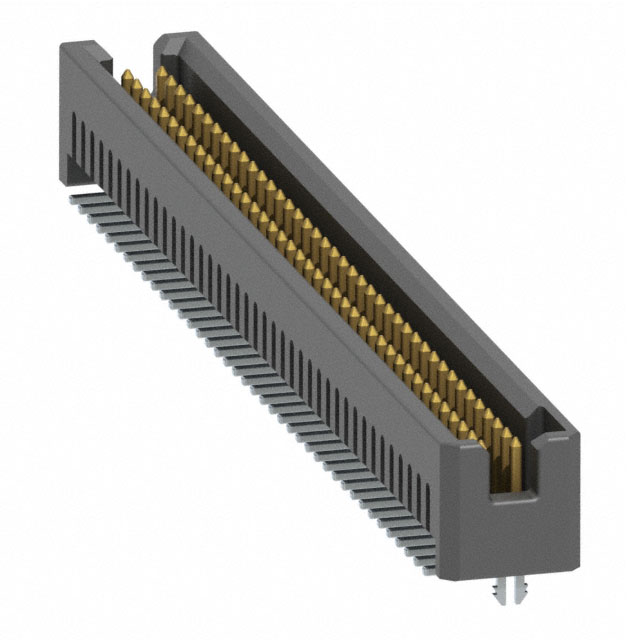

TFM-140-02-L-D-LC (Samtec): Recommended for applications requiring board lock functionality with standard gold mating contact finish (15.0µin). Active status with 1225 units in inventory.

TFM-140-02-S-D-LC (Samtec): Recommended for applications requiring board lock functionality with enhanced gold mating contact finish (30.0µin). Active status with 840 units in inventory.

TFM-140-02-S-D-K-TR (Samtec): Recommended for high-volume automated assembly requiring tape & reel packaging with pick-and-place compatibility. Enhanced gold mating contact finish (30.0µin). Active status with 1228 units in inventory.

Samtec Tiger Eye™ TFML Series - Friction Lock Alternatives: The TFML-140 series provides friction lock fastening as an alternative to push-pull mechanisms. These parts are suitable for applications where friction lock retention is acceptable.

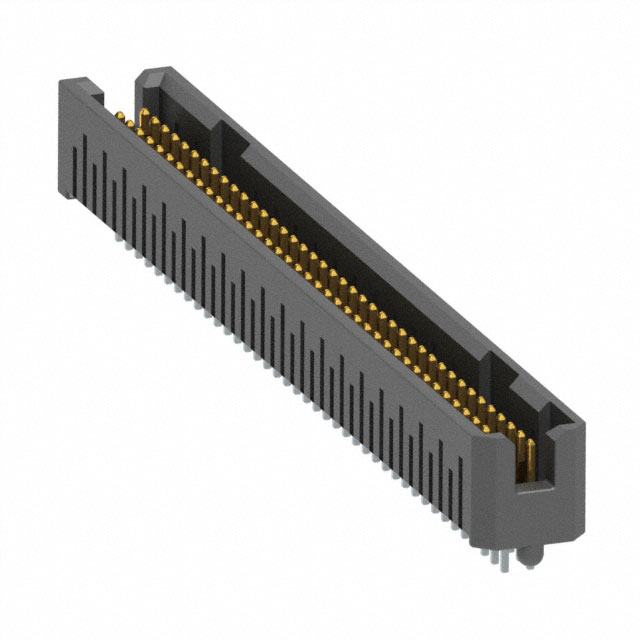

TFML-140-02-S-D (Samtec): Friction lock variant with tin post finish. Active status with 752 units in inventory.

TFML-140-02-H-D-A (Samtec): Friction lock variant with board guide feature and gold post finish. Active status with 1008 units in inventory.

Frequently Asked Questions (FAQ)

Q: Can I substitute the TE Connectivity 104655-9 with a Samtec TFM-140 series connector?

A: Yes. Both part families meet the critical substitution parameters: 80 positions, 2 rows, 0.050" (1.27mm) pitch, surface mount, shrouded 4-wall design, solder termination, and LCP insulation. The Samtec TFM series provides enhanced current rating (2.9A vs. 0.5A per contact) and voltage rating (275VAC), making it suitable for higher-power applications. All TFM variants are ROHS3 compliant and active products.

Q: What is the difference between TFM-140-02-L-D and TFM-140-02-S-D?

A: The primary difference is the contact finish thickness on the mating surface. TFM-140-02-L-D features 15.0µin (0.38µm) gold finish, while TFM-140-02-S-D features 30.0µin (0.76µm) gold finish. The thicker finish on the S-D variant provides enhanced durability for high-cycle mating applications. Both parts are functionally equivalent for standard applications.

Q: What does the "-LC" suffix indicate in part numbers like TFM-140-02-L-D-LC?

A: The "-LC" suffix indicates board lock functionality. This feature provides mechanical retention between the header and mating connector, preventing accidental disconnection. The 104655-9 also includes board lock, making TFM-140-02-L-D-LC and TFM-140-02-S-D-LC direct functional equivalents in this regard.

Q: Can I use TFML-140 series connectors as substitutes for the 104655-9?

A: TFML-140 series connectors are functionally equivalent for 80-position, 1.27mm pitch applications. The primary difference is the fastening mechanism: TFML uses friction lock instead of push-pull. Friction lock provides retention through mechanical interference rather than a locking lever. This substitution is valid only if the mating connector is also friction lock compatible.

Q: What is the significance of the "-K-TR" suffix in TFM-140-02-S-D-K-TR?

A: The "-K-TR" suffix indicates tape & reel packaging with pick-and-place compatibility. This packaging format is optimized for automated assembly processes. The "K" denotes the specific tape configuration, and "TR" indicates tape & reel format. This variant is suitable for high-volume manufacturing environments.

Q: Are all substitute parts ROHS3 compliant?

A: All Samtec TFM and TFML series substitutes listed are ROHS3 compliant. The original TE Connectivity 104655-9 is RoHS non-compliant. The TE Connectivity 5-104655-9 variant is ROHS3 compliant but is discontinued at DiGi Electronics. For new designs requiring RoHS compliance, Samtec substitutes are the recommended choice.

Q: What is the operating temperature difference between the 104655-9 and Samtec substitutes?

A: The 104655-9 operates from -65°C to 105°C. Samtec TFM and TFML series operate from -55°C to 125°C. The Samtec parts provide a wider high-temperature range (20°C higher maximum) but a narrower low-temperature range (10°C higher minimum). For applications requiring -65°C operation, the 104655-9 or 5-104655-9 must be used.

Q: Can I mix 104655-9 headers with Samtec TFM-140 receptacles in the same assembly?

A: No. Connector compatibility requires matching both the header and receptacle from the same manufacturer series. The 104655-9 header mates with TE Connectivity AMP receptacles. Samtec TFM headers mate with Samtec TFM receptacles. Cross-manufacturer mating is not supported.

Q: What packaging options are available for the substitute parts?

A: Samtec TFM and TFML series are available in multiple packaging formats: Tube (standard), Tape & Reel (TR), Cut Tape (CT), and Bulk. The packaging selection depends on manufacturing volume and assembly automation requirements. Tube packaging is suitable for low-to-medium volume applications, while Tape & Reel is optimized for high-volume automated pick-and-place assembly.

Q: Is the contact shape difference (circular vs. square) significant for substitution?

A: The contact shape difference between the 104655-9 (circular contacts) and Samtec TFM series (square contacts) does not affect electrical or mechanical compatibility with properly designed mating receptacles. Both contact geometries provide equivalent contact pressure and signal integrity when mated with corresponding receptacle designs. The shape difference is a manufacturing variation within the same functional category.
