TE Connectivity 104550-7 Rectangular Connector Equivalent & Substitute Parts

Part Overview

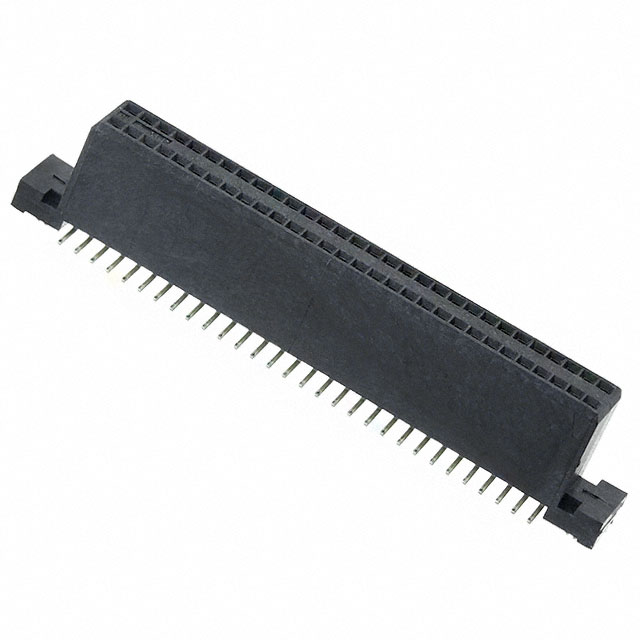

The TE Connectivity 104550-7 is a 60-position receptacle connector from the AMPMODU System 50 series, designed for board-to-board surface mount applications. This connector features 0.050" (1.27mm) pitch mating contacts with gold plating and operates across the temperature range of -65°C to 105°C. The part is currently active in production with 1053 pieces available in stock.

Identifying equivalent and substitute parts is necessary to ensure design flexibility, manage supply chain continuity, and accommodate varying compliance requirements across different manufacturing environments and regulatory jurisdictions.

Substiute Parts

104550-7

TE Connectivity AMP ConnectorsIn Stock: 1136104550-7 Datasheet

Current PartRFQ

5-104550-7

TE Connectivity AMP ConnectorsIn Stock: 14225-104550-7 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the TE Connectivity 104550-7 is determined by strict equivalence across the following critical parameters:

Mandatory Matching Parameters:

• Connector type (Receptacle)
• Number of positions (60)
• Pitch - mating (0.050" / 1.27mm)
• Number of rows (2)
• Row spacing - mating (0.100" / 2.54mm)
• Mounting type (Surface Mount)
• Contact finish - mating (Gold)
• Operating temperature range (-65°C ~ 105°C)
• Voltage rating (30VAC)
• Material flammability rating (UL94 V-0)
• Fastening type (Push-Pull)

The substitute part 5-104550-7 meets all mandatory matching parameters and is therefore classified as a direct equivalent. Variations in contact finish post material and RoHS compliance status do not affect functional interchangeability in the specified application context.

Parameter Comparison

Engineering Selection Recommendations

Both the 104550-7 and 5-104550-7 are active production parts from TE Connectivity and are functionally equivalent for board-to-board surface mount applications requiring 60-position receptacle connectors with 0.050" pitch and gold mating contacts.

Selection Criteria Based on Compliance Requirements:

The 5-104550-7 is designated as ROHS3 Compliant with REACH Unaffected status, making it the appropriate choice for applications subject to European Union RoHS Directive 3 and REACH regulations. This part features tin post finish instead of tin-lead, aligning with lead-free manufacturing requirements.

The 104550-7 carries "Not applicable" RoHS status and "Vendor Undefined" REACH status, indicating it may contain lead in the post finish (tin-lead). This part is suitable for applications without RoHS or REACH compliance mandates.

Both parts maintain identical electrical and mechanical specifications, including operating temperature range (-65°C to 105°C), voltage rating (30VAC), and UL94 V-0 flammability rating. Selection between these parts should be based solely on regulatory compliance requirements applicable to the end application and manufacturing jurisdiction.

Frequently Asked Questions (FAQ)

Q: Are the 104550-7 and 5-104550-7 mechanically interchangeable?

A: Yes. Both parts are 60-position receptacle connectors with identical pitch (0.050"), row spacing (0.100"), mounting type (surface mount), and mated stacking heights (11.94mm and 13.08mm). They are mechanically interchangeable in board-to-board applications.

Q: What is the difference between the contact post finishes?

A: The 104550-7 features tin-lead post finish, while the 5-104550-7 features tin post finish. Both finishes provide equivalent solderability and electrical performance. The tin finish in the 5-104550-7 aligns with lead-free manufacturing standards.

Q: Which part should be selected for RoHS-compliant applications?

A: The 5-104550-7 is designated ROHS3 Compliant and is the appropriate selection for applications requiring RoHS Directive 3 compliance. The 104550-7 carries "Not applicable" RoHS status.

Q: Do both parts operate across the same temperature range?

A: Yes. Both the 104550-7 and 5-104550-7 operate across the identical temperature range of -65°C to 105°C and carry the same UL94 V-0 flammability rating.

Q: Are there any electrical performance differences between these parts?

A: No. Both parts carry identical voltage ratings (30VAC), contact materials (phosphor bronze), mating contact finish (gold at 30.0µin thickness), and fastening type (push-pull). Electrical performance is equivalent.

Q: What is the significance of the different REACH statuses?

A: The 5-104550-7 is marked REACH Unaffected, indicating compliance with REACH registration requirements. The 104550-7 shows Vendor Undefined status. For applications subject to REACH regulations, the 5-104550-7 is the appropriate selection.

Q: Can these parts be used interchangeably in existing designs?

A: Yes, provided the application does not have specific compliance mandates. If the design is subject to RoHS or REACH requirements, the 5-104550-7 must be used. For applications without such requirements, either part is functionally equivalent.

Q: What is the current inventory status for each part?

A: The 104550-7 has 1053 pieces in stock, while the 5-104550-7 has 1342 pieces in stock. Both parts are available for immediate procurement.
