TE Connectivity AMP Connectors 104506-5 Equivalent & Substitute Parts

Part Overview

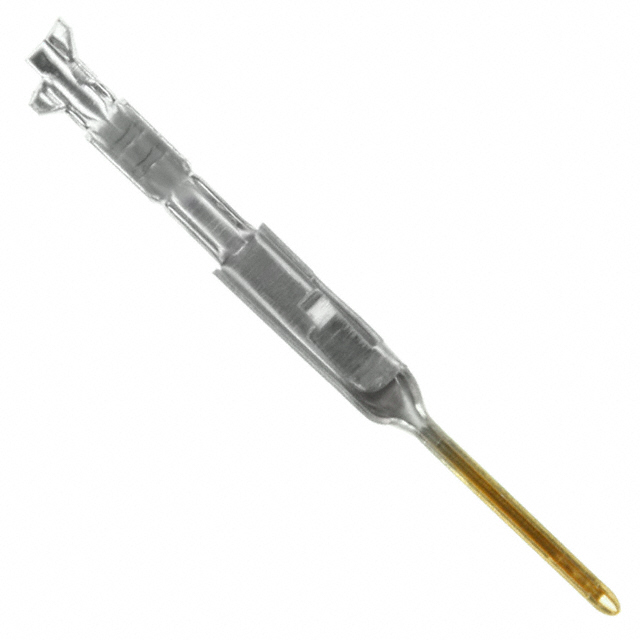

The TE Connectivity AMP Connectors 104506-5 is a rectangular connector pin contact designed for crimp termination applications. This component is classified as a pin contact within the AMPMODU MTE series and is engineered for wire gauges ranging from 28 to 32 AWG. The part maintains Active product status and is currently available in inventory. Identification of equivalent and substitute parts becomes necessary when addressing specific compliance requirements, managing supply chain alternatives, or accommodating design revisions that require RoHS compliance or alternative packaging configurations.

Substiute Parts

104506-5

TE Connectivity AMP ConnectorsIn Stock: 1036104506-5 Datasheet

Current PartRFQ

5-104506-5

TE Connectivity AMP ConnectorsIn Stock: 43445-104506-5 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of rectangular connector pin contacts within the AMPMODU MTE series is determined by strict equivalence across the following parameters:

• Wire Gauge Compatibility: Both the main part and substitute must support 28-32 AWG wire gauges
• Contact Termination Method: Crimp termination must be maintained across all substitutes
• Contact Finish Specification: Gold plating with 15.0µin (0.38µm) thickness must be identical
• Connector Series: Parts must belong to the AMPMODU MTE series
• Pin or Socket Configuration: Pin contacts must remain consistent
• Moisture Sensitivity Level: MSL rating of 1 (Unlimited) must be preserved

The substitute part 5-104506-5 satisfies all these parameters and represents a direct functional equivalent. The primary distinction between the main part and its substitute relates to RoHS compliance status and REACH vendor definition, which are regulatory and supply chain attributes rather than functional or electrical characteristics.

Parameter Comparison

Engineering Selection Recommendations

Selection Based on Regulatory Compliance:

The 104506-5 is classified as RoHS non-compliant, while the substitute part 5-104506-5 achieves ROHS3 compliance. For applications subject to RoHS directives or customer specifications requiring RoHS3 compliance, the 5-104506-5 substitute is the appropriate selection. Both parts maintain identical functional and electrical characteristics, including wire gauge support, contact finish, and termination method.

Selection Based on Product Status:

Both the main part and substitute maintain Active product status, indicating ongoing manufacturer support and availability. Neither part is obsolete or end-of-life.

Selection Based on Inventory Availability:

The substitute part 5-104506-5 maintains higher inventory levels (4263 pieces) compared to the main part 104506-5 (928 pieces), providing enhanced supply chain flexibility for high-volume applications.

Selection Based on Export Classification:

Both parts carry identical ECCN (EAR99) and HTSUS (8536.90.4000) classifications, indicating no differential impact on export or tariff considerations.

Frequently Asked Questions (FAQ)

Q: Can the 5-104506-5 substitute be used in place of the 104506-5 without design modifications?

A: Yes. The 5-104506-5 is a direct functional equivalent. Both parts support identical wire gauges (28-32 AWG), employ crimp termination, feature gold contact finish at 15.0µin thickness, and belong to the AMPMODU MTE series. No design modifications are required for substitution.

Q: What is the primary difference between these two parts?

A: The primary difference is RoHS compliance status. The 104506-5 is RoHS non-compliant, while the 5-104506-5 achieves ROHS3 compliance. All functional and electrical parameters remain identical.

Q: Are there any mechanical compatibility concerns when substituting these parts?

A: No mechanical compatibility concerns exist. Both parts are pin contacts within the same AMPMODU MTE series with identical contact configurations, wire gauge ratings, and termination methods.

Q: Which part should be selected for new designs?

A: Selection depends on regulatory requirements. For applications requiring RoHS3 compliance, specify the 5-104506-5. For applications without RoHS compliance mandates, either part is functionally equivalent.

Q: Does the substitute part have different moisture sensitivity requirements?

A: No. Both parts maintain identical Moisture Sensitivity Level (MSL) ratings of 1 (Unlimited), indicating no moisture sensitivity constraints for either component.

Q: Are there packaging differences between these parts?

A: Both parts are supplied in Bulk packaging. No packaging format differences exist between the main part and substitute.

Q: Can these parts be intermixed in the same assembly?

A: Yes. Since both parts are functionally and mechanically identical, they can be intermixed within the same assembly without performance degradation or compatibility issues.
