TE Connectivity AMP Connectors 104483-5 Equivalent & Substitute Parts

Part Overview

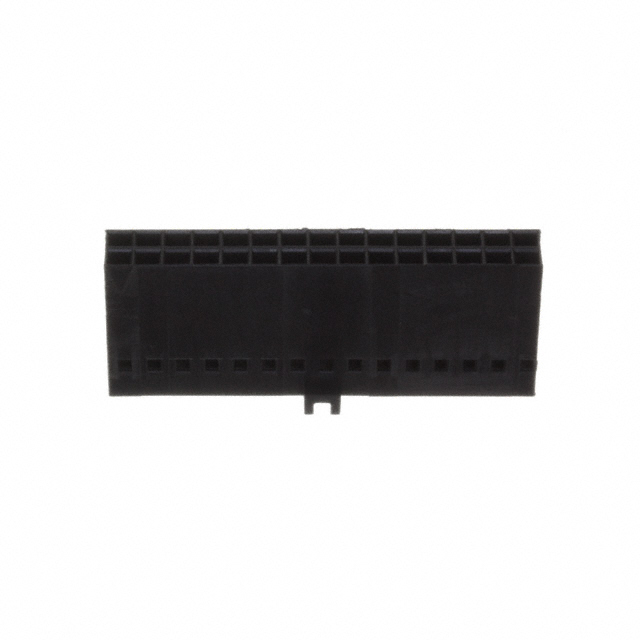

The TE Connectivity AMP Connectors 104483-5 is a 30-position rectangular connector housing designed for receptacle applications in the AMPMODU series. This connector operates as a female socket receptacle with a 0.100" (2.54mm) pitch configuration and supports crimp-style contact termination. The part is classified as Active product status and is RoHS3 compliant. Substitute parts are identified when equivalent electrical and mechanical parameters are required for design flexibility, inventory management, or supply chain continuity while maintaining functional compatibility within specified operating parameters.

Substiute Parts

104483-5

TE Connectivity AMP ConnectorsIn Stock: 792104483-5 Datasheet

Current PartRFQ

102387-7

TE Connectivity AMP ConnectorsIn Stock: 1501102387-7 Datasheet

Parametric EquivalentRFQ

69176-030LF

Amphenol ICC (FCI)In Stock: 100669176-030LF Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the TE Connectivity 104483-5 are qualified based on strict equivalence of the following critical parameters: connector type (receptacle), contact type (female socket), number of positions (30), pitch (0.100"/2.54mm), number of rows (2), row spacing (0.100"/2.54mm), mounting type (free hanging in-line), contact termination (crimp), color (black), polarizing key feature, and moisture sensitivity level (MSL 1). All substitute parts maintain these core electrical and mechanical specifications. Operating temperature ranges and insulation material composition may vary within acceptable limits for the application category. Compliance certifications (RoHS status) and product status (Active) are documented for each substitute to support engineering selection criteria.

Parameter Comparison

Engineering Selection Recommendations

All three parts—104483-5, 102387-7, and 69176-030LF—maintain Active product status and are compliant with RoHS regulations, supporting long-term design viability and regulatory adherence. The TE Connectivity 104483-5 (main part) operates across the widest temperature range (-65°C to 125°C) and carries RoHS3 certification. The TE Connectivity 102387-7 substitute operates within -65°C to 105°C and maintains RoHS compliance as part of the AMPMODU Mod IV series evolution. The Amphenol ICC 69176-030LF substitute operates within -40°C to 105°C with modified polyphenylene insulation and carries REACH Affected status, indicating additional regulatory tracking requirements.

Selection between these parts depends on application temperature requirements and regulatory environment. For applications requiring the full -65°C to 125°C operating range, the 104483-5 remains the primary choice. For applications operating within -65°C to 105°C, the 102387-7 provides equivalent functionality within the TE Connectivity AMPMODU family. For applications operating within -40°C to 105°C where cross-manufacturer sourcing is acceptable, the 69176-030LF provides an alternative from Amphenol ICC with REACH compliance tracking.

Frequently Asked Questions (FAQ)

Q: Can 102387-7 be used as a direct replacement for 104483-5?

A: The 102387-7 is electrically and mechanically equivalent to 104483-5 across all critical parameters: 30 positions, 0.100" pitch, 2-row configuration, female socket receptacle, crimp termination, and polarizing key feature. The primary difference is the reduced upper operating temperature limit (105°C versus 125°C). Direct substitution is valid for applications operating within the -65°C to 105°C range.

Q: What is the difference between the insulation materials used in these parts?

A: The 104483-5 and 102387-7 use thermoplastic insulation material. The 69176-030LF uses modified polyphenylene insulation. Both material compositions support the same MSL 1 (Unlimited) moisture sensitivity rating and maintain equivalent mechanical and electrical performance within their respective operating temperature ranges.

Q: Are all three parts RoHS compliant?

A: Yes. The 104483-5 is RoHS3 compliant. The 102387-7 and 69176-030LF are RoHS compliant. All three parts meet RoHS regulatory requirements. The 69176-030LF carries additional REACH Affected status, indicating it is subject to REACH chemical substance tracking and reporting requirements.

Q: What is the significance of the polarizing key feature?

A: The polarizing key is a mechanical feature present on all three parts that prevents incorrect mating orientation. This feature ensures proper connector alignment during assembly and reduces installation errors in applications requiring directional connector positioning.

Q: Do these parts include contacts?

A: No. All three parts are connector housings only. Contacts are not included and must be sourced separately. The housing supports crimp-style contact termination, requiring compatible female socket contacts to be procured and installed independently.

Q: What is the difference between AMPMODU and AMPMODU Mod IV series?

A: The 104483-5 belongs to the AMPMODU series, while the 102387-7 belongs to the AMPMODU Mod IV series. Both series maintain identical electrical and mechanical specifications for the 30-position, 2.54mm pitch receptacle housing. The Mod IV designation indicates a product line evolution within TE Connectivity's AMPMODU family.

Q: Can the 69176-030LF be used in applications requiring -65°C operation?

A: No. The 69176-030LF operates within -40°C to 105°C. Applications requiring operation at -65°C must use either the 104483-5 (-65°C to 125°C) or 102387-7 (-65°C to 105°C).

Q: What does MSL 1 (Unlimited) mean?

A: MSL 1 (Unlimited) indicates Moisture Sensitivity Level 1 with unlimited shelf life. This classification means the component has minimal sensitivity to moisture absorption and does not require special storage conditions or baking procedures prior to soldering or assembly.
