TE Connectivity Erni 104416 Equivalent & Substitute Parts

Part Overview

The TE Connectivity Erni 104416 is a 200-position receptacle connector with 2mm press-fit termination, designed for backplane applications. This connector features female sockets configured for board edge, through-hole mounting in a right-angle orientation. The part is classified as obsolete, necessitating identification of active equivalent components to maintain design continuity and ensure ongoing component availability for production and field service applications.

Substiute Parts

104416

TE Connectivity ErniIn Stock: 819104416 Datasheet

Current PartRFQ

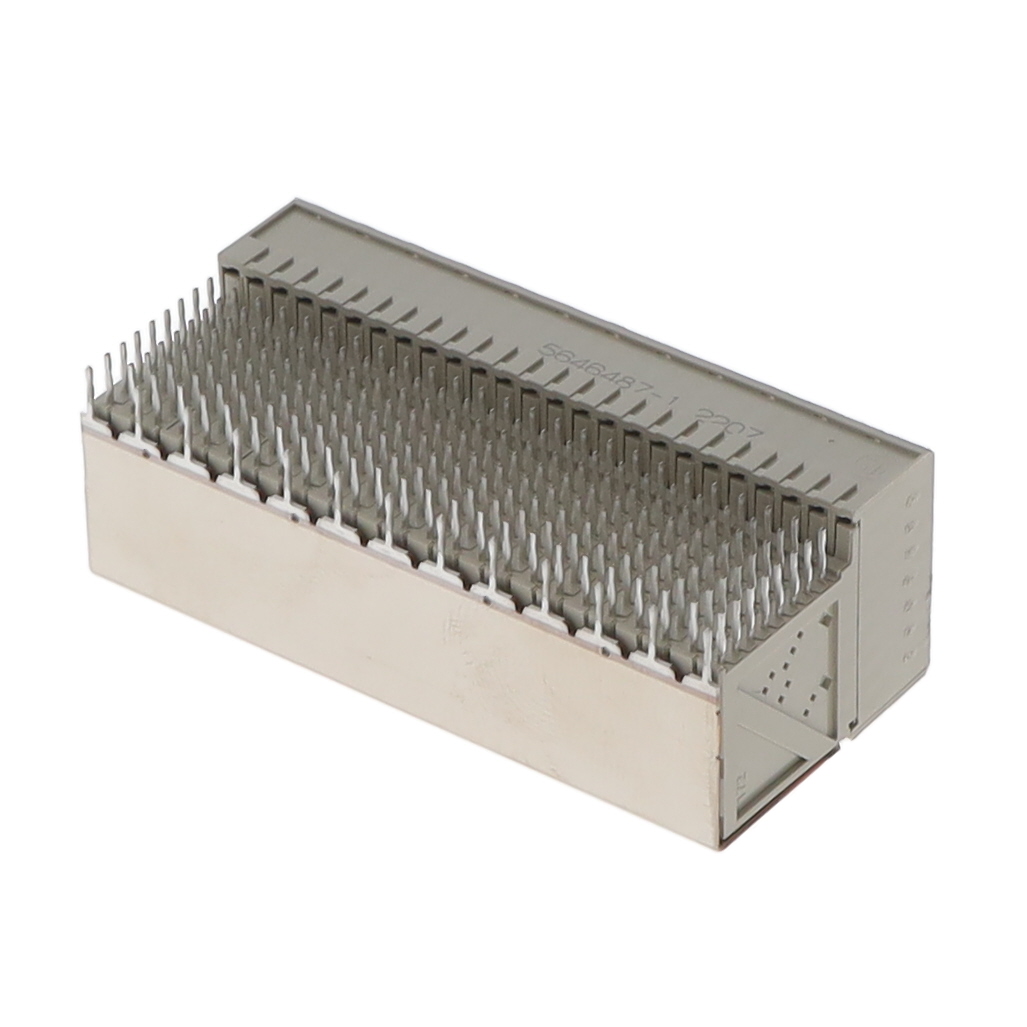

5646487-1

TE Connectivity AMP ConnectorsIn Stock: 13425646487-1 Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the TE Connectivity Erni 104416 is determined by strict equivalence across the following critical parameters:

Mandatory Matching Parameters:

• Number of Positions: 200
• Pitch: 0.079" (2.00mm)
• Connector Type: Receptacle, Female Sockets
• Termination Method: Press-Fit
• Mounting Configuration: Board Edge, Through Hole, Right Angle

The substitute part TE Connectivity AMP Connectors 5646487-1 satisfies all mandatory parameters, providing functional and mechanical interchangeability. The substitute maintains identical electrical and physical specifications while offering active product status and current manufacturing support.

Parameter Comparison

Engineering Selection Recommendations

The TE Connectivity AMP Connectors 5646487-1 is the designated manufacturer-recommended substitute for the obsolete TE Connectivity Erni 104416. This substitution is supported by:

Product Status Alignment: The substitute part maintains active manufacturing status, ensuring long-term component availability and supply chain continuity.

Regulatory Compliance: The 5646487-1 carries RoHS Compliant certification and EAR99 export classification, meeting current environmental and trade compliance requirements.

Electrical and Mechanical Equivalence: All critical connector parameters—position count, pitch, termination method, and mounting configuration—are identical between the original and substitute parts, ensuring direct interchangeability without design modification.

Manufacturing Support: As an active product within the TE Connectivity AMP Connectors portfolio, the 5646487-1 benefits from current manufacturing processes, quality assurance protocols, and technical documentation support.

Frequently Asked Questions (FAQ)

Q: Can the 5646487-1 be used as a direct replacement for the 104416 without PCB redesign?

A: Yes. The 5646487-1 maintains identical mechanical and electrical specifications across all critical parameters: 200 positions, 2.00mm pitch, press-fit termination, and board edge right-angle mounting. No PCB layout modification is required.

Q: What is the primary reason for substitution?

A: The original part (104416) is classified as obsolete. The 5646487-1 is an active equivalent that provides continued component availability and manufacturing support.

Q: Are there differences in contact finish or electrical ratings between the two parts?

A: The 104416 specifications for contact finish and electrical ratings are not provided in the original documentation. The 5646487-1 specifies gold contact finish (30.0µin thickness), 1.5A current rating, and 750Vrms voltage rating. These specifications should be verified against your original design requirements.

Q: What is the packaging format for the substitute part?

A: The 5646487-1 is supplied in Tube packaging, as opposed to the unspecified packaging of the original part.

Q: Does the substitute part meet RoHS requirements?

A: Yes. The 5646487-1 is RoHS Compliant, meeting current environmental regulations for restricted substances.

Q: What is the moisture sensitivity level of the substitute?

A: The 5646487-1 carries Moisture Sensitivity Level (MSL) 1, indicating unlimited shelf life without moisture control requirements.
