TE Connectivity AMP Connectors 104319-2 Equivalent & Substitute Parts

Part Overview

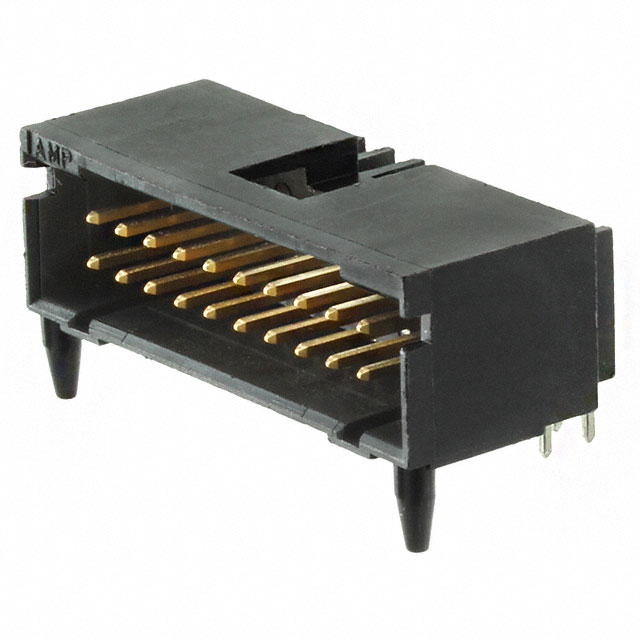

The TE Connectivity AMP Connectors 104319-2 is a rectangular connector header, right-angle configuration, with 20 positions at 2.54mm pitch. This through-hole, shrouded connector is designed for board-to-board or cable applications with solder termination and detent lock fastening. The part is classified as obsolete, necessitating identification of active equivalent and substitute components for ongoing design and procurement requirements. Substitute parts must maintain electrical and mechanical compatibility while meeting current manufacturing and compliance standards.

Key Parameters

Parameter	Value
Connector Type	Header
Contact Type	Male Pin
Number of Positions	20
Number of Rows	2
Pitch - Mating	0.100" (2.54mm)
Row Spacing - Mating	0.100" (2.54mm)
Mounting Type	Through Hole, Right Angle
Shrouding	Shrouded - 4 Wall
Termination	Solder
Operating Temperature Range	-65°C ~ 105°C
Current Rating	3A
Material Flammability Rating	UL94 V-0
Moisture Sensitivity Level	1 (Unlimited)

Substitute Part Grouping Explanation

Substitution of the TE Connectivity 104319-2 is determined by strict equivalence across the following critical parameters:

Electrical Compatibility Parameters:

Pitch - Mating: 0.100" (2.54mm)
Number of Positions: 20
Number of Rows: 2
Row Spacing - Mating: 0.100" (2.54mm)
Contact Type: Male Pin
Current Rating: 3A
Operating Temperature Range: -65°C ~ 105°C

Mechanical Compatibility Parameters:

Mounting Type: Through Hole, Right Angle
Shrouding: Shrouded - 4 Wall
Termination: Solder
Contact Shape: Square
Material Flammability Rating: UL94 V-0

Identified Substitute Categories:

Direct Equivalent (TE Connectivity 5-104319-2): Identical electrical and mechanical specifications with active product status and RoHS compliance. Differs only in packaging (Tube) and contact finish post material (Tin vs. Tin-Lead).
Functional Equivalents (Molex 0741640020 and 0741640120): Maintain core electrical parameters (pitch, position count, row spacing, current rating, temperature range) and mechanical mounting configuration. Differ in connector type classification (Receptacle vs. Header), contact material (Copper Alloy vs. Phosphor Bronze), insulation material (LCP Glass Filled vs. Thermoplastic), fastening type (Latch Holder vs. Detent Lock), and contact finish specifications.

Parameter Comparison

Parameter	104319-2 (Main)	5-104319-2	0741640020	0741640120
Manufacturer	TE Connectivity AMP	TE Connectivity AMP	Molex	Molex
Series	AMPMODU Mod II	AMPMODU Mod II	C-Grid 74164	C-Grid 74164
Product Status	Obsolete	Active	Active	Active
Connector Type	Header	Header	Receptacle	Receptacle
Contact Type	Male Pin	Male Pin	Male Pin	Male Pin
Number of Positions	20	20	20	20
Number of Rows	2	2	2	2
Pitch - Mating	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Row Spacing - Mating	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall
Termination	Solder	Solder	Solder	Solder
Contact Shape	Square	Square	Square	Square
Contact Finish - Mating	Gold	Gold	Gold	Tin
Contact Material	Phosphor Bronze	Phosphor Bronze	Copper Alloy	Copper Alloy
Insulation Material	Thermoplastic	Thermoplastic	Liquid Crystal Polymer (LCP), Glass Filled	Liquid Crystal Polymer (LCP), Glass Filled
Operating Temperature Range	-65°C ~ 105°C	-65°C ~ 105°C	Not Specified	Not Specified
Current Rating	3A	3A	Not Specified	Not Specified
Material Flammability Rating	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0
RoHS Status	RoHS Non-Compliant	RoHS Compliant	ROHS3 Compliant	ROHS3 Compliant
Moisture Sensitivity Level	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)
Packaging	Not Specified	Tube	Tube	Tube

Engineering Selection Recommendations

Primary Substitute: TE Connectivity 5-104319-2

The TE Connectivity 5-104319-2 is the direct equivalent substitute for the obsolete 104319-2. Both components share identical electrical and mechanical specifications within the AMPMODU Mod II series. The 5-104319-2 maintains active product status and achieves RoHS compliance, addressing regulatory requirements for new designs. The only material difference is the contact finish post composition (Tin vs. Tin-Lead), which does not affect functional compatibility. This part is recommended as the primary replacement for direct substitution in existing designs.

Secondary Substitutes: Molex 0741640020 and 0741640120

The Molex C-Grid 74164 series connectors (0741640020 and 0741640120) function as compatible alternatives when the primary substitute is unavailable. These parts maintain electrical compatibility through identical pitch, position count, row spacing, and mounting configuration. Both Molex parts are active products with ROHS3 compliance. The 0741640020 features gold mating contact finish, while the 0741640120 features tin mating contact finish. Differences in connector type classification, contact material, insulation material, and fastening mechanism do not preclude functional interchangeability in applications where the core electrical and mechanical parameters are the determining factors. Operating temperature and current rating specifications are not provided for the Molex parts; verification against application requirements is necessary for temperature-critical or high-current applications.

Frequently Asked Questions (FAQ)

Q: Can the TE Connectivity 5-104319-2 be used as a direct replacement for the 104319-2?

A: Yes. The 5-104319-2 is a direct equivalent with identical electrical and mechanical specifications. The primary advantage is active product status and RoHS compliance. The contact finish post material differs (Tin vs. Tin-Lead), but this does not affect functional compatibility.

Q: What are the key differences between the TE Connectivity and Molex substitute options?

A: The TE Connectivity 5-104319-2 is classified as a Header connector, while the Molex 0741640020 and 0741640120 are classified as Receptacle connectors. The Molex parts use Copper Alloy contacts and Liquid Crystal Polymer insulation, compared to Phosphor Bronze contacts and Thermoplastic insulation in the TE Connectivity parts. Fastening mechanisms also differ: TE Connectivity uses Detent Lock, while Molex uses Latch Holder. Despite these differences, all parts maintain the same pitch, position count, row spacing, mounting type, and shrouding configuration.

Q: Are the Molex parts suitable for high-temperature applications?

A: The Molex 0741640020 and 0741640120 do not specify operating temperature ranges in the provided data. The TE Connectivity 104319-2 and 5-104319-2 are rated for -65°C ~ 105°C. For applications requiring confirmed temperature specifications, the TE Connectivity 5-104319-2 is the recommended choice.

Q: Do all substitute parts meet the same current rating?

A: The TE Connectivity 104319-2 and 5-104319-2 are rated for 3A. The Molex 0741640020 and 0741640120 do not specify current ratings in the provided data. For applications requiring confirmed current specifications, the TE Connectivity 5-104319-2 is the recommended choice.

Q: What is the difference between the two Molex part numbers?

A: The Molex 0741640020 and 0741640120 differ in contact finish specifications. The 0741640020 features gold mating contact finish with 15.0µin thickness and tin post finish with 74.8µin thickness. The 0741640120 features tin mating contact finish with 150.0µin thickness and tin post finish with 150.0µin thickness. Both parts are otherwise identical in electrical and mechanical configuration.

Q: Are all substitute parts RoHS compliant?

A: The TE Connectivity 104319-2 is RoHS non-compliant. The TE Connectivity 5-104319-2 is RoHS compliant. Both Molex parts (0741640020 and 0741640120) are ROHS3 compliant. For designs requiring RoHS compliance, the 5-104319-2 or Molex alternatives are appropriate selections.

Q: What packaging options are available?

A: The TE Connectivity 5-104319-2, Molex 0741640020, and Molex 0741640120 are all supplied in Tube packaging. Packaging specifications for the original 104319-2 are not provided in the available data.
