TE Connectivity AMP Connectors 104315-1 Equivalent & Substitute Parts

Part Overview

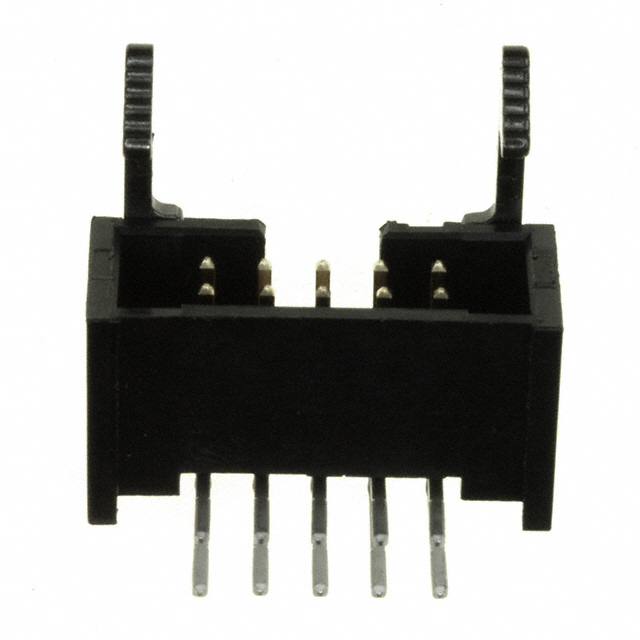

The TE Connectivity AMP Connectors 104315-1 is a rectangular connector header designed for through-hole, right-angle mounting applications. This connector features a 10-position, 2-row configuration with 0.100" (2.54mm) pitch spacing and is rated for 1A per contact at 250VAC. The part operates across a temperature range of -65°C to 105°C and incorporates shrouded 4-wall design with latch lock/eject hook fastening.

The 104315-1 carries an obsolete product status, which necessitates identification of active equivalent alternatives for ongoing procurement and design continuity. Substitute parts maintain functional compatibility while offering improved availability and compliance certifications.

Substiute Parts

104315-1

TE Connectivity AMP ConnectorsIn Stock: 821104315-1 Datasheet

Current PartRFQ

1761609-3

TE Connectivity AMP ConnectorsIn Stock: 22631761609-3 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the 104315-1 is determined by strict equivalence across the following critical parameters:

Electrical Compatibility:

• Identical pitch spacing (0.100" / 2.54mm)
• Matching position count (10 positions, 2 rows)
• Equivalent current rating (1A per contact)
• Identical voltage rating (250VAC)
• Matching operating temperature range (-65°C ~ 105°C)

Mechanical Compatibility:

• Through-hole, right-angle mounting configuration
• Shrouded 4-wall design
• Latch lock/eject hook fastening mechanism
• Square contact shape
• Keying slot feature
• Black insulation color

Functional Compatibility:

• Male pin contact type
• Board to cable/wire connection style
• Solder termination method

The substitute part 1761609-3 maintains full compatibility across all critical electrical and mechanical parameters while offering active product status and improved regulatory compliance.

Parameter Comparison

Engineering Selection Recommendations

The TE Connectivity 1761609-3 serves as the direct substitute for the obsolete 104315-1 rectangular connector header. Selection of the substitute part is based on the following engineering criteria:

Product Status Transition: The 104315-1 carries obsolete status, requiring transition to an active equivalent. The 1761609-3 maintains active product status, ensuring long-term availability and continued manufacturer support.

Regulatory Compliance: The 1761609-3 achieves ROHS3 compliance, whereas the 104315-1 is RoHS non-compliant. This compliance improvement aligns with current regulatory requirements for electronic component procurement.

Material Flammability Certification: The 1761609-3 carries UL94 V-0 flammability rating, providing documented fire performance characteristics. The 104315-1 does not specify a flammability rating.

Electrical and Mechanical Equivalence: Both parts maintain identical electrical ratings (1A per contact, 250VAC), operating temperature range (-65°C ~ 105°C), and mechanical configuration (10-position, 2-row, 0.100" pitch, through-hole right-angle mounting with shrouded 4-wall design).

Minor Dimensional Variations: Contact length post dimension differs (0.135" versus 0.102"), and contact material composition varies (brass versus phosphor bronze). These variations remain within functional compatibility for standard board-to-cable/wire applications. Insulation material composition differs (polyamide glass-filled versus PBT), with PBT offering improved chemical resistance and dimensional stability.

Frequently Asked Questions (FAQ)

Q: Are the 104315-1 and 1761609-3 directly interchangeable?

A: Yes. Both connectors maintain identical pitch spacing (0.100" / 2.54mm), position count (10 positions, 2 rows), electrical ratings (1A per contact, 250VAC), operating temperature range (-65°C ~ 105°C), and mechanical mounting configuration (through-hole, right-angle, shrouded 4-wall with latch lock/eject hooks). The connectors are functionally equivalent for board-to-cable/wire applications.

Q: What are the key differences between these parts?

A: The primary differences are product status, regulatory compliance, and material composition. The 1761609-3 is active and ROHS3 compliant with UL94 V-0 flammability rating, whereas the 104315-1 is obsolete and RoHS non-compliant. Contact material differs (phosphor bronze versus brass), and insulation material composition varies (PBT versus polyamide glass-filled). Contact post length is shorter on the 1761609-3 (0.102" versus 0.135").

Q: Does the shorter contact post length on the 1761609-3 affect compatibility?

A: The contact post length difference (0.102" versus 0.135") does not affect electrical or mechanical compatibility for standard through-hole solder termination applications. Both parts maintain equivalent mating contact length (0.237" versus 0.240") and insulation height (0.362" versus 0.360"), ensuring proper engagement with mating connectors.

Q: What is the packaging difference?

A: The 1761609-3 is supplied in tube packaging, whereas the 104315-1 packaging is not specified. Tube packaging provides organized component storage and handling for production environments.

Q: Why should I transition from 104315-1 to 1761609-3?

A: Transition is necessary due to the obsolete status of the 104315-1. The 1761609-3 provides active product availability, improved regulatory compliance (ROHS3), documented flammability certification (UL94 V-0), and higher inventory availability (2196 pcs versus 776 pcs). All electrical and mechanical specifications remain equivalent.

Q: Are there any temperature or voltage limitations with the substitute part?

A: No. The 1761609-3 maintains identical operating temperature range (-65°C ~ 105°C) and voltage rating (250VAC) as the 104315-1. Current rating remains 1A per contact for both parts.

Q: Does the contact material change affect performance?

A: The contact material composition differs (phosphor bronze versus brass), but both materials maintain equivalent electrical conductivity and contact finish specifications (gold or gold-palladium mating surface with 30.0µin thickness). Phosphor bronze offers improved spring characteristics and wear resistance in cyclic mating applications.
