TE Connectivity AMP Connectors 104130-7 Equivalent & Substitute Parts

Part Overview

The TE Connectivity AMP Connectors 104130-7 is a rectangular connector header designed for through-hole, right-angle mounting applications. This connector features 40 positions arranged in 2 rows with 0.100" (2.54mm) pitch spacing, suitable for board-to-cable/wire interconnections. The part is classified as obsolete, necessitating identification of active equivalent and substitute components for ongoing design and procurement requirements. The connector utilizes shrouded 4-wall construction with latch lock/eject hook fastening and solder termination.

Substiute Parts

104130-7

TE Connectivity AMP ConnectorsIn Stock: 1114104130-7 Datasheet

Current PartRFQ

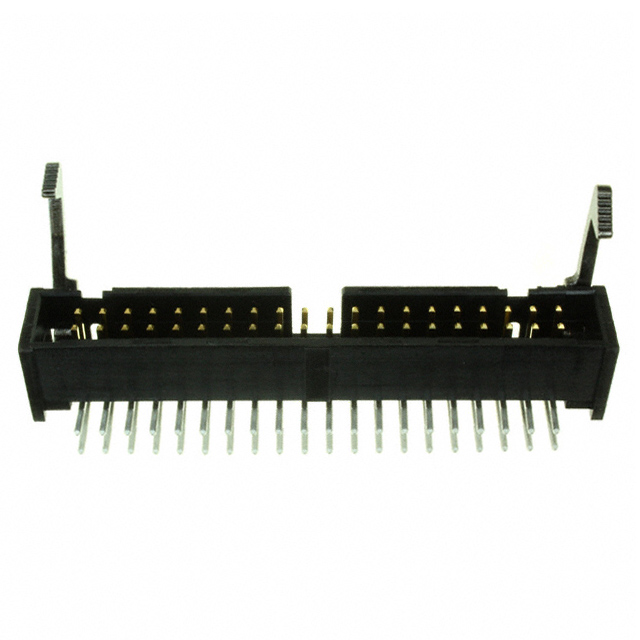

1-1761607-3

TE Connectivity AMP ConnectorsIn Stock: 17211-1761607-3 Datasheet

DirectRFQ

1-1761608-5

TE Connectivity AMP ConnectorsIn Stock: 17161-1761608-5 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the 104130-7 is determined by the following critical parameters: connector type (header), contact type (male pin), mating pitch (0.100"/2.54mm), row spacing (0.100"/2.54mm), mounting configuration (through hole), shrouding style (shrouded 4-wall), fastening mechanism (latch lock/eject hooks), current rating (1A per contact), and voltage rating (250VAC). Operating temperature range (-65°C to 105°C) and termination method (solder) are also essential compatibility criteria.

The substitute parts identified are categorized as follows:

Direct Equivalent (1-1761607-3): Maintains identical electrical and mechanical specifications with the main part, including 40 positions, 2 rows, 0.100" pitch, right-angle through-hole mounting, shrouded 4-wall construction, and latch lock/eject hooks. This part is active and RoHS compliant, offering a direct replacement path.

Similar Configuration (1-1761608-5): Shares core electrical and mechanical parameters but differs in position count (50 positions versus 40) and mounting orientation (vertical through-hole versus right-angle). This part is suitable only when the increased position count and vertical mounting are compatible with the application requirements.

Parameter Comparison

Engineering Selection Recommendations

For Direct Replacement (1-1761607-3): This part is the primary substitute for the obsolete 104130-7. It maintains identical electrical and mechanical specifications, including 40 positions, 2 rows, 0.100" pitch, right-angle through-hole mounting, and shrouded 4-wall construction. The 1-1761607-3 is active and RoHS compliant, providing regulatory compliance advantages over the original obsolete part. Material flammability rating (UL94 V-0) is specified for this substitute. This part is suitable for direct board-level substitution without design modification.

For Position Count Expansion (1-1761608-5): This part is applicable only when design requirements permit increased position count (50 versus 40) and vertical through-hole mounting orientation (versus right-angle). The 1-1761608-5 maintains identical pitch spacing, current rating, voltage rating, and operating temperature range. This part is active and ROHS3 compliant with UL94 V-0 flammability rating. Selection of this part requires verification that the increased position count and vertical mounting orientation are compatible with the application's physical and electrical layout.

Frequently Asked Questions (FAQ)

Q: Can the 1-1761607-3 be used as a direct replacement for the 104130-7?

A: Yes. The 1-1761607-3 maintains identical specifications for connector type, contact type, position count (40), row configuration (2 rows), mating pitch (0.100"/2.54mm), row spacing (0.100"/2.54mm), mounting type (through hole, right angle), shrouding (shrouded 4-wall), fastening type (latch lock/eject hooks), current rating (1A per contact), voltage rating (250VAC), and operating temperature range (-65°C to 105°C). The 1-1761607-3 is active and RoHS compliant, providing a direct substitution path.

Q: What are the key differences between the 104130-7 and 1-1761607-3?

A: The primary differences are product status (obsolete versus active), RoHS compliance (non-compliant versus compliant), material flammability rating (not specified versus UL94 V-0), contact material (brass versus phosphor bronze), insulation material (polyamide/nylon versus polybutylene terephthalate), and contact finish on the post (tin-lead versus tin). Electrical and mechanical parameters remain identical.

Q: When should the 1-1761608-5 be considered instead of the 1-1761607-3?

A: The 1-1761608-5 should be selected only when the application requires 50 positions instead of 40 and vertical through-hole mounting instead of right-angle mounting. All other electrical parameters (pitch, current rating, voltage rating, operating temperature) remain compatible. This part is not a direct replacement but an alternative configuration for different layout requirements.

Q: Are there any compatibility concerns with the contact material differences between the main part and substitutes?

A: The 104130-7 uses brass contact material, while both substitutes use phosphor bronze. Both materials are suitable for the specified current rating (1A per contact) and voltage rating (250VAC). The contact finish specifications (gold or gold-palladium for mating surfaces) are identical across all three parts.

Q: What is the significance of the RoHS compliance difference?

A: The 104130-7 is RoHS non-compliant, while the 1-1761607-3 is RoHS compliant and the 1-1761608-5 is ROHS3 compliant. For applications subject to RoHS regulations or customer requirements, the substitute parts provide regulatory compliance advantages. The 1-1761607-3 is the preferred choice for RoHS-regulated applications requiring a direct 40-position replacement.

Q: Do the fastening type variations (standard, long, short) affect compatibility?

A: The fastening type variations (latch lock/eject hooks, latch lock/eject hooks long, latch lock/eject hooks short) indicate different hook lengths. The 104130-7 uses standard hooks, the 1-1761607-3 uses long hooks, and the 1-1761608-5 uses short hooks. These variations affect the mechanical engagement characteristics but do not alter the electrical compatibility or mating pitch specifications. Selection should be based on the mating connector's hook length requirements.

Q: Are the insulation height differences significant?

A: The insulation heights vary slightly: 104130-7 (0.360"/9.14mm), 1-1761607-3 (0.362"/9.20mm), and 1-1761608-5 (0.404"/10.26mm). These differences reflect the different contact lengths and row configurations. For the 1-1761607-3, the minimal difference (0.002") is not significant for most applications. The 1-1761608-5's increased height (0.044" difference) is due to the 50-position configuration and should be verified against available board space.
