TE Connectivity Erni 104087 Equivalent & Substitute Parts

Part Overview

The TE Connectivity Erni 104087 is a 200-position receptacle connector with 2mm press-fit termination, designed for backplane applications. This connector features female sockets configured for board edge, through-hole mounting in a right-angle orientation. The part is classified as obsolete, necessitating identification of active equivalent components to maintain design continuity and ensure ongoing component availability for production and field service applications.

Substiute Parts

104087

TE Connectivity ErniIn Stock: 806104087 Datasheet

Current PartRFQ

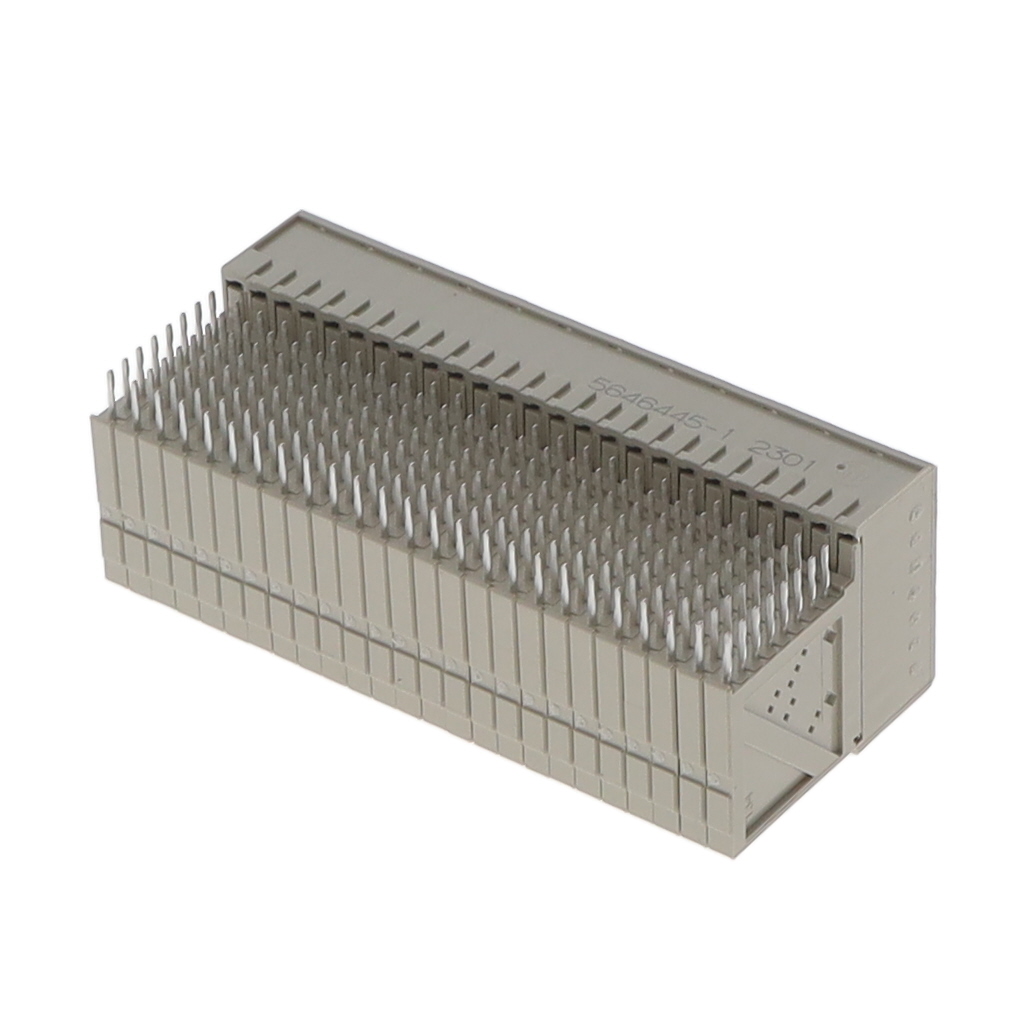

5646445-1

TE Connectivity AMP ConnectorsIn Stock: 15415646445-1 Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the TE Connectivity Erni 104087 is determined by strict equivalence across the following critical parameters:

Mandatory Matching Parameters:

• Number of Positions: 200
• Pitch: 0.079" (2.00mm)
• Connector Type: Receptacle, Female Sockets
• Termination Method: Press-Fit
• Mounting Configuration: Board Edge, Through Hole, Right Angle

The substitute part TE Connectivity AMP Connectors 5646445-1 satisfies all mandatory parameters, establishing functional and mechanical interchangeability. Both connectors are designed for identical board-level applications with matching electrical and physical interfaces.

Parameter Comparison

Engineering Selection Recommendations

Primary Substitute: TE Connectivity AMP Connectors 5646445-1

The 5646445-1 is the manufacturer-recommended substitute for the obsolete 104087. This component maintains full mechanical and electrical compatibility across all critical interface parameters. The substitute is classified as active product status, ensuring long-term availability and supply chain continuity.

Compliance Advantages:

• RoHS Compliant status provides regulatory alignment for current manufacturing standards
• EAR99 ECCN classification maintains export compliance consistency
• MSL Rating 1 (Unlimited) eliminates moisture sensitivity constraints during storage and handling

Electrical Performance: The substitute part provides specified electrical ratings (1.5 A current, 750Vrms voltage) and operating temperature range (-55°C ~ 125°C) suitable for backplane connector applications. Gold contact finish ensures reliable signal integrity and long-term contact resistance stability.

Supply Availability: Current inventory of 1473 units of the 5646445-1 supports immediate procurement requirements. Tube packaging format maintains component integrity during distribution and assembly operations.

Frequently Asked Questions (FAQ)

Q: Can the 5646445-1 directly replace the 104087 in existing designs?

A: Yes. Both connectors share identical specifications for number of positions (200), pitch (2.00mm), connector type (receptacle, female sockets), termination method (press-fit), and mounting configuration (board edge, through hole, right angle). No design modifications are required for mechanical or electrical interface compatibility.

Q: What is the significance of the obsolete status for the 104087?

A: Obsolete status indicates the 104087 is no longer manufactured and will not be restocked. The 5646445-1 is the active equivalent maintained in current production by TE Connectivity, ensuring continued availability for new builds and field service replacements.

Q: Are there packaging differences between the two parts?

A: The 104087 packaging is not specified in available documentation. The 5646445-1 is supplied in Tube packaging, which is standard for high-position-count connectors and provides protection during storage and automated assembly processes.

Q: Does the 5646445-1 meet current regulatory requirements?

A: Yes. The 5646445-1 is RoHS Compliant and carries EAR99 ECCN classification, meeting current environmental and export compliance standards. The 104087 regulatory status is not specified due to its obsolete classification.

Q: What is the MSL rating and why does it matter?

A: The 5646445-1 carries MSL Rating 1 (Unlimited), indicating no moisture sensitivity constraints. Components can be stored indefinitely without desiccant packaging or time-limited shelf life restrictions, simplifying inventory management and reducing handling costs.

Q: Are the electrical performance specifications identical?

A: The 104087 electrical specifications are not documented. The 5646445-1 provides specified ratings: 1.5 A current capacity, 750Vrms voltage rating, and -55°C to 125°C operating temperature range. These ratings are appropriate for standard backplane connector applications.

Q: What contact finish is used on the 5646445-1?

A: The 5646445-1 features gold contact finish with 30.0µin (0.76µm) thickness, providing corrosion resistance and reliable electrical contact over the connector's operational life.
