TE Connectivity 104074-5 Rectangular Connector Header – Equivalent & Substitute Parts

Part Overview

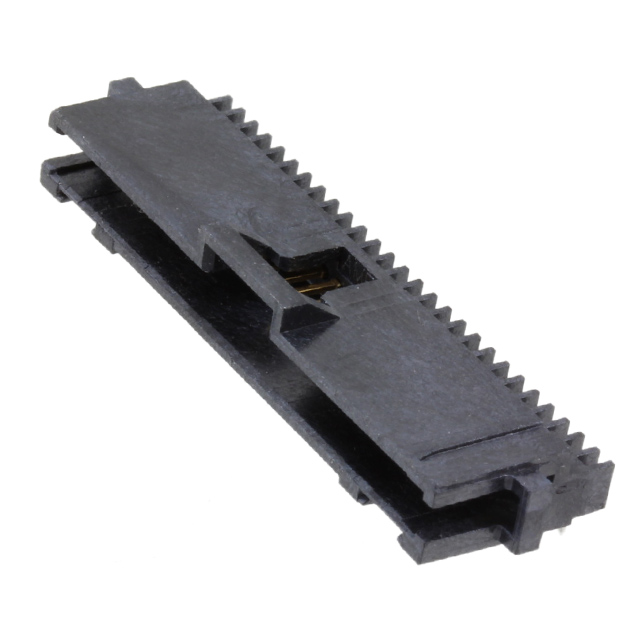

The TE Connectivity 104074-5 is a rectangular connector header designed for through-hole, right-angle board-to-board or cable applications. This 25-position, single-row header operates within the AMPMODU System 50 series and is classified as an active product. The connector features shrouded 2-wall construction with solder termination and latch holder fastening. Identifying equivalent and substitute parts is necessary when addressing inventory constraints, compliance requirements, or specific application needs while maintaining electrical and mechanical compatibility.

Substiute Parts

104074-5

TE Connectivity AMP ConnectorsIn Stock: 1007104074-5 Datasheet

Current PartRFQ

5-104074-5

TE Connectivity AMP ConnectorsIn Stock: 25515-104074-5 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the TE Connectivity 104074-5 is determined by strict equivalence across the following critical parameters:

Electrical Compatibility Parameters:

• Pitch - Mating: 0.050" (1.27mm)
• Number of Positions: 25
• Number of Rows: 1
• Contact Type: Male Pin
• Voltage Rating: 30VAC
• Operating Temperature Range: -65°C ~ 105°C

Mechanical Compatibility Parameters:

• Connector Type: Header
• Mounting Type: Through Hole, Right Angle
• Termination: Solder
• Shrouding: Shrouded - 2 Wall
• Fastening Type: Latch Holder
• Contact Shape: Circular
• Insulation Material: Thermoplastic

Material & Certification Parameters:

• Contact Material: Copper Alloy
• Material Flammability Rating: UL94 V-0
• Series: AMPMODU System 50

The substitute part 5-104074-5 meets all critical electrical and mechanical parameters. Differences in RoHS compliance status and contact finish post material (Tin versus Tin-Lead) do not affect functional interchangeability within the specified application scope.

Parameter Comparison

Engineering Selection Recommendations

Primary Substitute: 5-104074-5

The part 5-104074-5 is a direct functional equivalent to 104074-5 across all critical electrical and mechanical parameters. Both parts are active products manufactured by TE Connectivity within the AMPMODU System 50 series.

Compliance Consideration:

The substitute part 5-104074-5 carries RoHS Compliant status, whereas the main part 104074-5 is RoHS non-compliant. For applications subject to RoHS directives or customer specifications requiring RoHS compliance, the substitute part 5-104074-5 is the appropriate selection.

Contact Finish Post Difference:

The main part features Tin-Lead contact finish on the post, while the substitute features Tin contact finish. Both maintain identical thickness specifications (150.0µin / 3.81µm) and are compatible with solder termination processes. This difference does not affect electrical or mechanical interchangeability.

Inventory Availability:

The substitute part 5-104074-5 maintains higher inventory availability (2449 Pcs) compared to the main part (921 Pcs), supporting supply chain continuity.

Frequently Asked Questions (FAQ)

Q: Can 5-104074-5 be used as a direct replacement for 104074-5 in existing designs?

A: Yes. The parts are electrically and mechanically equivalent across all critical parameters including pitch, position count, mounting type, termination method, and operating specifications. Both maintain identical contact geometry, shrouding configuration, and fastening mechanisms.

Q: What is the significance of the RoHS compliance difference?

A: The substitute part 5-104074-5 is RoHS Compliant, while 104074-5 is RoHS non-compliant. RoHS compliance restricts the use of hazardous substances in electrical and electronic equipment. Applications subject to RoHS directives or customer requirements should specify the RoHS Compliant variant (5-104074-5).

Q: Does the Tin versus Tin-Lead contact finish post affect solderability?

A: Both contact finishes are compatible with solder termination processes. The Tin finish on the substitute part meets the same thickness specification (150.0µin / 3.81µm) as the Tin-Lead finish on the main part. Soldering performance is equivalent.

Q: Are the mating contact specifications identical?

A: Yes. Both parts feature gold-plated mating contacts with identical thickness (30.0µin / 0.76µm) and contact length (0.125" / 3.18mm). Mating performance and signal integrity are equivalent.

Q: What is the operating temperature range for both parts?

A: Both 104074-5 and 5-104074-5 operate across the identical temperature range of -65°C to 105°C, supporting automotive, medical, and telecommunications applications.

Q: Are both parts suitable for through-hole PCB assembly?

A: Yes. Both parts feature through-hole, right-angle mounting with solder termination. They are compatible with standard PCB assembly processes and board guide features.

Q: What is the pitch specification for these connectors?

A: Both parts feature a 0.050" (1.27mm) mating pitch with 25 positions in a single row. This pitch specification determines compatibility with mating receptacles and cable connectors.

Q: Is there a difference in packaging between the two parts?

A: Both parts are supplied in tube packaging. Packaging format is identical.

Q: What applications are these connectors rated for?

A: Both parts are rated for Automotive, General Purpose, Medical, and Telecommunications applications. The UL94 V-0 flammability rating and operating temperature range support these application categories.

Q: What is the voltage rating for these connectors?

A: Both parts carry a 30VAC voltage rating, establishing the maximum voltage specification for circuit design and safety compliance.
