TE Connectivity AMP Connectors 103080-4 Equivalent & Substitute Parts

Part Overview

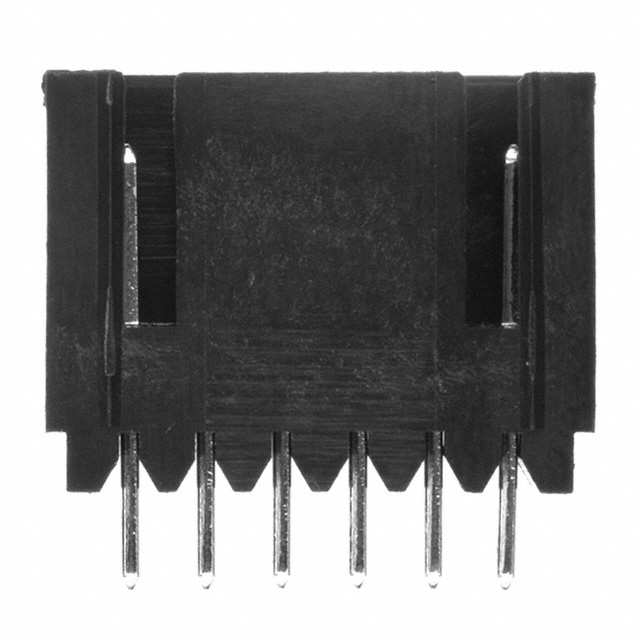

The TE Connectivity AMP Connectors 103080-4 is a rectangular connector header designed for through-hole mounting applications. This connector features a vertical orientation with 6 positions at 0.100" (2.54mm) pitch, shrouded 4-wall design, and solder termination. The part is classified as obsolete, necessitating identification of active equivalent alternatives for ongoing procurement and new design implementations.

Substiute Parts

103080-4

TE Connectivity AMP ConnectorsIn Stock: 907103080-4 Datasheet

Current PartRFQ

5-103080-4

TE Connectivity AMP ConnectorsIn Stock: 30385-103080-4 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the obsolete 103080-4 is determined by strict equivalence across the following critical parameters:

Electrical Compatibility Parameters:

• Contact Type: Male Pin
• Number of Positions: 6
• Pitch - Mating: 0.100" (2.54mm)
• Current Rating: 3A
• Operating Temperature Range: -65°C ~ 105°C

Mechanical Compatibility Parameters:

• Connector Type: Header
• Mounting Type: Through Hole
• Shrouding: Shrouded - 4 Wall
• Termination: Solder
• Contact Length - Mating: 0.240" (6.10mm)
• Contact Length - Post: 0.130" (3.30mm)
• Overall Contact Length: 0.589" (14.96mm)
• Insulation Height: 0.549" (13.94mm)
• Contact Shape: Square
• Contact Material: Brass
• Insulation Material: Thermoplastic
• Material Flammability Rating: UL94 V-0

Series Compatibility:

• Series: AMPMODU Mod II

The substitute part 5-103080-4 maintains identical electrical and mechanical specifications while offering active product status and improved compliance certifications.

Parameter Comparison

Engineering Selection Recommendations

The substitute part 5-103080-4 is the direct equivalent for the obsolete 103080-4. Both parts share identical electrical and mechanical specifications within the AMPMODU Mod II series, ensuring functional interchangeability in board-to-board and cable connector applications.

Primary Advantages of 5-103080-4:

The substitute part maintains active product status, ensuring continued availability and supply chain reliability. The part is RoHS Compliant, meeting current environmental and regulatory requirements for new designs and manufacturing processes. The contact finish has been updated from Tin-Lead to Tin, reflecting modern manufacturing standards while maintaining electrical performance characteristics.

Compliance Considerations:

Both parts carry UL94 V-0 material flammability rating and operate across the identical temperature range of -65°C to 105°C. The substitute part's RoHS compliance status provides regulatory advantage for applications subject to environmental directives and industry standards.

Packaging Difference:

The substitute part 5-103080-4 is supplied in Tube packaging, whereas the original part packaging specification was not provided. This packaging difference does not affect electrical or mechanical compatibility and relates solely to procurement and handling procedures.

Frequently Asked Questions (FAQ)

Q: Can 5-103080-4 be used as a direct replacement for 103080-4 in existing designs?

A: Yes. The 5-103080-4 maintains identical electrical and mechanical specifications across all critical parameters including contact configuration, pitch, mounting type, termination method, and operating temperature range. The parts are functionally interchangeable.

Q: What is the difference between the contact finishes in these two parts?

A: The original 103080-4 uses Tin-Lead contact finish, while the substitute 5-103080-4 uses Tin contact finish. Both finishes provide equivalent electrical conductivity and contact reliability at the specified 3A current rating. The Tin finish in the substitute part reflects current manufacturing standards and RoHS compliance requirements.

Q: Why is the original 103080-4 listed as obsolete?

A: Product obsolescence typically results from manufacturer discontinuation decisions. The active substitute 5-103080-4 provides continued access to equivalent connector functionality within the AMPMODU Mod II series.

Q: Are there any compatibility issues with PCB layouts designed for 103080-4?

A: No. The 5-103080-4 maintains identical mechanical dimensions, including contact length, insulation height, and overall connector geometry. PCB footprints and mounting hole patterns designed for 103080-4 are directly compatible with 5-103080-4.

Q: What is the significance of RoHS compliance in the substitute part?

A: RoHS compliance indicates the part meets Restriction of Hazardous Substances directives, restricting lead and other hazardous materials. This compliance status is required for many applications and regulatory jurisdictions, making the substitute part suitable for modern manufacturing and export requirements.

Q: Does the Tube packaging of 5-103080-4 affect its performance?

A: No. Packaging format relates to procurement, storage, and handling procedures only. It does not affect the electrical or mechanical performance of the connector itself.

Q: Are both parts suitable for the same current and temperature applications?

A: Yes. Both parts carry identical 3A current rating and -65°C to 105°C operating temperature range, ensuring equivalent performance in thermal and electrical stress conditions.
