Equivalent & Substitute Parts for Honeywell 102TL2218-3 Toggle Switch

Part Overview

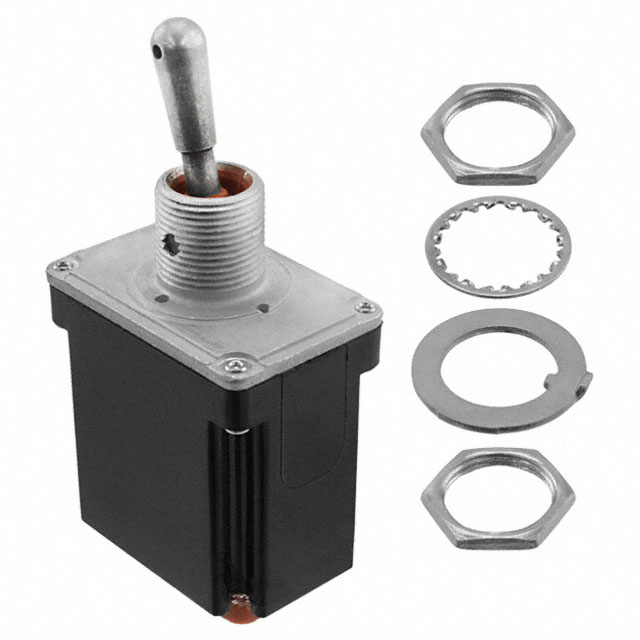

The Honeywell 102TL2218-3 is a DPDT (Double Pole Double Throw) toggle switch rated for 7.5A at 115V AC with panel mount configuration. This component is classified as obsolete, making identification of functionally equivalent alternatives necessary for ongoing system maintenance and new design implementations. The switch features a non-illuminated standard round actuator with environment sealed ingress protection and operates across a temperature range of -65°C to 71°C.

Substiute Parts

102TL2218-3

Honeywell Sensing and Productivity SolutionsIn Stock: 686102TL2218-3 Datasheet

Current PartRFQ

32NT91-3

Honeywell Sensing and Productivity SolutionsIn Stock: 108932NT91-3 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the 102TL2218-3 is determined by the following critical parameters that must align between the original and substitute component:

Circuit Configuration Match: Both the main part and substitute must maintain DPDT topology to preserve electrical switching functionality.

Switch Function Match: The On-On function must be preserved to ensure identical operational behavior in the application circuit.

Mounting Compatibility: Panel mount configuration with matching panel cutout dimensions (12.40mm circular) and bushing thread (15/32-32) ensures mechanical interchangeability without panel modification.

Electrical Rating Compatibility: The substitute part must meet or exceed the original voltage and current requirements. The 102TL2218-3 operates at 7.5A/115V AC and 30V DC. A substitute with higher current or voltage ratings remains compatible for this application.

Environmental Sealing: The environment sealed ingress protection of the original part establishes a baseline requirement for sealed operation.

Actuator Geometry: Standard round actuator type with similar actuator length ensures consistent user interface and mechanical fit within the panel assembly.

The Honeywell 32NT91-3 satisfies these substitution criteria through matching circuit configuration, switch function, mounting type, panel cutout dimensions, bushing thread, and actuator type.

Parameter Comparison

Engineering Selection Recommendations

Electrical Performance: The 32NT91-3 substitute provides electrical ratings that exceed the original 102TL2218-3 specification (15A at 125V AC versus 7.5A at 115V AC). This higher rating ensures the substitute operates within safe margins for the original application circuit.

Mechanical Compatibility: Panel cutout dimensions and bushing thread specifications are identical, enabling direct mechanical installation without panel modification. The actuator length difference of 0.25mm is negligible for standard panel mount applications.

Environmental Protection: The 32NT91-3 provides enhanced ingress protection (IP67/IP68) compared to the environment sealed rating of the original part, offering improved protection in sealed or wet environments.

Temperature Operating Range: The substitute operates from -40°C to 71°C, which is narrower than the original -65°C to 71°C range. Applications requiring operation below -40°C cannot use this substitute.

Termination Consideration: The original part uses IWTS termination while the substitute uses Quick Connect 0.250" (6.3mm) termination. Circuit board or wiring harness modifications are required to accommodate this difference.

Product Status and Availability: The 32NT91-3 is classified as active product with 1045 units in stock, ensuring long-term availability compared to the obsolete 102TL2218-3 status.

Compliance: Both parts maintain RoHS compliance and carry identical ECCN and HTSUS classifications.

Frequently Asked Questions (FAQ)

Q: Can the 32NT91-3 directly replace the 102TL2218-3 without any modifications?

A: Mechanical panel mount compatibility is direct due to identical cutout dimensions and bushing threads. However, termination style differs (IWTS versus Quick Connect 0.250"), requiring wiring harness or circuit board modifications.

Q: What is the primary reason for substitution?

A: The 102TL2218-3 is obsolete. The 32NT91-3 is an active product from the same manufacturer with equivalent circuit functionality and superior electrical ratings.

Q: Are the electrical ratings compatible?

A: Yes. The 32NT91-3 is rated for 15A at 125V AC, exceeding the original 7.5A at 115V AC requirement. The application circuit operates safely within these higher ratings.

Q: Does the substitute work in low-temperature environments?

A: The 32NT91-3 operates from -40°C to 71°C. If your application requires operation below -40°C, this substitute is not suitable. The original part operates to -65°C.

Q: What is the difference in ingress protection?

A: The original part is environment sealed. The substitute provides IP67/IP68 rating (dust tight and waterproof), offering enhanced protection in sealed or wet conditions.

Q: How do the actuator lengths compare?

A: The original actuator is 17.27mm; the substitute is 17.02mm. This 0.25mm difference is negligible for standard panel mount applications and does not affect user interface or mechanical fit.

Q: What termination changes are required?

A: The original uses IWTS termination; the substitute uses Quick Connect 0.250" (6.3mm) termination. Wiring connections must be adapted to the quick connect terminals.

Q: Are both parts RoHS compliant?

A: Yes, both the 102TL2218-3 and 32NT91-3 are RoHS compliant with identical ECCN (EAR99) and HTSUS (8536.50.9065) classifications.
