3M 10280-6212VC D-Sub 80 Position Receptacle Connector

Part Overview

The 3M 10280-6212VC is an 80 position receptacle connector in the 102 Mini D Ribbon (MDR) series, designed for panel mount through-hole solder termination applications. This connector features outer shroud contacts, shielded design, and gold-plated contacts. The part is currently obsolete, making identification of suitable alternatives necessary for ongoing system support and new design implementations.

Substiute Parts

10280-6212VC

3MIn Stock: 112310280-6212VC Datasheet

Current PartRFQ

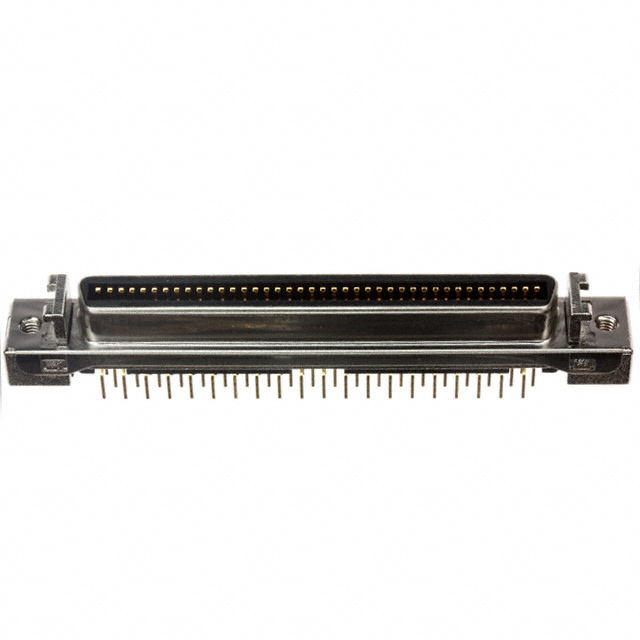

10280-6212PC

3MIn Stock: 117310280-6212PC Datasheet

DirectRFQ

DX20BM-80S(50)

Hirose Electric Co LtdIn Stock: 928DX20BM-80S(50) Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the 10280-6212VC is determined by the following critical parameters: 80 position count, 2-row configuration, receptacle connector type, panel mount through-hole mounting, solder termination, outer shroud contact style, shielded design, gold contact finish, and M2.6 flange specification. All identified substitutes maintain these core electrical and mechanical characteristics, ensuring functional compatibility in applications originally designed for the 10280-6212VC.

Parameter Comparison

Engineering Selection Recommendations

The 10280-6212PC represents the direct equivalent substitute, maintaining identical electrical and mechanical specifications while offering active product status and RoHS compliance. This part is the primary selection for applications requiring 3M 102 series compatibility with modern regulatory requirements.

The DX20BM-80S(50) from Hirose Electric Co Ltd provides an alternative cross-manufacturer substitute with equivalent core functionality. This part operates within the same electrical and mechanical parameters, though it is classified as Miniature High Density (HD) type and includes a female screwlock mating feature. Selection of the Hirose alternative is appropriate when cross-manufacturer sourcing is acceptable and ROHS3 compliance is required.

Frequently Asked Questions (FAQ)

Q: Can the 10280-6212PC directly replace the obsolete 10280-6212VC?

A: Yes. The 10280-6212PC maintains identical position count (80), row configuration (2), mounting type (panel mount through-hole), termination method (solder), connector style (outer shroud contacts), contact finish (gold), and flange specification (M2.6). The primary difference is product status (active vs. obsolete) and RoHS compliance status.

Q: What are the key differences between the 3M 10280-6212PC and the Hirose DX20BM-80S(50)?

A: Both parts share the same 80-position, 2-row receptacle configuration with panel mount through-hole solder termination and gold contact finish. The Hirose part is designated as Miniature High Density (HD) type and features a female screwlock mating mechanism, whereas the 3M part uses a standard housing/shell flange. Both maintain M2.6 flange specifications and unlimited moisture sensitivity rating.

Q: Are there packaging differences between these substitutes?

A: The 10280-6212VC and 10280-6212PC differ in packaging designation (VC vs. PC suffix), with the 10280-6212PC supplied in bulk packaging. The Hirose DX20BM-80S(50) is supplied in tray packaging. Packaging differences do not affect electrical or mechanical compatibility.

Q: Which substitute should be selected for new designs?

A: Selection depends on manufacturer preference and regulatory requirements. The 10280-6212PC is recommended for designs requiring 3M component continuity and RoHS compliance. The Hirose DX20BM-80S(50) is suitable when cross-manufacturer sourcing is acceptable and ROHS3 compliance is specified.
