TE Connectivity 102617-4 Rectangular Connector Header Equivalent & Substitute Parts

Part Overview

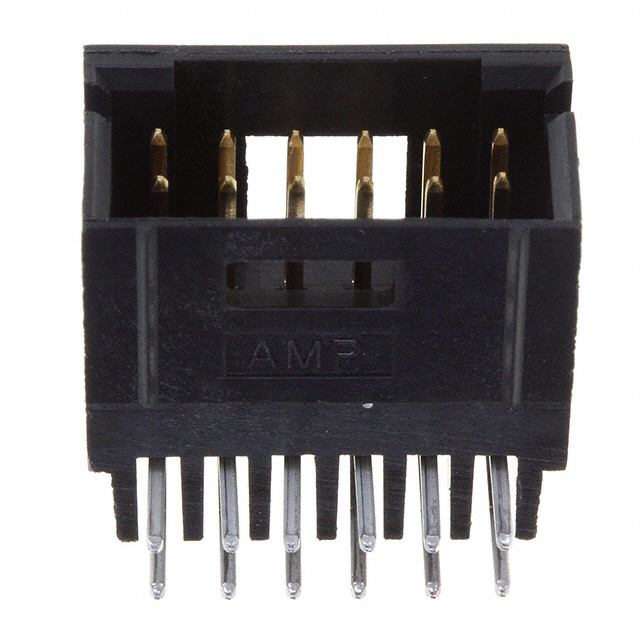

The TE Connectivity 102617-4 is a rectangular connector header manufactured under the AMPMODU Mod II series. This through-hole, right-angle header connector features 12 positions arranged in 2 rows with 0.100" (2.54mm) pitch spacing. The connector is designed for board-to-board or cable applications with shrouded 4-wall construction and solder termination. The part maintains active product status with 658 units currently in stock. Substitute parts are identified when equivalent electrical and mechanical parameters are maintained across the connector interface, allowing for component interchangeability in applications where specific compliance or availability requirements necessitate alternative sourcing.

Substiute Parts

102617-4

TE Connectivity AMP ConnectorsIn Stock: 761102617-4 Datasheet

Current PartRFQ

5-102617-4

TE Connectivity AMP ConnectorsIn Stock: 17715-102617-4 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the TE Connectivity 102617-4 rectangular connector header is determined by strict equivalence across all critical electrical and mechanical parameters. The substitute part 5-102617-4 qualifies as a direct equivalent based on the following criteria:

Matching Parameters (Substitution Basis):

• Connector type, contact type, and gender (Header, Male Pin)
• Position count and row configuration (12 positions, 2 rows)
• Mating pitch and row spacing (0.100" / 2.54mm)
• Mounting orientation and method (Through Hole, Right Angle)
• Shrouding configuration (Shrouded - 4 Wall)
• Termination method (Solder)
• Contact dimensions and geometry (0.318" mating length, 0.135" post length, square shape)
• Insulation specifications (0.400" height, thermoplastic, black color)
• Operating temperature range (-65°C ~ 105°C)
• Current rating (3A)
• Flammability compliance (UL94 V-0)
• Series designation (AMPMODU Mod II)

Allowable Variation:

• Contact finish on post termination: Tin-Lead (102617-4) versus Tin (5-102617-4)
• RoHS compliance status: Not applicable (102617-4) versus ROHS3 Compliant (5-102617-4)
• REACH status: REACH Affected (102617-4) versus REACH Unaffected (5-102617-4)

These variations do not affect connector mating compatibility or functional performance in standard applications.

Parameter Comparison

Engineering Selection Recommendations

Both the TE Connectivity 102617-4 and 5-102617-4 rectangular connector headers maintain active product status and are suitable for direct substitution in applications requiring 12-position, 2-row through-hole right-angle headers with 2.54mm pitch spacing.

Primary Part (102617-4): This configuration features tin-lead post termination and carries REACH Affected status. Selection is appropriate for applications where tin-lead soldering processes are established and REACH compliance documentation is not a constraint.

Substitute Part (5-102617-4): This variant incorporates tin post termination and holds ROHS3 Compliant and REACH Unaffected certifications. Selection is appropriate for applications requiring enhanced environmental compliance, lead-free manufacturing processes, or REACH-compliant supply chain documentation. This part also maintains higher inventory availability at 1736 units.

Both parts share identical electrical performance characteristics, mechanical dimensions, and thermal operating ranges. The choice between them is determined by compliance requirements, soldering process specifications, and supply chain constraints rather than functional performance differences.

Frequently Asked Questions (FAQ)

Q: Can the 5-102617-4 be used as a direct replacement for the 102617-4 in existing designs?

A: Yes. The 5-102617-4 is electrically and mechanically equivalent to the 102617-4. All critical parameters including position count, pitch spacing, contact dimensions, current rating, and operating temperature range are identical. The connector will mate with the same receptacle and perform identically in the circuit.

Q: What is the difference between tin-lead and tin post finishes on these connectors?

A: The post finish refers to the solder termination end of the connector. Tin-lead (102617-4) is a traditional solder composition, while tin (5-102617-4) is a lead-free alternative. Both finishes provide equivalent electrical conductivity and solder joint reliability. The selection depends on manufacturing process compatibility and regulatory requirements.

Q: Why does the 5-102617-4 have ROHS3 Compliant status while the 102617-4 does not?

A: The 102617-4 carries "Not applicable" RoHS status, indicating it was manufactured under specifications predating or outside RoHS3 requirements. The 5-102617-4 was manufactured to meet ROHS3 Compliant standards, making it suitable for applications with explicit RoHS compliance mandates. Both parts function identically in applications.

Q: What does REACH Affected versus REACH Unaffected mean for these connectors?

A: REACH (Registration, Evaluation, Authorization and Restriction of Chemicals) is a European Union chemical safety regulation. The 102617-4 is listed as REACH Affected, meaning it contains substances subject to REACH documentation requirements. The 5-102617-4 is REACH Unaffected, indicating it does not contain restricted substances requiring REACH compliance documentation. Selection depends on supply chain and regulatory requirements.

Q: Are there any packaging or inventory considerations when choosing between these parts?

A: Both parts are supplied in tray packaging. The 5-102617-4 maintains higher inventory availability at 1736 units compared to 658 units for the 102617-4. For applications with extended lead time requirements or high-volume procurement, the 5-102617-4 may offer supply chain advantages.

Q: Will the 12-position 2-row configuration work with existing 2.54mm pitch receptacles?

A: Yes. Both the 102617-4 and 5-102617-4 headers are designed to mate with standard AMPMODU Mod II series receptacles and other compatible 2.54mm pitch connectors. The 0.100" (2.54mm) mating pitch and row spacing are industry-standard dimensions for this connector class.

Q: What is the maximum current each connector can safely carry?

A: Both connectors are rated for 3A continuous current. This rating applies to the entire connector assembly and is based on contact material, contact geometry, and thermal characteristics. Individual pin current capacity is determined by dividing the total rating by the number of active pins in the application.

Q: Can these connectors be used in high-temperature applications?

A: Yes. Both the 102617-4 and 5-102617-4 are rated for continuous operation across the -65°C to 105°C temperature range. The thermoplastic insulation material and phosphor bronze contact material support this full operating range. Applications requiring operation outside this range require alternative connector specifications.
