TE Connectivity AMP Connectors 102523-6 Equivalent & Substitute Parts

Part Overview

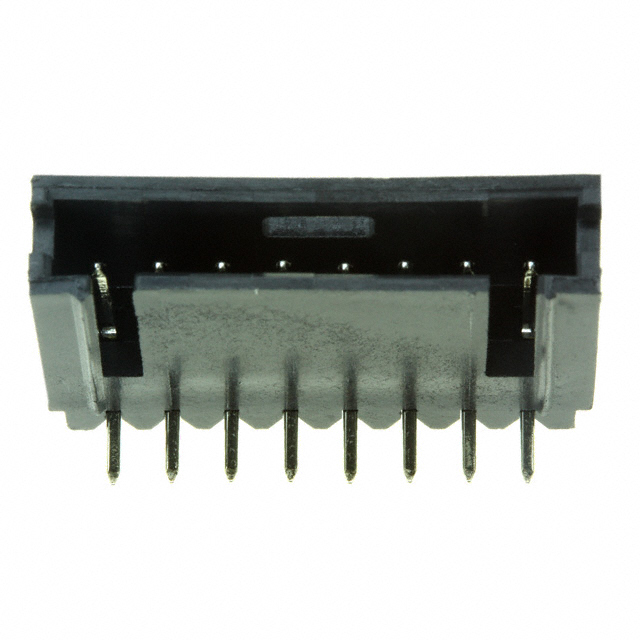

The TE Connectivity AMP Connectors 102523-6 is a rectangular connector header designed for through-hole, right-angle mounting applications. This connector features 8 positions with 0.100" (2.54mm) pitch spacing and is part of the AMPMODU Mod II series. The part is classified as obsolete, necessitating identification of active equivalent alternatives for ongoing procurement and design requirements. Substitute parts maintain functional compatibility while offering updated product status and compliance certifications.

Substiute Parts

102523-6

TE Connectivity AMP ConnectorsIn Stock: 1054102523-6 Datasheet

Current PartRFQ

5-102523-6

TE Connectivity AMP ConnectorsIn Stock: 8205-102523-6 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the 102523-6 with the 5-102523-6 is based on strict equivalence of the following critical parameters:

Electrical Compatibility:

• Identical connector type (Header)
• Identical contact type (Male Pin)
• Identical number of positions (8)
• Identical pitch spacing (0.100" / 2.54mm)
• Identical current rating (3A)
• Identical operating temperature range (-65°C ~ 105°C)

Mechanical Compatibility:

• Identical mounting type (Through Hole, Right Angle)
• Identical shrouding configuration (Shrouded - 4 Wall)
• Identical contact length - mating (0.240" / 6.10mm)
• Identical contact length - post (0.110" / 2.79mm)
• Identical insulation height (0.214" / 5.44mm)
• Identical contact shape (Square)
• Identical contact material (Phosphor Bronze)
• Identical insulation material (Thermoplastic)
• Identical insulation color (Black)

Material & Compliance:

• Identical material flammability rating (UL94 V-0)
• Identical moisture sensitivity level (MSL 1 - Unlimited)

The primary distinction between these parts is product status and contact finish specification, with the substitute part offering active product status and RoHS3 compliance.

Parameter Comparison

Engineering Selection Recommendations

The 5-102523-6 serves as the direct active equivalent to the obsolete 102523-6. Selection of the substitute part is supported by the following engineering considerations:

Product Status: The 5-102523-6 maintains active product status, ensuring continued availability and manufacturer support. The 102523-6 is classified as obsolete, limiting future procurement options.

Compliance & Certifications: The 5-102523-6 carries RoHS3 compliance certification, meeting current regulatory requirements for electronic components in many jurisdictions. The 102523-6 lists RoHS status as not applicable, reflecting its obsolete classification.

Functional Equivalence: All critical electrical and mechanical parameters are identical between the two parts, including connector type, contact configuration, pitch spacing, current rating, operating temperature range, and physical dimensions.

Contact Finish Specification: The substitute part specifies Tin contact finish, while the main part specifies Tin-Lead. Both maintain identical contact finish thickness (100.0µin / 2.54µm) and contact material (Phosphor Bronze). The Tin finish of the substitute part aligns with modern lead-free manufacturing standards.

For new designs and ongoing procurement, the 5-102523-6 is the appropriate selection. For legacy systems currently utilizing the 102523-6, the substitute part provides direct functional replacement with enhanced compliance status.

Frequently Asked Questions (FAQ)

Q: Are the 102523-6 and 5-102523-6 mechanically interchangeable?

A: Yes. Both parts share identical mounting type (Through Hole, Right Angle), shrouding configuration (Shrouded - 4 Wall), contact lengths, insulation height, and all other mechanical dimensions. Direct substitution is supported without PCB redesign.

Q: What is the difference in contact finish between these parts?

A: The 102523-6 specifies Tin-Lead contact finish, while the 5-102523-6 specifies Tin contact finish. Both maintain identical finish thickness (100.0µin / 2.54µm). The Tin finish of the substitute part reflects current manufacturing standards and lead-free compliance requirements.

Q: Can the 5-102523-6 handle the same electrical load as the 102523-6?

A: Yes. Both parts carry identical current rating (3A) and operate across the same temperature range (-65°C ~ 105°C). Electrical performance is equivalent.

Q: Why is the 102523-6 listed as obsolete?

A: Product obsolescence reflects manufacturer discontinuation decisions. The 5-102523-6 provides the active equivalent, ensuring continued component availability and compliance with current standards.

Q: What is the significance of RoHS3 compliance on the 5-102523-6?

A: RoHS3 compliance indicates the substitute part meets current European Union and equivalent regulatory requirements restricting hazardous substances in electrical and electronic equipment. This certification is important for products destined for regulated markets.

Q: Are there packaging differences between these parts?

A: The 5-102523-6 is specified with Tube packaging, while the 102523-6 packaging is not specified in available documentation. Packaging differences do not affect functional compatibility but may influence handling, storage, and ordering considerations.

Q: Can I use the 5-102523-6 in existing designs currently specified for the 102523-6?

A: Yes. The substitute part maintains full electrical and mechanical compatibility with designs specified for the 102523-6. No design modifications are required for direct substitution.

Q: What is the moisture sensitivity level for both parts?

A: Both parts carry MSL 1 (Unlimited), indicating no moisture sensitivity restrictions. Standard handling and storage procedures apply without special moisture control requirements.
