TE Connectivity 102398-8 Rectangular Connector Equivalent & Substitute Parts

Part Overview

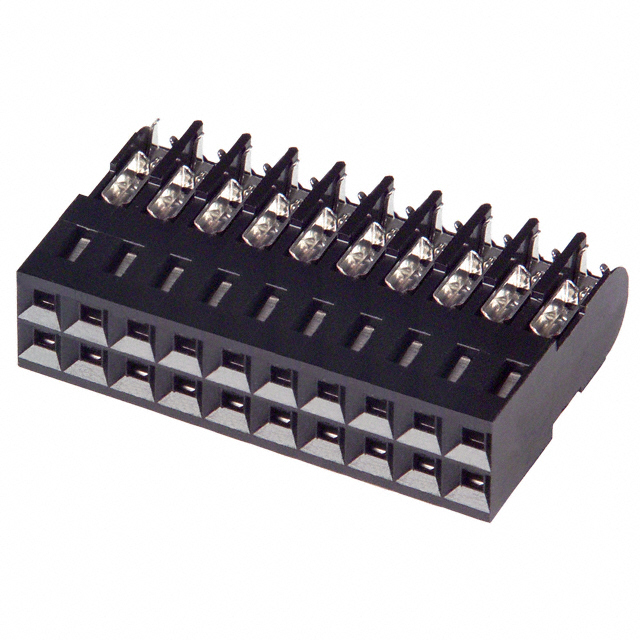

The TE Connectivity 102398-8 is a 20-position rectangular receptacle connector from the AMPMODU MT series, designed for IDC (Insulation Displacement Contact) termination with 22-26 AWG wire. This connector features gold-plated female socket contacts, a closed-end design, and free-hanging in-line mounting configuration. The part is currently active in production status with full RoHS3 compliance and unlimited moisture sensitivity rating. Substitute parts are identified to provide alternative sourcing options while maintaining identical electrical and mechanical specifications for applications requiring this connector type.

Substiute Parts

102398-8

TE Connectivity AMP ConnectorsIn Stock: 827102398-8 Datasheet

Current PartRFQ

5-102398-8

TE Connectivity AMP ConnectorsIn Stock: 10935-102398-8 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for rectangular connectors in the AMPMODU MT series is determined by strict equivalence across the following critical parameters:

Electrical Compatibility Parameters:

• Number of positions (20)
• Contact type (Female Socket)
• Pitch spacing (0.100" / 2.54mm)
• Row configuration (2 rows at 0.100" spacing)
• Contact finish specification (Gold at 30.0µin thickness)
• Wire gauge compatibility (22-26 AWG)

Mechanical Compatibility Parameters:

• Connector type (Rectangular Receptacle)
• Cable termination method (IDC)
• Mounting configuration (Free Hanging In-Line)
• Closed-end design
• Color specification (Black)

Compliance Parameters:

• RoHS3 compliance status
• Moisture Sensitivity Level (MSL 1)
• Product status (Active)

The substitute part 5-102398-8 maintains identical specifications across all electrical and mechanical parameters, ensuring direct interchangeability in applications designed for the 102398-8 connector.

Parameter Comparison

Engineering Selection Recommendations

Both the 102398-8 and 5-102398-8 are active production parts manufactured by TE Connectivity with full RoHS3 compliance and identical electrical and mechanical specifications. Selection between these parts is based on availability and supply chain considerations rather than technical differentiation.

The 102398-8 maintains 734 units in current inventory, while the 5-102398-8 variant maintains 990 units in stock. Both parts carry MSL 1 rating, indicating unlimited shelf life under standard storage conditions. The primary distinction between these part numbers relates to REACH compliance status and HTSUS classification, which may affect regulatory documentation and tariff considerations depending on end-use application and destination market.

For applications requiring this 20-position rectangular receptacle connector with IDC termination, gold-plated contacts, and 22-26 AWG wire compatibility, either part number provides equivalent electrical and mechanical performance.

Frequently Asked Questions (FAQ)

Q: Are the 102398-8 and 5-102398-8 connectors electrically interchangeable?

A: Yes. Both connectors feature identical electrical specifications including 20 positions, female socket contacts, 0.100" pitch, gold plating at 30.0µin thickness, and 22-26 AWG wire gauge compatibility. They are direct electrical equivalents.

Q: Can these connectors be used interchangeably in existing PCB designs?

A: Yes. Both connectors share identical mechanical dimensions, mounting configuration (free-hanging in-line), and closed-end design. They mount identically and require no design modifications for substitution.

Q: What is the significance of the different part numbers 102398-8 versus 5-102398-8?

A: Both parts are from the AMPMODU MT series and share the same base product number (102398). The numerical prefix variation reflects different manufacturing or distribution channels within TE Connectivity's product line. All electrical and mechanical specifications remain identical.

Q: Are both parts RoHS3 compliant?

A: Yes. Both the 102398-8 and 5-102398-8 carry full RoHS3 compliance certification, meeting all applicable environmental and hazardous substance restrictions.

Q: What wire types are compatible with these IDC connectors?

A: Both connectors accept discrete individual wires or ribbon cable in the 22-26 AWG gauge range. IDC termination does not require stripping; the connector pierces the insulation during assembly.

Q: What is the moisture sensitivity rating for these connectors?

A: Both parts carry MSL 1 (Unlimited) rating, indicating no moisture sensitivity restrictions. These connectors can be stored and handled under standard environmental conditions without special precautions.

Q: Are there any compliance or regulatory differences between these part numbers?

A: Both parts carry EAR99 ECCN classification. The 102398-8 is REACH Affected while the 5-102398-8 is REACH Unaffected. HTSUS classifications differ (8536.69.4051 versus 8536.69.8000), which may affect tariff treatment and regulatory documentation depending on destination market and end-use application.
