TE Connectivity 102202-6 Rectangular Connector Header Equivalent & Substitute Parts

Part Overview

The TE Connectivity 102202-6 is a shrouded rectangular connector header designed for through-hole mounting applications. This 9-position, single-row connector operates at 3A current rating with a 0.100" (2.54mm) pitch and features gold-plated mating contacts with tin-lead post finish. The part is classified as obsolete, necessitating identification of active equivalent components for new designs and ongoing production requirements. The substitute part 5-102202-6 provides functional continuity while offering improved compliance status.

Substiute Parts

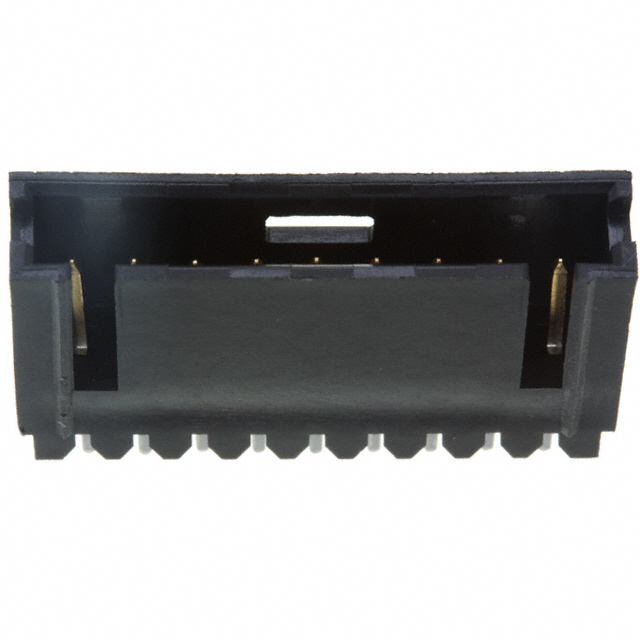

102202-6

TE Connectivity AMP ConnectorsIn Stock: 1097102202-6 Datasheet

Current PartRFQ

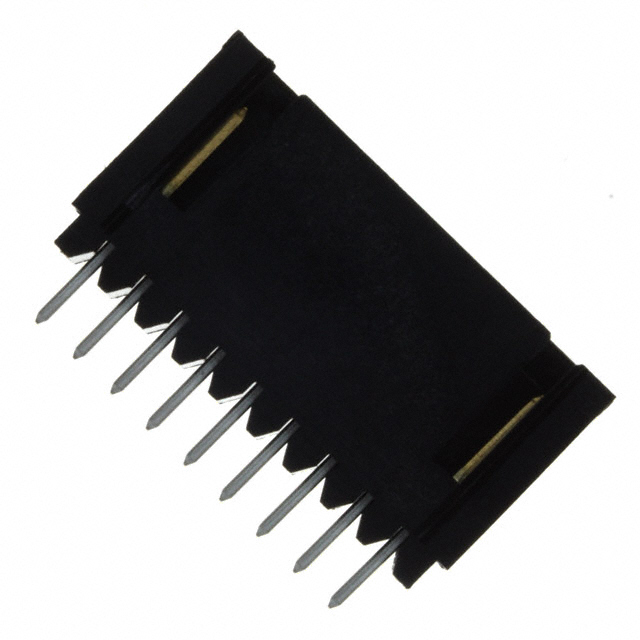

5-102202-6

TE Connectivity AMP ConnectorsIn Stock: 9005-102202-6 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution between the main part 102202-6 and the equivalent part 5-102202-6 is based on strict electrical and mechanical parameter alignment. Both components share identical specifications across all critical functional parameters: 9-position single-row configuration, 0.100" (2.54mm) mating pitch, through-hole mounting, shrouded 4-wall design, 3A current rating, and -65°C to 105°C operating temperature range. Contact geometry, mating contact length (0.240"), post length (0.130"), and overall contact length (0.589") are identical. Both employ gold-plated mating contacts with brass material and thermoplastic insulation rated UL94 V-0.

The primary distinction between these parts is product status and compliance certification. The 102202-6 is classified as obsolete with RoHS non-compliant status, while 5-102202-6 is active with ROHS3 compliance. Additionally, the contact finish on the post differs: 102202-6 specifies tin-lead finish, while 5-102202-6 specifies tin finish. Both maintain identical contact finish thickness specifications at 100.0µin (2.54µm) for post finish.

Parameter Comparison

Engineering Selection Recommendations

The 5-102202-6 is the direct active equivalent for the obsolete 102202-6 connector header. Selection of 5-102202-6 is appropriate for new designs and production applications requiring current product status and regulatory compliance. The substitute part maintains full mechanical and electrical compatibility with identical contact geometry, pitch spacing, current rating, and temperature operating range.

The primary advantage of 5-102202-6 is ROHS3 compliance status, which satisfies current regulatory requirements for electronic component procurement in many jurisdictions. The obsolete status of 102202-6 restricts its use to legacy system maintenance or repair applications where original component specifications are mandated.

The contact finish specification difference on the post (tin-lead versus tin) reflects modern manufacturing standards. Both finishes maintain equivalent contact finish thickness at 100.0µin (2.54µm) and are suitable for solder termination applications. The tin finish in 5-102202-6 aligns with lead-free soldering practices.

Frequently Asked Questions (FAQ)

Q: Are 102202-6 and 5-102202-6 mechanically interchangeable?

A: Yes. Both parts share identical mechanical specifications including 9-position single-row configuration, 0.100" (2.54mm) pitch, through-hole mounting, shrouded 4-wall design, and all contact dimensions (mating length 0.240", post length 0.130", overall length 0.589").

Q: What is the difference between the contact finishes on the post?

A: The 102202-6 specifies tin-lead post finish, while 5-102202-6 specifies tin post finish. Both maintain identical contact finish thickness at 100.0µin (2.54µm). The tin finish in 5-102202-6 reflects current manufacturing standards compatible with lead-free soldering processes.

Q: Why is 102202-6 classified as obsolete?

A: The 102202-6 is obsolete and has been superseded by the active equivalent 5-102202-6. New designs should specify 5-102202-6 to ensure ongoing availability and compliance with current regulatory standards.

Q: Does the packaging difference affect electrical performance?

A: No. The packaging difference (unspecified for 102202-6 versus tube for 5-102202-6) does not affect electrical or mechanical performance. Packaging is a logistics consideration for component handling and storage.

Q: Are both parts suitable for the same current and temperature applications?

A: Yes. Both parts are rated for 3A current and operate across the identical temperature range of -65°C to 105°C. Electrical performance specifications are equivalent.

Q: What is the significance of ROHS3 compliance in 5-102202-6?

A: ROHS3 compliance indicates that 5-102202-6 meets current Restriction of Hazardous Substances regulations, making it suitable for procurement in regulated markets. The 102202-6 is RoHS non-compliant and may not be acceptable for new product designs in jurisdictions with RoHS requirements.

Q: Can 102202-6 be used in new production designs?

A: No. The obsolete status of 102202-6 restricts its use to legacy system maintenance. New production designs should specify the active equivalent 5-102202-6 to ensure component availability and regulatory compliance.
