3M 10220-1210VE D-Sub Receptacle Connector - Equivalent & Substitute Parts

Part Overview

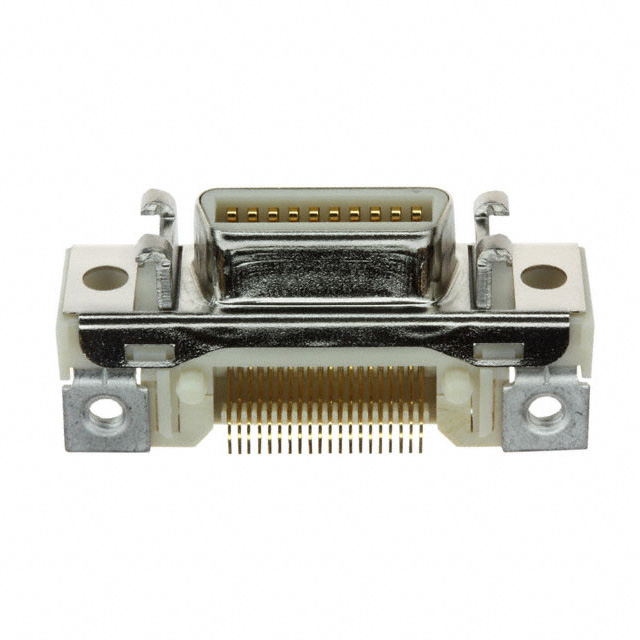

The 3M 10220-1210VE is a 20-position Mini D Ribbon (MDR) receptacle connector designed for surface mount, right-angle solder termination applications. This connector features an outer shroud contact design with board guide and shielding. The part is currently obsolete, making identification of functionally equivalent alternatives essential for ongoing system support and new design implementations.

Substiute Parts

10220-1210VE

3MIn Stock: 109310220-1210VE Datasheet

Current PartRFQ

10220-1210PE

3MIn Stock: 165610220-1210PE Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the 10220-1210VE is determined by strict equivalence across the following parameters:

• Manufacturer: 3M
• Series: 102, Mini D Ribbon (MDR)
• Connector Type: Receptacle
• Number of Positions: 20
• Number of Rows: 2
• Mounting Type: Surface Mount, Right Angle
• Termination: Solder
• Connector Style: Outer Shroud Contacts
• Flange Feature: Housing/Shell (M2.6)
• Shielding: Present

The 10220-1210PE meets all these criteria and is therefore a direct functional equivalent. Variations in contact finish thickness, packaging format, and product status do not affect electrical or mechanical compatibility in the connector interface.

Parameter Comparison

Engineering Selection Recommendations

The 10220-1210PE is the direct substitute for the obsolete 10220-1210VE. Both parts share identical electrical and mechanical interface specifications within the 3M 102 Mini D Ribbon series.

For new designs or system upgrades, the 10220-1210PE is the preferred selection due to its active product status and RoHS compliance. The contact finish thickness difference (30.0µin versus 20.0µin) does not affect connector performance or mating cycle life within standard application parameters.

For legacy system maintenance where the original 10220-1210VE is specified, the 10220-1210PE provides full functional compatibility without design modification.

Frequently Asked Questions (FAQ)

Q: Can the 10220-1210PE be used as a direct replacement for the 10220-1210VE?

A: Yes. Both connectors are 20-position Mini D Ribbon receptacles with identical mounting, termination, and interface specifications. The 10220-1210PE is electrically and mechanically compatible.

Q: What is the difference between "Board Guide" and "Board Lock" features?

A: Both features provide mechanical alignment during assembly. The specific implementation differs between the two parts, but both maintain the same connector interface and mounting footprint.

Q: Does the contact finish thickness difference affect performance?

A: No. Both 30.0µin and 20.0µin gold finishes meet industry standards for D-Sub connector applications and do not impact electrical conductivity or mating reliability.

Q: Why is the 10220-1210VE obsolete?

A: The 10220-1210PE supersedes it as the active product offering from 3M within the 102 series. The 10220-1210PE provides equivalent functionality with improved compliance status.

Q: What is the packaging difference?

A: The 10220-1210VE packaging format is not specified in available data. The 10220-1210PE is supplied in bulk packaging. Confirm packaging requirements with your procurement specification.

Q: Is the 10220-1210PE RoHS compliant?

A: Yes. The 10220-1210PE is RoHS compliant, whereas the 10220-1210VE is RoHS non-compliant. This is relevant for applications subject to RoHS regulations.
