TE Connectivity AMP Connectors 102155-8 Equivalent & Substitute Parts

Part Overview

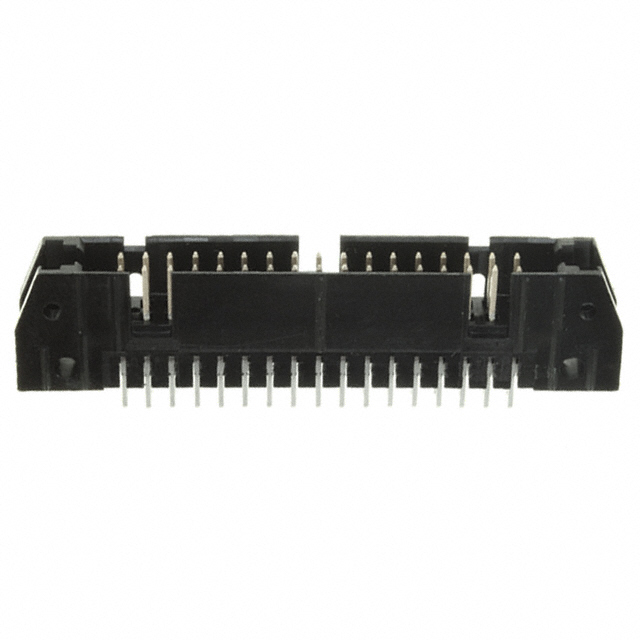

The TE Connectivity AMP Connectors 102155-8 is a rectangular connector header designed for through-hole mounting applications. This shrouded, 34-position connector operates at 0.100" (2.54mm) pitch and supports board-to-cable/wire connections with push-pull fastening. The part is classified as Active product status and is suitable for applications requiring reliable interconnection with 1A per contact current capacity and 250VAC voltage rating.

Substitute parts are identified to address packaging variations, compliance requirements, and inventory availability while maintaining electrical and mechanical compatibility.

Substiute Parts

102155-8

TE Connectivity AMP ConnectorsIn Stock: 1180102155-8 Datasheet

Current PartRFQ

5102155-8

TE Connectivity AMP ConnectorsIn Stock: 13835102155-8 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution between TE Connectivity AMP Connectors 102155-8 and 5102155-8 is determined by strict equivalence across the following critical parameters:

Electrical Compatibility Parameters:

• Contact Type: Male Pin (identical)
• Number of Positions: 34 (identical)
• Number of Rows: 2 (identical)
• Pitch - Mating: 0.100" (2.54mm) (identical)
• Row Spacing - Mating: 0.100" (2.54mm) (identical)
• Current Rating: 1A per Contact (identical)
• Voltage Rating: 250VAC (identical)
• Operating Temperature Range: -65°C ~ 105°C (identical)

Mechanical Compatibility Parameters:

• Connector Type: Header (identical)
• Mounting Type: Through Hole (identical)
• Shrouding: Shrouded - 4 Wall (identical)
• Fastening Type: Push-Pull (identical)
• Contact Length - Mating: 0.240" (6.10mm) (identical)
• Contact Length - Post: 0.155" (3.94mm) (identical)
• Overall Contact Length: 0.684" (17.37mm) (identical)
• Insulation Height: 0.549" (13.94mm) (identical)
• Contact Shape: Square (identical)
• Features: Keying Slot, Mounting Flange (identical)
• Material Flammability Rating: UL94 V-0 (identical)
• Insulation Color: Black (identical)

Packaging Variation: The primary difference between these parts is packaging format: 102155-8 is supplied in Tray packaging, while 5102155-8 is supplied in Bulk packaging. This distinction affects inventory management and procurement processes but does not alter functional or mechanical compatibility.

Compliance Variation: 102155-8 is RoHS non-compliant and REACH Affected. 5102155-8 is ROHS3 Compliant and REACH Unaffected. Selection between these parts depends on regulatory requirements of the end application.

Contact Finish Variation: 102155-8 specifies Tin-Lead finish on the post. 5102155-8 specifies Tin finish on the post. Both maintain identical contact finish specifications for mating surfaces (Gold or Gold-Palladium) and identical thickness specifications (100.0µin / 2.54µm).

Parameter Comparison

Engineering Selection Recommendations

For Applications with RoHS3 Compliance Requirements: Select TE Connectivity AMP Connectors 5102155-8. This part is ROHS3 Compliant and REACH Unaffected, meeting regulatory requirements for applications subject to European Union directives and equivalent international standards.

For Applications without RoHS3 Compliance Requirements: Either TE Connectivity AMP Connectors 102155-8 or 5102155-8 is suitable. Selection between these parts is determined by packaging requirements and inventory availability.

For Tray Packaging Requirements: Select TE Connectivity AMP Connectors 102155-8. This part is supplied in Tray packaging format.

For Bulk Packaging Requirements: Select TE Connectivity AMP Connectors 5102155-8. This part is supplied in Bulk packaging format.

Contact Finish Consideration: The post contact finish difference (Tin-Lead versus Tin) does not affect functional compatibility. Both finishes maintain identical thickness specifications and are suitable for solder termination applications. Selection between these finishes is determined by application-specific soldering process requirements and environmental exposure conditions.

Both parts maintain identical electrical performance characteristics, mechanical dimensions, and thermal operating ranges. Both are Active product status from TE Connectivity AMP Connectors and are suitable for board-to-cable/wire interconnection applications requiring 34-position, 2-row through-hole headers with 0.100" (2.54mm) pitch.

Frequently Asked Questions (FAQ)

Q: Are TE Connectivity AMP Connectors 102155-8 and 5102155-8 electrically interchangeable?

A: Yes. Both parts are electrically interchangeable. They share identical contact type (Male Pin), number of positions (34), pitch (0.100" / 2.54mm), current rating (1A per Contact), voltage rating (250VAC), and operating temperature range (-65°C ~ 105°C).

Q: What is the primary difference between these two parts?

A: The primary differences are packaging format and regulatory compliance status. 102155-8 is supplied in Tray packaging and is RoHS non-compliant. 5102155-8 is supplied in Bulk packaging and is ROHS3 Compliant. Both parts are mechanically and electrically identical.

Q: Can I use 5102155-8 as a direct replacement for 102155-8 in my application?

A: Yes, provided your application does not require Tray packaging specifically. If your application requires RoHS3 compliance, 5102155-8 is the appropriate selection. If your application has no RoHS3 requirement, either part is suitable.

Q: What is the difference between Tin-Lead and Tin post contact finishes?

A: Both finishes are suitable for solder termination applications and maintain identical thickness specifications (100.0µin / 2.54µm). The selection between these finishes is determined by soldering process compatibility and environmental exposure requirements specific to your application.

Q: Are both parts suitable for through-hole PCB mounting?

A: Yes. Both parts are designed for through-hole mounting with identical mounting specifications, including contact length, insulation height, and overall dimensions.

Q: What is the significance of the AMP-Latch series designation?

A: AMP-Latch is the product series designation from TE Connectivity AMP Connectors. Both 102155-8 and 5102155-8 belong to this series and share identical series-level specifications.

Q: Do both parts include keying and mounting flange features?

A: Yes. Both parts include identical features: Keying Slot and Mounting Flange. These features ensure proper connector orientation and secure board-level mounting.

Q: What is the Moisture Sensitivity Level (MSL) for these parts?

A: Both parts have MSL 1 (Unlimited), indicating no moisture sensitivity restrictions for storage and handling.

Q: Are there any temperature-related limitations for these connectors?

A: Both parts operate across the identical temperature range of -65°C ~ 105°C. No temperature-related limitations exist between these parts.

Q: What is the significance of the UL94 V-0 flammability rating?

A: UL94 V-0 is the material flammability rating for the insulation material. Both parts meet this specification, indicating compliance with UL94 vertical flame test requirements at the V-0 level.
